Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg Multi-layer TU-883 PCB

Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg Multi-layer TU-883 PCB

  • Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB
  • Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB
  • Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB
  • Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB
Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB
Product Details:
Place of Origin: China
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-508-V3.2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 9.99-99.99 per piece
Packaging Details: Vacuum
Delivery Time: 10 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Number Of Layers: 4 Glass Epoxy: TU-883
Final Foil External: 1.0oz Final Height Of PCB: 0.4mm ±0.1
Surface Finish: Immersion Gold (16.5%) 2 Micoinch Over 100 Microinch Nickel Solder Mask Color: Green
Colour Of Component Legend: White Test: 100% Electrical Test Prior Shipment

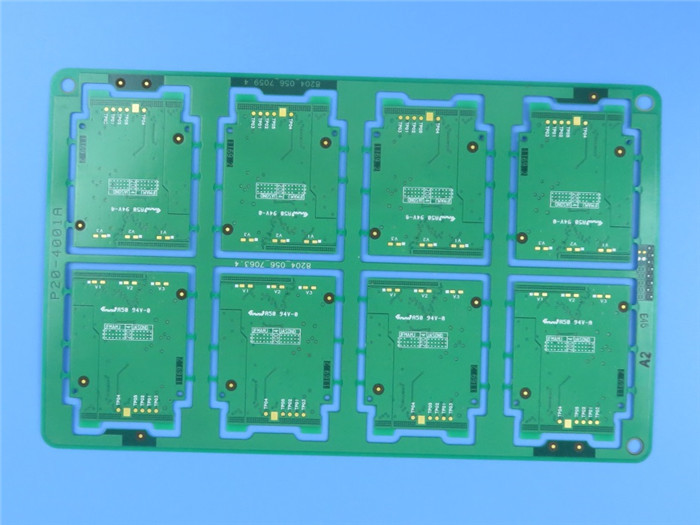

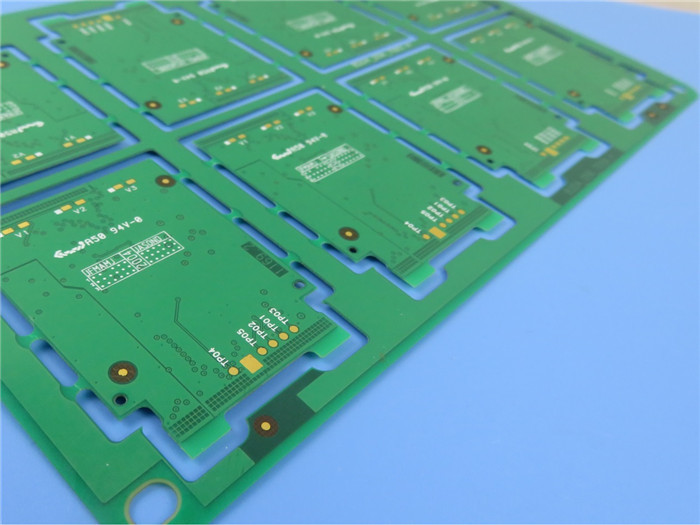

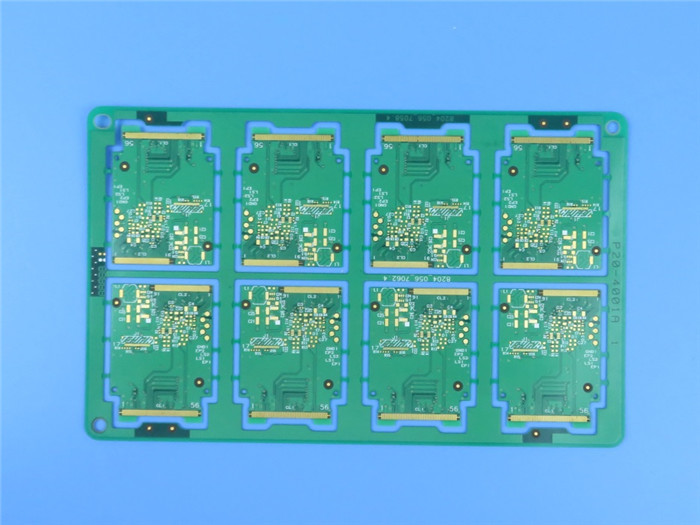

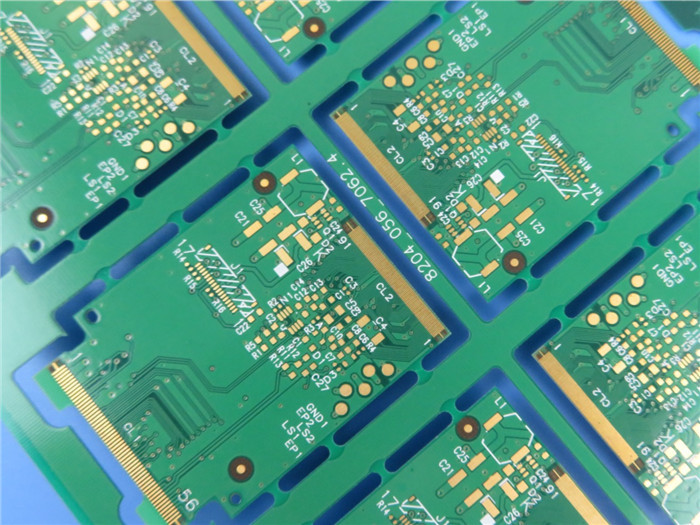

Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg Multi-layer TU-883 PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

ThunderClad 2 ( TU-883 ) is a very low loss category material based on a high performance resin. This material is reinforced with regular woven E-glass and designed with very low dielectric constant and dissipation factor resin system for high speed low loss, radio frequency and wireless applications. ThunderClad 2 material is suitable for environmental protection lead free process and also compatible with FR-4 processes. ThunderClad 2 laminates also exhibit excellent moisture resistance, improved CTE, superior chemical resistance, thermal stability and CAF resistance.



Applications

Radio frequency

Backplane, High performance computing

Line cards, Storage

Servers, Telecom, Base station, Office Routers



Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB 0



Performance and Processing Advantages

Excellent electrical properties

Dielectric constant less than 4.0

Dissipation factor less than 0.005

Stable and flat Dk/Df performance over frequency and temperature

Compatible with modified FR-4 processes

Excellent moisture resistance and Lead Free reflow process compatible

Improved z-axis thermal expansion

Anti-CAF capability

Excellent through-hole and soldering reliability

Halogen Free



Our PCB Capabilities (TU-883)

PCB Material: High Temperature Resin
Designation: TU-883
Dielectric constant: 3.60 at 1GHz
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm)
PCB thickness: 0.5mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion Silver etc..
Technology: HDI, Via in pad, Impedance Control, Blind via/Buried via, Edge Plating, BGA, Countsunk Holes etc.



Typical Properties of TU-883

  Typical Values Test Condition SPEC
Thermal
Tg (DMA) 220 °C
Tg (TMA) 170 °C E-2/105+des N/A
Td (TGA) 420 °C
CTE z-axis α1 35 ppm/°C Pre-Tg < 60 ppm/°C
CTE z-axis α2 240 ppm/°C Post-Tg < 300 ppm/°C
CTE z-axis 2.50% 50 to 260°C < 3.0%
Thermal Stress, Solder Float, 288°C > 60 sec A > 10 sec
T-260 > 60 min   > 30 min
T-288 > 60 min E-2/105+des > 15 min
T-300 > 60 min
Flammability 94V-0 E-24/125+des 94V-0
Electrical
Permittivity (RC63%)
1GHz (SPC method) 3.60
5GHz (SPC method) 3.58 C-24/23/50 N/A
10GHz (SPC method) 3.57
Loss Tangent (RC63%)
1GHz (SPC method) 0.0030
5GHz (SPC method) 0.0037 C-24/23/50 N/A
10GHz (SPC method) 0.0046
Volume Resistivity > 1010 MΩ•cm C-96/35/90 > 106 MΩ•cm
Surface Resistivity > 108 MΩ C-96/35/90 > 104 MΩ
Electric Strength > 40 KV/mm - > 30 KV/mm
Dielectric Breakdown Voltage > 50 KV - > 40 KV
Mechanical
Young’s Modulus
Warp Direction 28 GPa A N/A
Fill Direction 26 GPa
Flexural Strength
Lengthwise > 60,000 psi A > 60,000 psi
Crosswise > 50,000 psi A > 50,000 psi
Peel Strength, 1.0 oz. Cu foil 4~6 lb/in A > 4 lb/in
Water Absorption 0.08% E-1/105+des+D-24/23 < 0.8 %



Low Loss Printed Circuit Board (PCB) on TU-883 Substrate and TU-883P Prepreg  Multi-layer TU-883 PCB 1
