Multilayer High Frequancy PCB Board Rogers 5-Layer PCB Board Bulit On 20mil RO4003C
  • name
  • name

Multilayer High Frequancy PCB Board Rogers 5-Layer PCB Board Bulit On 20mil RO4003C

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-XXXX-V1.26
Number Of Layers:
1 Layer, 2 Layer, Multilayer, Hybrid Type (Mixed)
Glass Epoxy:
RO4003C Rogers
Final Foil:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Final Heig1.0-5.0mmht Of PCB:
10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)
Surface Finish:
Bare Copper, HASL, ENIG, Silver, OSP,etc.
Solder Mask Color:
Green, Black, Blue, Yellow, Red Etc.
Colour Of Component Legend:
Green, Black, Blue, Yellow, Red Etc.
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description

Multilayer High Frequancy PCB Board Rogers 5-Layer PCB Board Bulit On 20mil RO4003C



Hi Everyone,

Today, we're going to talk about 5-layer high frequency PCB made on Rogers RO4003C.

5 layer PCB is fabricated on 3 cores of RO4003C and etched 1 layer copper off to achieve 5 layers.



Multilayer High Frequancy PCB Board Rogers 5-Layer PCB Board Bulit On 20mil RO4003C 0

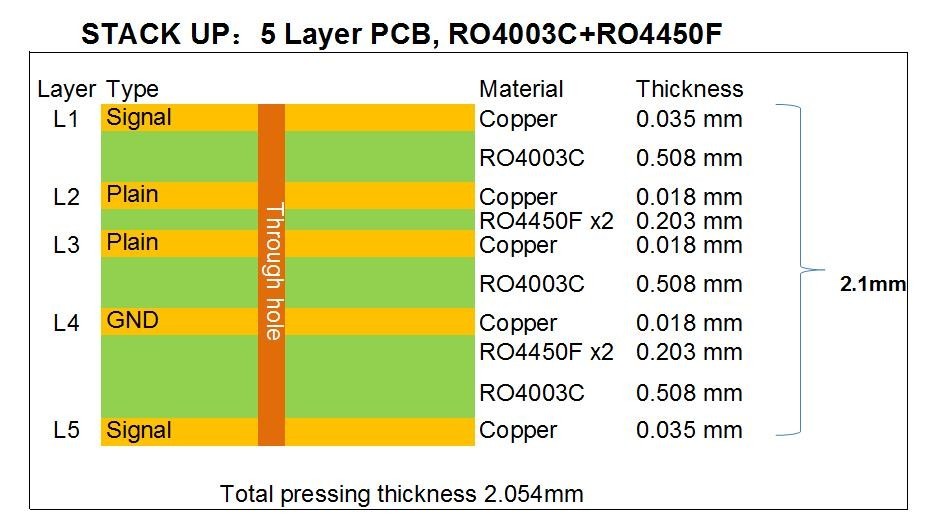

Viewing from the stack up, we can see 3 sheets of 20 mil cores achieve the basic layer structure, 2 layers of bondply bond the 3 cores which result in 5 layer board.

Copper weight in inner-layer is half ounce, outer-layer 1 ounce.

Multilayer High Frequancy PCB Board Rogers 5-Layer PCB Board Bulit On 20mil RO4003C 1

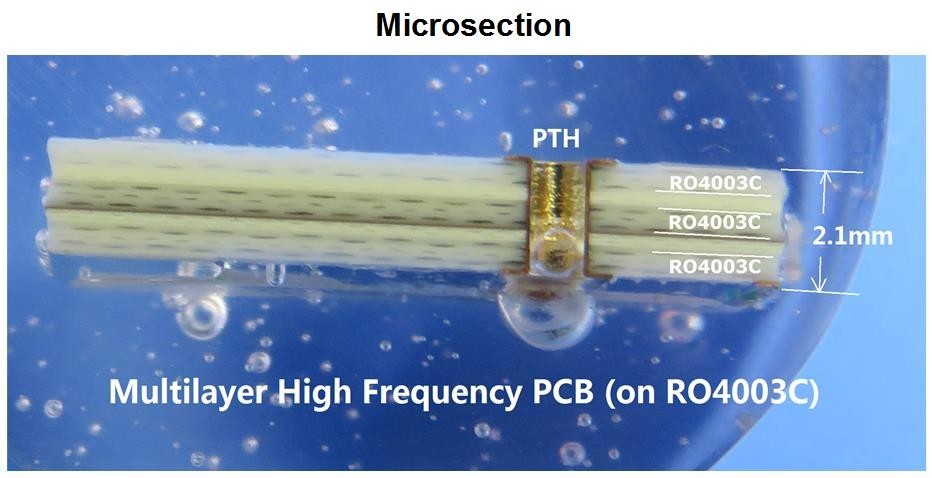

This is the picture of microsection, which can more intuitively reflect the structure of the board.

No solder mask is applied on the surface, pads are immersion gold.



Actually the stack up of multilayer PCBs can be done in many different ways according to the different requirements or applications for controlled impedances, signal transmission etc. There’re many types cores for our designer to choose in RO4003C laminates, such as 8mil, 12mil, 16mil, 20mil etc.



PCB Capability
PCB Type: High Frequency PCB
Rogers Material:

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.AD450, AD600, TC350 etc.
Taconic Material:

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, TLF-35, RF-60A etc.
Wangling Material:

PTFE F4B DK2.2, DK2.65
　
Solder mask: Green, Red, Blue, Black, Yellow
Layer count: 2 Layer, 4 Layer, Multilayer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 1.0-5.0mm
PCB size: ≤400mm X 500mm
Surface finish: HASL, ENIG, Immersion tin, OSP
　 　



We have a variety of high frequency materials for customers to choose from, the main are Rogers 4000 series, 3000 series, 5000 series and 6000 series, Taconic TLX series, TLY series etc. and Chinese F4B series etc.





If you're interested in, please feel free to contact us.

Thank you for your reading.
