4 Layer RF Circuit Board On Rogers 60mil RO4350B and 10mil RO4350B with Back Drill for UHF Coupler
  • name
  • name
  • name

4 Layer RF Circuit Board On Rogers 60mil RO4350B and 10mil RO4350B with Back Drill for UHF Coupler

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-0066-V1.11
Number Of Layers:
4
Glass Epoxy:
RO4350B 60mil + RO4350B 10mil + RO4450F 4mil
Final Foil:
1.0
Final Height Of PCB:
2.1 Mm ±10%
Surface Finish:
Immersion Gold
Solder Mask Color:
Green
Colour Of Component Legend:
White
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description

4 Layer RF Circuit Board On Rogers 60mil RO4350B and 10mil RO4350B with Back Drill for UHF Coupler

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)



Hello Everyone,

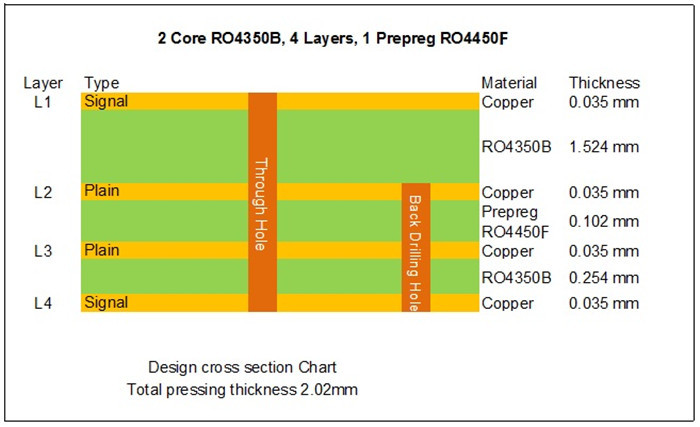

This 4 layer RF PCB is built on 60mil RO4350B and 10mil RO4350B for the application of UHF coupler. Look at the stack-up.



4 Layer RF Circuit Board On Rogers 60mil RO4350B and 10mil RO4350B with Back Drill for UHF Coupler 0



Base materials are 60mil RO4350B core and 10mil RO4350B core plus 4mil RO4450F prepreg. There’re 35 μm(1oz) copper on each layer with final height 2.1mm thick. Pads are immersion gold plated. There’re back drilled via from 10mil core. Back drilling can reduce noise interference and improve signal integrity. Using back drilling successfully reduced the difficulty of PCB fabrication and avoided the use of buried /blind via.



Features and benefits

1) RO4350B exhibits a stable dielectric constant over a broad frequency range;

2) RO4350B makes it an ideal substrate for broadband applications;

3) Delivery on time higher than 98% on-time-delivery rate;

4) Focusing on small batches and medium volume production;

5) Strict WIP inspection and monitoring as well as working instruction;



Applications

Antenna, Interference filter, Sound control switch induction, Trunk amplifier



PCB Data Sheet

PCB SIZE 91 x 98mm=1PCS
BOARD TYPE High Frequency PCB
Number of Layers Multilayer PCB, 4 Layer PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1oz)+plate TOP layer
RO4350B 60 mil
copper ------- MidLayer 1
RO4450F 4 mil
copper ------- MidLayer 2
RO4350B 10 mil
copper ------- 35um(1oz)+plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 10mil / 10mil
Minimum / Maximum Holes: 0.3/3.21mm
Number of Different Holes: 5
Number of Drill Holes: 1680
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control no
BOARD MATERIAL
Glass Epoxy: Rogers RO4350B( core 10mil, DK=3.48) & RO4450B(PP 4mil DK=3.54)
Final foil external: 1.5oz
Final foil internal: 1oz
Final height of PCB: 2.1mm ±10%
PLATING AND COATING
Surface Finish Immersion Gold (71.1%) 2µ" over 100µ" nickel
Solder Mask Apply To: Top and Bottom layer
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated Through Hole(PTH), via open
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

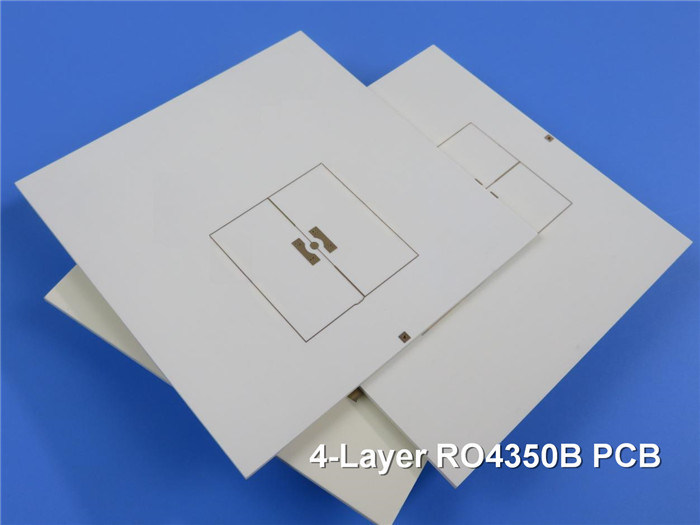

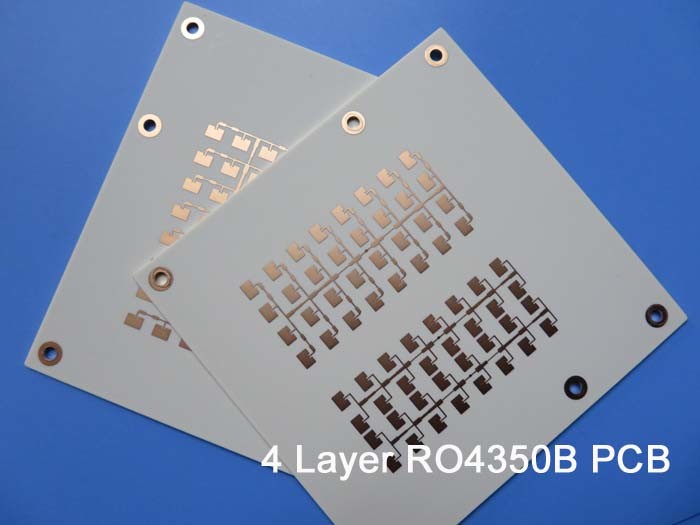

4 Layer RF Circuit Board On Rogers 60mil RO4350B and 10mil RO4350B with Back Drill for UHF Coupler 1
