Hybrid PCB Board Bulit On Rogers 10mil RO4350B and FR-4 With Immersion Gold

Hybrid PCB Board Bulit On Rogers 10mil RO4350B and FR-4 With Immersion Gold

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-xxx-V1.21
Number Of Layers:
1 Layer, 2 Layer, Multilayer, Hybrid Type (Mixed)
Glass Epoxy:
RO4350B Rogers
Final Foil:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Final Height Of PCB:
10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)
Surface Finish:
Bare Copper, HASL, ENIG, Silver, OSP,etc.
Solder Mask Color:
Green, Black, Blue, Yellow, Red Etc.
Colour Of Component Legend:
Green, Black, Blue, Yellow, Red Etc.
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description

Hybrid PCB Board Bulit On Rogers 10mil RO4350B and FR-4 With Immersion Gold



Hi Everyone,

Today, we're talking about high frequency PCB made on 10mil RO4350B pressed with FR-4.



This board is designed as a 4-layer structure, which is relatively simple and cost-controllable, this is helpful to open up a new market.

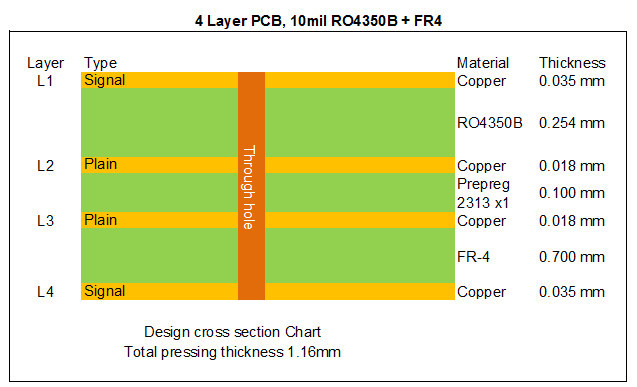

Let's take a look at its build-up,



Hybrid PCB Board Bulit On Rogers 10mil RO4350B and FR-4 With Immersion Gold 0





The first layer to the second layer is 10mil RO4350B core material, the core has fixed thickness which is very important to the electrical length of RF lines on the circuit board, and the other layers are FR-4 materials, which are bonded by semi-cured sheets.



The inner layer of the PCB is 0.5 ounces and the outer layer is 1 ounce.

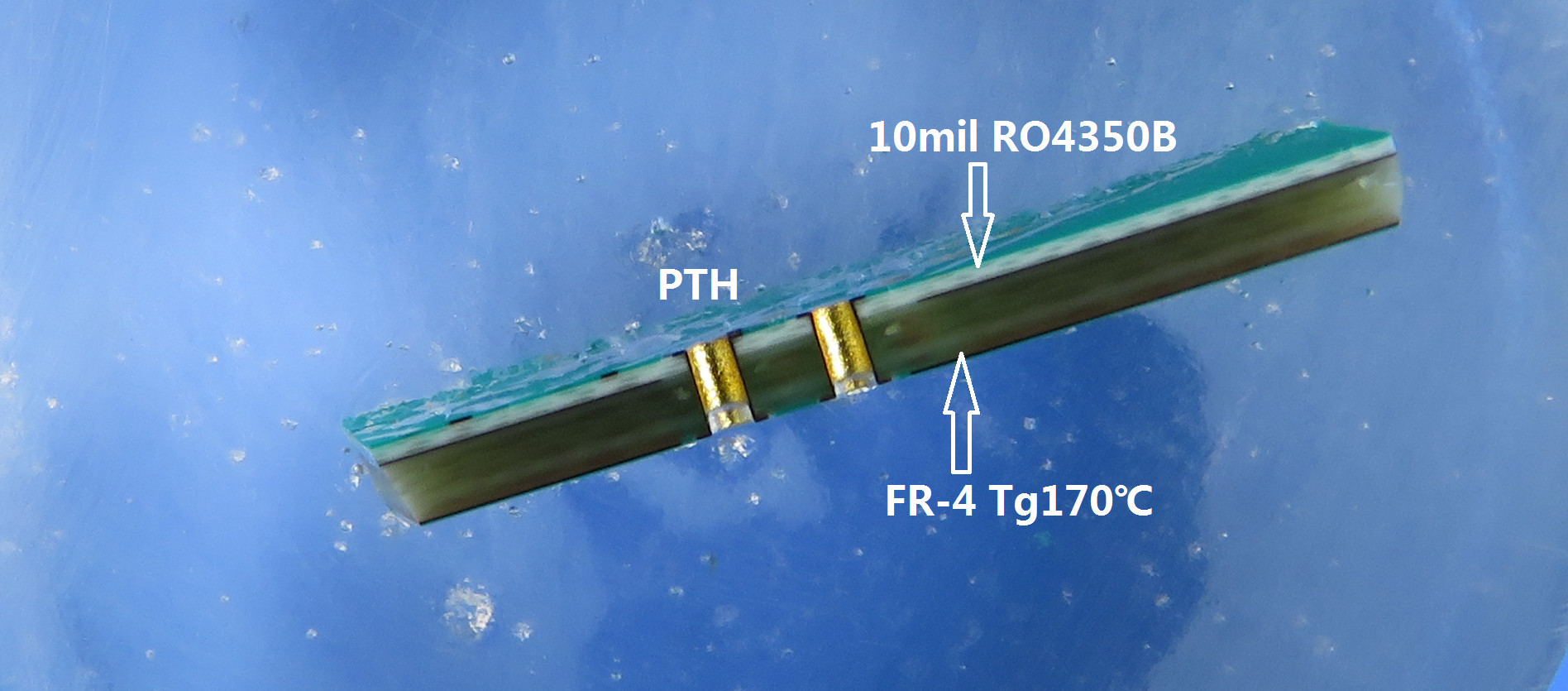

This is cross section.

Hybrid PCB Board Bulit On Rogers 10mil RO4350B and FR-4 With Immersion Gold 1



Plated through holes connect each layer, we undertake blind via design and HDI design of 1st stage and 2nd stage. The color of solder mask is in green, and yellow, red and black are available for your option.





All the PCB's of our company will be go through open circuit test and short circuit test, AOI test, solderability test and 288 ℃ thermal stress test to ensure high quality products.



We can provide you with prototype and mass production.

Thank you for your reading
