MOQ: | 1 |
Price: | USD 2.99-9.99 PER PIECE |
Standard Packaging: | Vacuum |
Delivery Period: | 10 working days |
Payment Method: | T/T, Western Union |
Supply Capacity: | 45000 pieces per month |
TP High Frequency PCB
Microwave composite dielectric copper-clad laminate - TP
Introduction
TP material is a unique high-frequency thermoplastic material in the industry. The dielectric layer of TP-type laminates consists of ceramics and polyphenylene Oxide resin (PPO), without fiberglass reinforcement. The dielectric constant can be precisely adjusted by adjusting the ratio between ceramics and PPO resin. The production process is special, and it has excellent dielectric performance and high reliability. TP refers to the smooth surface material without copper cladding, TP-1 refers to the material with copper cladding on one side, and TP-2 refers to the material with copper cladding on both sides.
Features
1. The dielectric constant can be arbitrarily selected within the range of 3 to 25 according to circuit requirements, and it is stable. Common dielectric constants include 3.0, 4.4, 6.0, 6.15, 9.2, 9.6, 10.2, 11, 16, and 20. The dielectric loss is low, and the loss increases as the frequency increases, but the change is not significant within 10 GHz.
Data Sheet
Product Technical Parameter | Product Models & Data Sheet | |||||||||||||||
Product Features | Test Conditions | Unit | TP TP-1 TP-2 | |||||||||||||
Dielectric Constant | When the dielectric constant is ≤11, the test condition is 10GHz. When the dielectric constant is >11, the test condition is 5GHz. |
/ | 3.0±0.06 | 4.4±0.09 | 6.0±0.12 | |||||||||||
6.15±0.12 | 9.2±0.18 | 9.6±0.19 | ||||||||||||||
10.2±0.2 | 11.0±0.022 | 16.0±0.4 | ||||||||||||||
20.0±0.8 | 22.0±0.88 | 25.0±1.0 | ||||||||||||||
The dielectric constant can be customized within the range of 3.0 to 25. | ||||||||||||||||
Dielectric Constant Tolerance | Dielectric Constant 3.0~11.0 | / | ±2% | |||||||||||||
Dielectric Constant 11.1~16.0 | / | ±2.5% | ||||||||||||||
Dielectric Constant 16.1~25.0 | / | ±4% | ||||||||||||||
Loss Tangent | Loss Tangent 3.0~9.5 | 10GHz | / | 0.0010 | ||||||||||||
Loss Tangent 9.6~11.0 | 10GHz | / | 0.0012 | |||||||||||||
Loss Tangent 11.1~16.0 | 5GHz | / | 0.0015 | |||||||||||||
Loss Tangent 16.1~25.0 | 5GHz | / | 0.0020~0.0025 | |||||||||||||
Dielectric Constant Temperature Coefficient | Dielectric Constant 3.0~9.5 | -55 º~150ºC | PPM/℃ | -50 | ||||||||||||
Dielectric Constant 9.6~16.0 | -55 º~150ºC | PPM/℃ | -40 | |||||||||||||
Dielectric Constant 16.1~25.0 | -55 º~150ºC | PPM/℃ | -55 | |||||||||||||
Peel Strength | 1 OZ Normal State | N/mm | >0.6 | |||||||||||||
1 OZ After AC Humidity Test | N/mm | >0.4 | ||||||||||||||
Volume Resistivity | Normal State at 500V | MΩ.cm | >1×109 | |||||||||||||
Surface Resistivity | Normal State at 500V | MΩ | >1×107 | |||||||||||||
Coefficient of Thermal Expansion (XY Z) |
Dielectric Constant 3.00~4.40 | -55 º~150ºC | PPM/℃ | 60,60,70 | ||||||||||||
Dielectric Constant 4.60~6.15 | -55 º~150ºC | PPM/℃ | 50,50,60 | |||||||||||||
Dielectric Constant 6.16~11.0 | -55 º~150ºC | PPM/℃ | 40,40,55 | |||||||||||||
Dielectric Constant 11.1~16.0 | -55 º~150ºC | PPM/℃ | 40,40,50 | |||||||||||||
Dielectric Constant 16.1~25.0 | -55 º~150ºC | PPM/℃ | 35,35,40 | |||||||||||||
Water Absorption | 20±2℃, 24 hours | % | ≤0.01 | |||||||||||||
Long-Term Operating Temperature | High-Low Temperature Chamber | ℃ | -100º~150ºC | |||||||||||||
Material Composition | Polyphenylene ether, ceramic, paired with ED copper foil. | |||||||||||||||
The density and thermal conductivity data for materials with different dielectric constants are as follows: | ||||||||||||||||
Product Features | Unit | Dielectric Constanct | ||||||||||||||
3.0 | 4.4 | 6.0 | 6.15 | 9.6 | 10.2 | 11.0 | 16.0 | 20.0 | 22.0 | 25.0 | ||||||
Density | g/cm3 | 1.69 | 1.89 | 2.1 | 2.12 | 2.26 | 2.33 | 2.40 | 2.76 | 2.73 | 2.77 | 2.94 | ||||
Thermal Conductivity | W/(M.K) | 0.40 | 0.44 | 0.55 | 0.55 | 0.65 | 0.67 | 0.70 | 0.80 | 0.85 | 0.90 | 1.0 |
Our PCB Capability (TP Series)
PCB Capability (TP Series) | |||
PCB Material: | Polyphenylene ether, ceramic | ||
Designation (TP Series) | Designation | DK | DF |
TP300 | 3.0±0.06 | 0.0010 | |
TP440 | 4.4±0.09 | 0.0010 | |
TP600 | 6.0±0.12 | 0.0010 | |
TP615 | 6.15±0.12 | 0.0010 | |
TP920 | 9.2±0.18 | 0.0010 | |
TP960 | 9.6±0.2 | 0.0011 | |
TP1020 | 10.2±0.2 | 0.0011 | |
TP1100 | 11.0±0.22 | 0.0011 | |
TP1600 | 16.0±0.32 | 0.0015 | |
TP2000 | 20.0±0.4 | 0.0020 | |
TP2200 | 22.0±0.44 | 0.0022 | |
TP2500 | 25.0±0.5 | 0.0025 | |
Layer count: | Single Sided, Double Sided PCB | ||
Copper weight: | 1oz (35µm), 2oz (70µm) | ||
Dielectric thickness (Dielectric thickness or overall thickness) | 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 10.0mm, 12.0mm | ||
PCB size: | ≤150mm X 220mm | ||
Solder mask: | Green, Black, Blue, Yellow, Red etc. | ||
Surface finish: | Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold, ENEPIG etc.. |

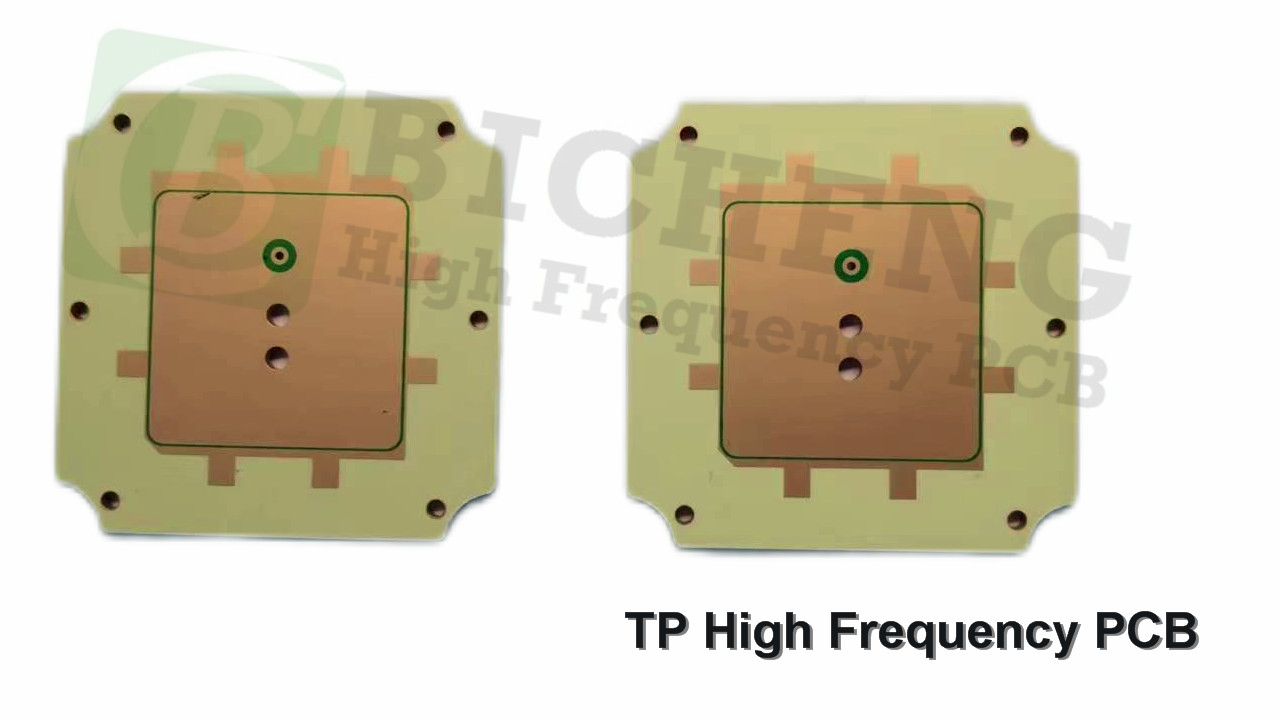

A TP PCB and Applications
On the screen, you can see a 1.5mm TP high-frequency PCB with OSP (Organic Solderability Preservative) coating. TP high-frequency PCBs are also utilized in applications such as Beidou, missile-borne systems, fuzes, and miniaturized antennas.
Final Attention
The material is not suitable for 260°C thermal shock testing and cannot be wave soldered. Hand soldering with a constant temperature soldering iron is recommended. Reflow soldering is generally not recommended. If reflow soldering is carried out, the highest set temperature should not exceed 200°C, and feasibility and stability should be fully considered.
