Bicheng FPC Flex PCB Prototype Flexible Circuit
  • name
  • name
  • name
  • name
  • name
  • name

Bicheng FPC Flex PCB Prototype Flexible Circuit

MOQ: 1
Price: USD40~50 per piece
Standard Packaging: VACUUM
Delivery Period: 8-9 WORKING DAY
Payment Method: T/T,Paypal
Supply Capacity: 50000 PIECE PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0410-V4.10
Size Of Flexible PCB:
130.18 X 20.5mm
Number Of Layers:
2
Board Thickness:
0.25mm
Board Material:
Polyimide 50 µm
Surface Cu Thickness:
35 µm
Surface Finish:
Immersion Gold
Color Of Silkscreen:
White
Coverlay Colour:
Yellow
Function:
100% Pass Electrical Test
Minimum Order Quantity:
1
Price:
USD40~50 per piece
Packaging Details:
VACUUM
Delivery Time:
8-9 WORKING DAY
Payment Terms:
T/T,Paypal
Supply Ability:
50000 PIECE PER MONTH
Product Description

Product profile



1.1 General description



This is a type of flexible printed circuit for the application of Controlled Access. It’s a 2 layer

FPC at 0.25mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class

2 using supplied Gerber data. Polyimide stiffner is applied on the inserting part.



1.2 Features and benifits



A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I. Low cost
J. Continuity of processing
K. Small quantity order is accepted
L. Engineering design prevents problems from occurring in pre production.



1.3 Application



Thin-film switch, Mobile phone module flex board, Mobile phone module flex board



1.4 Parameter and data sheet



Parameter & Data Sheet
Size of Flexible PCB 130.18 X 20.5mm
Number of Layers 2
Board Type Flexible PCB
Board Thickness 0.25mm
Board Material Polyimide 50 µm
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 35 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2

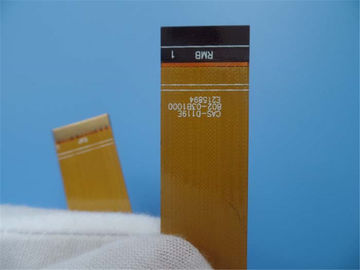

Bicheng FPC Flex PCB Prototype Flexible Circuit 0

PCB Grinding Machine

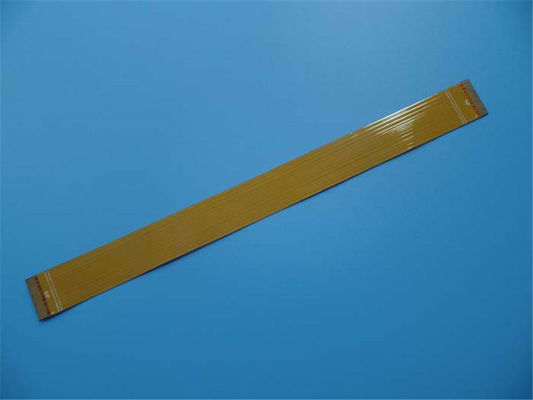

Bicheng FPC Flex PCB Prototype Flexible Circuit 1
