Rogers 3210 High Frequency Circuit Board RO3210 25mil 50mil rf PCB DK 10.8 Antenna PCB

Rogers 3210 PCB RO3210 High Frequency PCB

Hello Everyone,

Today we’re talking about RO3210 high frequency PCBs.

RO3210 high frequency circuit laminates are ceramic-filled laminates reinforced with woven fiberglass. RO3210 material was designed as an extension of the RO3000 series high frequency circuit materials with one distinguishing characteristic-- improved mechanical stability.

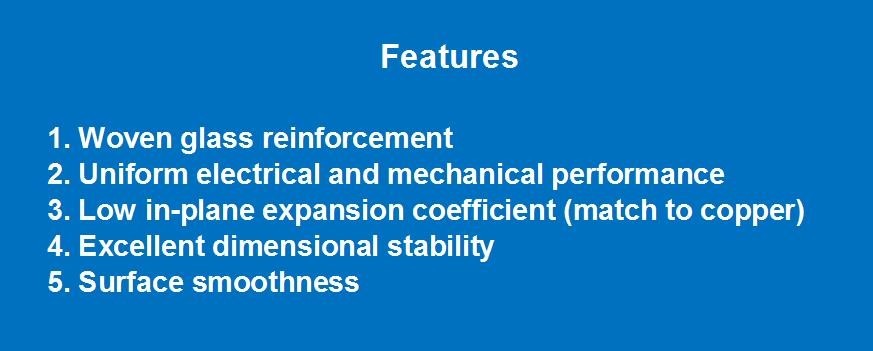

Features and benefits are as follows:

1. Woven glass reinforcement, improves rigidity for easier handling.

2, Uniform electrical and mechanical performance, is ideal for complex multi-layer high frequency structure.

3. Low in-plane expansion coefficient matches to copper, which is reliable for surface mounted assemblies; which is suitable for use with epoxy multi-layer board hybrid designs.

4. Excellent dimensional stability, results in high production yields.

5. Surface smoothness, allows for finer line etching tolerance.

PCB Capability

Double layer RO3210 high frequency PCBs are available with 0.5oz to 2oz finished copper, 0.7mm and 1.3mm thick, maximum size 400mm by 500mm, surface finish with bare copper, hot air leveling, immersion gold etc.

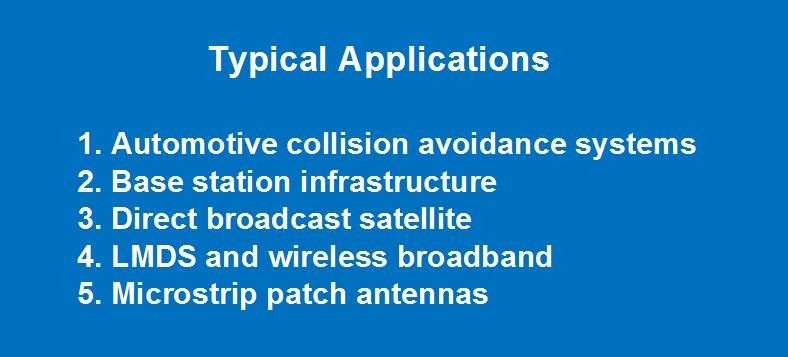

Typical applications

1. Automotive collision avoidance systems.

2. Automotive global positions satellite antennas

3. Base station infrastructure

4. Datalink on cable systems

5. Direct broadcast satellite

6. LMDS and wireless broadband

7. Microstrip patch antennas for wireless communications

8. Power backplanes

9. Remote meter readers

10. Wireless telecommunications systems

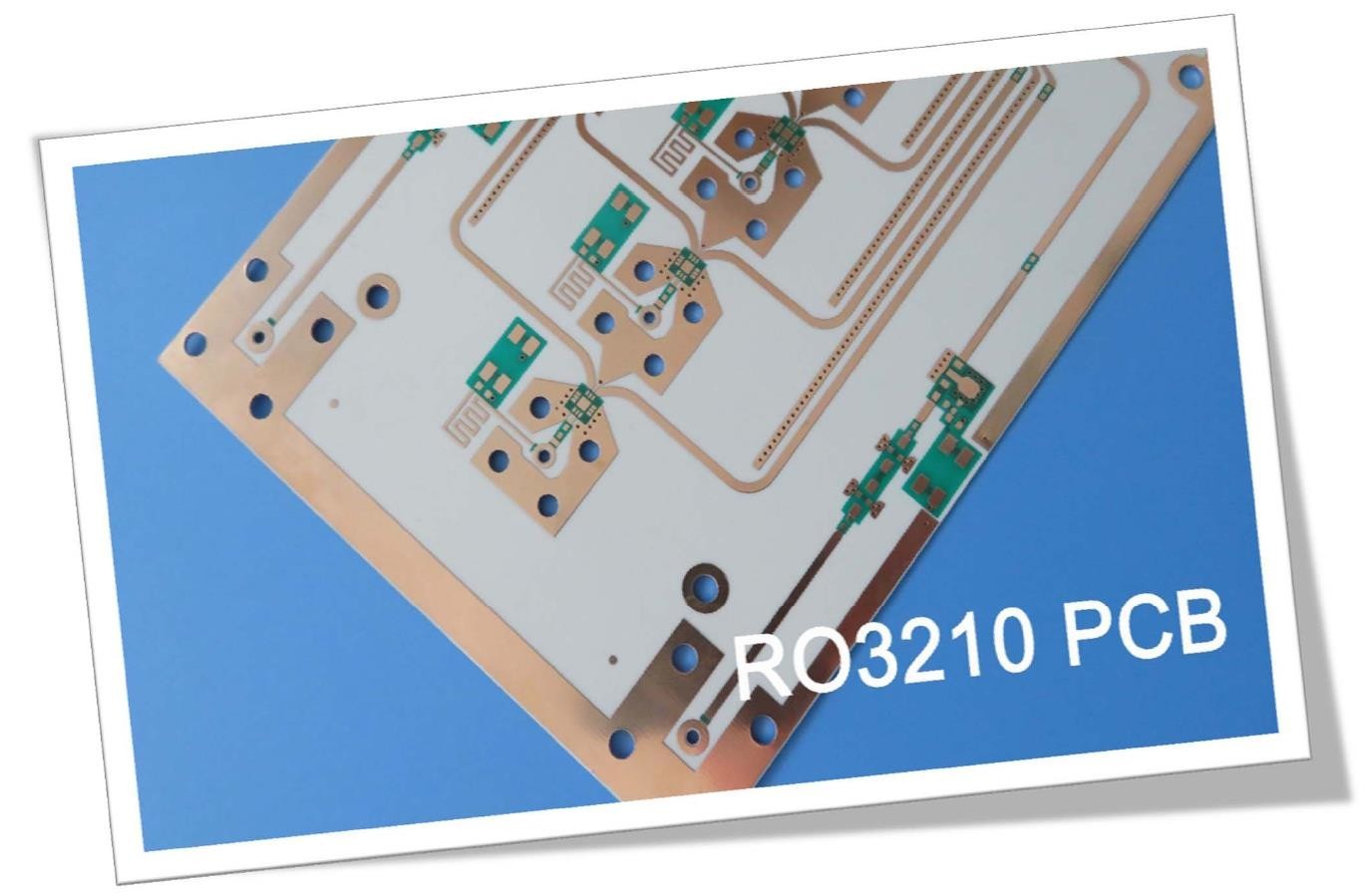

The basic colour of RO3210 PCB is white.

The manufacturing process of RO3210 high frequency PCB is similar to standard PTFE PCB, so it’s suitable for volume manufacturing process winning advantageous market.

Should you have any questions, please feel free to contact us.

Thank you for your reading.

Appendix

Data sheet of RO3210 high frequency circuit material
