Rogers 5880 PCB RT/duroid 5880 High Frequency PCB
  • name
  • name
  • name

Rogers 5880 PCB RT/duroid 5880 High Frequency PCB

MOQ: 1
Price: USD 9.99-99.99
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Paypal
Supply Capacity: 50000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-XXX-V1.33
Number Of Layers:
2 Layer, Multilayer, Hybrid Type (Mixed)
Glass Epoxy:
RT/duroid 5880
Final Height Of PCB:
10mil (0.254mm), 20mil (0.508mm) 31mil (0.787mm), 62mil (1.575mm)
Final Foil External:
0.5oz, 1oz, 2oz
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Tin Etc.
Solder Mask Color:
Green, Black, Blue, Yellow, Red Etc.
Colour Of Component Legend:
Green, Black, Blue, Yellow, Red Etc.
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 9.99-99.99
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Paypal
Supply Ability:
50000 pieces per month
Product Description

Hello everyone,

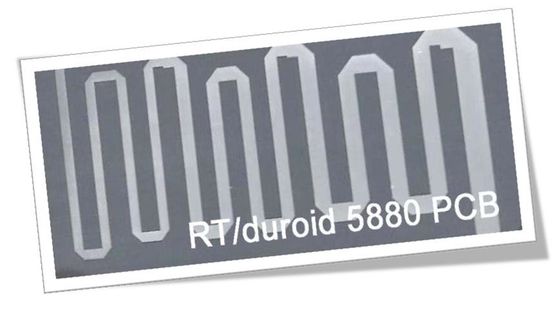

Today, we introduce high frequency PCB built on RT/duroid 5880 laminates.

Rogers 5880 PCB RT/duroid 5880 High Frequency PCB 0



RT/duroid 5880 is one of Rogers’ glass microfiber reinforced PTFE composite which is designed for exacting stripline and microstrip circuit applications.

Rogers 5880 PCB RT/duroid 5880 High Frequency PCB 1



Why do we use RT/duroid 5880?

Firstly, the randomly oriented microfibers result in exceptional dielectric constant uniformity.

Secondly, the dielectric constant of RT/duroid 5880 laminates is uniform from panel to panel and is constant over a wide frequency range.

Thirdly, its low dissipation factor extends the usefulness of RT/duroid 5880 laminates to Ku-band and above. It’s as low as 0.0004 when 1 MHz and 0.0009 when 10 GHz.

Fourthly, designed for exacting stripline and microstrip circuit applications



PCB Capability (RT/duroid 5880)

PCB Material: Glass microfiber reinforced PTFE composites
Designation: RT/duroid 5880
Dielectric constant: 2.2 ±0.02 (process)
2.2 (design)
Layer count: 2 Layer, Multilayer, Hybrid type (Mixed)
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil (0.508mm)
31mil (0.787mm), 62mil (1.575mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, etc..



RT/duroid 5880 material can be made in double layer board, multilayer board and hybrid types. The double sided boards are available in a variety of thicknesses, such as 10mil, 20mil, 31mil and 62mil.


Rogers 5880 PCB RT/duroid 5880 High Frequency PCB 2



The typical applications are microstrip and stripline circuits, commercial airline broadband antenna,radar systems, millimeter wave applications, point to point digital radio antenna etc.

Rogers 5880 PCB RT/duroid 5880 High Frequency PCB 3

The basic colour of RT/duroid 5880 PCB is black.



RT/duroid 5880 PCB also has the properties of low water absorption, excellent chemical resistance etc.

If you have any questions, please feel free to contact us.



Thank you for your reading.



Appendix: Typical Properties of RT/duroid 5880

Property RT/duroid 5880 Direction Units Condition Test Method
Dielectric Constant,εProcess 2.20
2.20±0.02 spec.		 Z N/A C24/23/50
C24/23/50		 1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
Dielectric Constant,εDesign 2.2 Z N/A 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0004
0.0009		 Z N/A C24/23/50
C24/23/50		 1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
Thermal Coefficient of ε -125 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 2 x 107 Z Mohm cm C/96/35/90 ASTM D 257
Surface Resistivity 3 x 107 Z Mohm C/96/35/90 ASTM D 257
Specific Heat 0.96(0.23) N/A j/g/k
(cal/g/c)		 N/A Calculated
Tensile Modulus Test at 23℃ Test at 100℃ N/A MPa(kpsi) A ASTM D 638
1070(156) 450(65) X
860(125) 380(55) Y
Ultimate Stress 29(4.2) 20(2.9) X
27(3.9) 18(2.6) Y
Ultimate Strain 6 7.2 X %
4.9 5.8 Y
Compressive Modulus 710(103) 500(73) X MPa(kpsi) A ASTM D 695
710(103) 500(73) Y
940(136) 670(97) Z
Ultimate Stress 27(3.9) 22(3.2) X
29(5.3) 21(3.1) Y
52(7.5) 43(6.3) Z
Ultimate Strain 8.5 8.4 X %
7.7 7.8 Y
12.5 17.6 Z
Moisture Absorption 0.02 N/A % 0.62"(1.6mm) D48/50 ASTM D 570
Thermal Conductivity 0.2 Z W/m/k 80℃ ASTM C 518
Coefficient of Thermal Expansion 31
48
237		 X
Y
Z		 ppm/℃ 0-100℃ IPC-TM-650 2.4.41
Td 500 N/A ℃ TGA N/A ASTM D 3850
Density 2.2 N/A gm/cm3 N/A ASTM D 792
Copper Peel 31.2(5.5) N/A Pli(N/mm) 1oz(35mm)EDC foil
after solder float		 IPC-TM-650 2.4.8
Flammability V-0 N/A N/A N/A UL 94
Lead-free Process Compatible Yes N/A N/A N/A N/A
