Rogers RO3003 High Frequency Printed Circuit Board 2-Layer Rogers 3003 30mil 0.762mm PCB with DK3.0 DF 0.001

Rogers RO3003 High Frequency Printed Circuit Board 2-Layer Rogers 3003 30mil 0.762mm PCB with DK3.0 DF 0.001

MOQ: 1
Price: USD 9.99-99.99
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 50000 pieces per month
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-0039-V0.77
Number Of Layers:
2
Glass Epoxy:
RO3003
Final Foil:
1.0 Oz
Final Height Of PCB:
0.8 Mm ±10%
Surface Finish:
Immersion Gold (31%)
Solder Mask Color:
N/A
Colour Of Component Legend:
N/A
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 9.99-99.99
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
50000 pieces per month
Product Description

Rogers RO3003 High Frequency Printed Circuit Board 2-Layer Rogers 3003 30mil 0.762mm PCB with DK3.0 DF 0.001

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)





Rogers RO3003 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3003 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.



Typical applications:

1) Automotive radar

2) Cellular telecommunications systems

3) Datalink on cable systems

4) Direct broadcast satellites

5) Global positioning satellite antennas

6) Patch antenna for wireless communications

7) Power amplifiers and antennas

8) Power backplanes

9) Remote meter readers

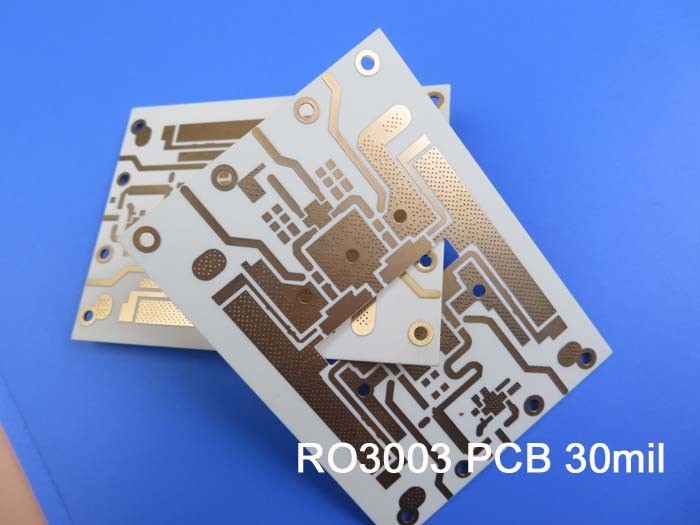

Rogers RO3003 High Frequency Printed Circuit Board 2-Layer Rogers 3003 30mil 0.762mm PCB with DK3.0 DF 0.001 0



PCB Specifications

PCB SIZE 81 x 45mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RO3003 0.762mm
copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 5 mil / 5 mil
Minimum / Maximum Holes: 0.5mm / 2.0mm
Number of Different Holes: 1
Number of Drill Holes: 1
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO3003 0.762mm
Final foil external: 1oz
Final foil internal: N/A
Final height of PCB: 0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold (31%)
Solder Mask Apply To: NO
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Side
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and legend FREE AREA
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.





Data Sheet of Rogers 3003 (RO3003)

RO3003 Typical Value
Property RO3003 Direction Units Condition Test Method
Dielectric Constant,εProcess 3.0±0.04 Z   10 GHz/23 IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.001 Z   10 GHz/23 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -3 Z ppm/ 10 GHz -50to 150 IPC-TM-650 2.5.5.5
Dimensional Stability 0.06
0.07
X
Y
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 107   MΩ.cm COND A IPC 2.5.17.1
Surface Resistivity 107   COND A IPC 2.5.17.1
Tensile Modulus 930
823
X
Y
MPa 23 ASTM D 638
Moisture Absorption 0.04   % D48/50 IPC-TM-650 2.6.2.1
Specific Heat 0.9   j/g/k   Calculated
Thermal Conductivity 0.5   W/M/K 50 ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288
)
17
16
25
X
Y
Z
ppm/ 23/50% RH IPC-TM-650 2.4.4.1
Td 500   TGA   ASTM D 3850
Density 2.1   gm/cm3 23 ASTM D 792
Copper Peel Stength 12.7   Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes
Rogers RO3003 High Frequency Printed Circuit Board 2-Layer Rogers 3003 30mil 0.762mm PCB with DK3.0 DF 0.001 1
