High Frequency PCB Bare Board | 10 mil RO4350B Printed Circuit Board | Immersion Gold HF PWB

Products

High Frequency PCB Bare Board | 10 mil RO4350B Printed Circuit Board | Immersion Gold HF PWB

Name: High Frequency PCB Bare Board | 10 mil RO4350B Printed Circuit Board | Immersion Gold HF PWB
Brand: Bicheng Enterprise Limited
SKU: BIC-0051-V5.1
Price: 2.99 USD
Availability: InStock
Rating: 5 (107 reviews)

MOQ:	1
Price:	USD 2.99-8.99 per piece
Standard Packaging:	Vacuum
Delivery Period:	6-7 working days
Payment Method:	T/T, Paypal
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Enterprise Limited

Certification

Model Number

BIC-0051-V5.1

Number Of Layers:

Glass Epoxy:

RO4350B Tg280℃, Er<3.48, Rogers Corp.

Final Foil External:

1.0 Oz

Final Height Of PCB:

0.3 Mm ±0.1

Surface Finish:

Immersion Gold

Solder Mask Color:

Green

Colour Of Component Legend:

White

TEST:

100% Electrical Test Prior Shipment

Minimum Order Quantity:

Price:

USD 2.99-8.99 per piece

Packaging Details:

Vacuum

Delivery Time:

6-7 working days

Payment Terms:

T/T, Paypal

Supply Ability:

45000 pieces per month

Product Description

Brief Introduction

RO4350B High Frequency Circuit Material is glass reinforced hydrocarbon/ceramic laminates (Not PTFE) designed for performance sensitive, high volume commercial applications. Currently double sided and multilayer RO4350B PCB’s are available at Bicheng company. Double sided RO4350B PCB with thickness 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm) and 60mil (1.524mm) are the bestsellers. We provide prototype runs, small batches and volume production services.

Advantages

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Excellent dimensional stability.

3) Low thermal coefficient of dielectric constant;

4) Low Z-Axis expansion;

5) Low in-plane expansion coefficient;

6) Stable electrical properties verus frequency;

Applications

1) Attenuator, Automatic gate induction;

2) LNB's for direct broadcast satellites;

3) Microstrip antenna, spread spectrum;

4) Microstrip and cellular base station antennas and power amplifiers;

5) RF identifications tags

6) Spread spectrum communications systems

7) Trunk amplifier, splitter module etc.

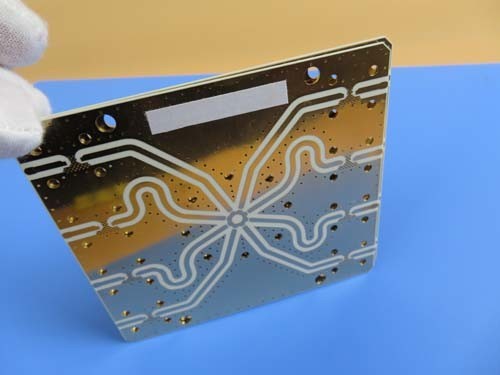

PCB Case: RO4350B PCB |High Frequency PCB Bare Board | 0.3mm Printed Circuit Board | Immersion Gold PWB

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)

General description

This is a type of double sided PCB built on 10mil RO4350B substrate with Tg 280°C for the application of antenna. It's 0.3mm thick finished with white silkscreen over green solder mask and immersion gold are plated on pads. The base material is used from Rogers Corp., entire board supplying 1 up per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 100 panels are packed for shipment.

Features and benefits

The temperature coefficient of dielectric constant is among the lowest of any circuit board material, making it ideal for temperature sensitive applications;

Delamination of copper foil will not be caused by the change of cold and heat due to the consistency with the thermal expansion coefficient of copper foil;

Reducing signal loss in high frequency application meets the development needs of communication technology;

Low in-plane expansion coefficient;

Excellent dimensional stability;

Products and Manufacturing are certified by authorized organizations;

UL, ISO14001, TS16949 certified;

On-time service;

More than 15 years of PCB experience;

Application

UHF radio, power divider, Relay Stations, base station antenna

Parameter and data sheet

PCB SIZE	160 x 70mm=1PCS
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	YES
LAYER STACKUP	copper ------- 18um(0.5 oz)+plate TOP layer
	RO4350B 0.254mm
	copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	4 mil / 15 mil
Minimum / Maximum Holes:	0.254 mm / 4.0mm
Number of Different Holes:	4
Number of Drill Holes:	125
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	0.3 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion gold
Solder Mask Apply To:	TOP 12micron Minimum, Bottom is forbidden.
Solder Mask Color:	Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated through hole(PTH), minimum size 0.2mm. Via tented.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
