Brief Introduction
With the development of electronic communication technology, the communication frequency is becoming higher and higher, and the high frequency signal transmission, need to use low dielectric constant (Dk), low dielectric loss (Df) but expensive special materials. These materials have cyanate and high frequency materials such as polytetrafluoroethylene / ceramic based materials (PTFE/Ceramic), hydrocarbons / ceramic based materials (Hydra Carbon/Ceramic). Usually these materials are expensive.
Reducing the cost is an important means for customers to improve the competitiveness of products. Therefore, the customers adopt the laminated structure of mixed materials in the design of PCB structure, that is, the necessary signal layer uses high-frequency materials to meet the needs of signal transmission. Other line layers are made of conventional fiberglass epoxy FR-4, which we call a hybrid board.
Available high frequency material (Core)
RO4350B RO4003C
4mil (0.1mm) 8mil (0.203mm)
6.6mil (0.168mm) 12mil (0.3mm)
10mil (0.254mm) 20mil (0.508mm)
13.3mil (0.338mm) 32mil (0.813mm)
20mil (0.508mm) 60mil (1.524mm)
30mil (0.762mm)
60mil (1.524mm)

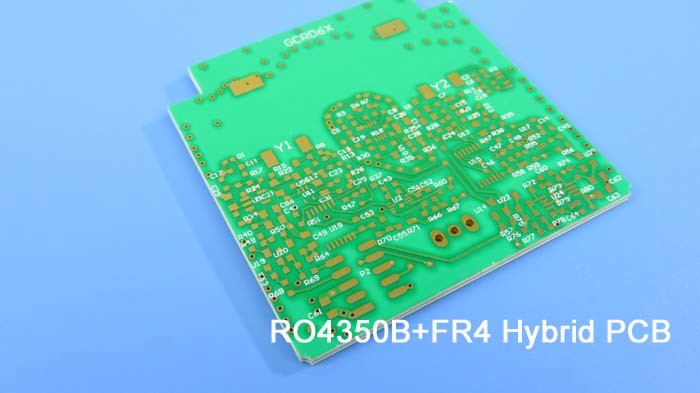

PCB Case: Hybrid PCB | Mixed Material PCB Built On 20 mil RO4350B Plus FR-4 With Blind Via
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of mixed material multilayer PCB built on 20 mil RO4350B plus FR-4 substrate for the application of satellite antenna. It's 1.69 mm thick, white silkscreen over green solder mask on both sides and immersion gold is plated on pads and tracks. The base material is used from Rogers and ITEQ, entire board supplying 1 PCB up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed for shipment.
Features and benefits
RO4350B exhibits a stable dielectric constant over a broad frequency range;
Excellent high frequency performance due to low dielectric tolerance and loss;
SI performance improvement over the stack-ups with all FR4 board;
Cost reduction over stack-ups with all low loss material;
Long storage time which can be stored for more than 1 year in vacuum bag;
ISO9001, ISO14001, UL certified manufacturing factory;
PCB manufacturing on required specifications;
No MOQ, low cost for prototypes and small runs quantity;
8000 types of PCB per month;
Application
LNA, radar data acquisition converter, spread spectrum, 3G antenna
Parameter and data sheet
| PCB SIZE |
99 x 85mm=1PCS |
| BOARD TYPE |
Multilayer PCB |
| Number of Layers |
6 layers |
| Surface Mount Components |
YES |
| Through Hole Components |
YES |
| LAYER STACKUP |
copper --------18um(0.5 oz)+plate TOP layer |
| RO4350B 0.508mm |
| copper ------- 18um(0.5 oz) |
| |
Prepreg 2313 x 2, 0.2mm |
| |
Copper ------- 35um (1 oz) |
| |
FR-4 0.305mm |
| |
Copper ------- 35um (1 oz) |
| |
Prepreg 2313 x 2, 0.2mm |
| |
Copper ------- 35um (1 oz) |
| |
FR-4 0.305mm |
| |
copper --------18um(0.5 oz)+plate BOT layer |
| TECHNOLOGY |
|
| Minimum Trace and Space: |
15mil / 15 mil |
| Minimum / Maximum Holes: |
0.4 mm / 2.5 mm |
| Number of Different Holes: |
4 |
| Number of Drill Holes: |
89 |
| Number of Milled Slots: |
0 |
| Number of Internal Cutouts: |
0 |
| Impedance Control: |
no |
| Number of Gold finger: |
0 |
| BOARD MATERIAL |
|
| Glass Epoxy: |
RO4350B Tg280℃, er<3.48, Rogers Corp. IT158 FR-4 |
| Final foil external: |
1 oz |
| Final foil internal: |
1 oz |
| Final height of PCB: |
1.69 mm ±10% |
| PLATING AND COATING |
|
| Surface Finish |
Immersion gold 0.053 micron over nickle 4.42 micron |
| Solder Mask Apply To: |
Both sides |
| Solder Mask Color: |
Green, LP-4G/G-05, Nanya |
| Solder Mask Type: |
LPI |
| CONTOUR/CUTTING |
Routing |
| MARKING |
|
| Side of Component Legend |
Top Side |
| Colour of Component Legend |
White, S-380W, Taiyo |
| Manufacturer Name or Logo: |
N/A |
| VIA |
Plated through hole(PTH), minimum size 0.4mm. Blind via L1-L2, L5-L6, L3-L6 |
| FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE |
|
| Outline dimension: |
0.0059" |
| Board plating: |
0.0029" |
| Drill tolerance: |
0.002" |
| TEST |
100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA |
Worldwide, Globally. |
