Immersion Gold PCB On 30 mil RO4350B With Double Layers

Immersion Gold PCB On 30 mil RO4350B With Double Layers

  • Immersion Gold PCB On 30 mil RO4350B With Double Layers
Immersion Gold PCB On 30 mil RO4350B With Double Layers
Product Details:
Place of Origin: China
Brand Name: Bicheng Enterprise Limited
Certification: UL
Model Number: BIC-0047-V4.7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2.99-6.99 per piece
Packaging Details: Vacuum
Delivery Time: 6-7 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Number Of Layers: 2 Glass Epoxy: RO4350B Tg280℃, Er<3.48, Rogers Corp.
Final Foil External: 1.5 Oz Final Height Of PCB: 0.8 Mm ±10%
Surface Finish: Immersion Gold Solder Mask Color: Green
Colour Of Component Legend: White TEST: 100% Electrical Test Prior Shipment

Brief Introduction
RO4350B High Frequency Circuit Material is glass reinforced hydrocarbon/ceramic laminates (Not PTFE) designed for performance sensitive, high volume commercial applications. Currently double sided and multilayer RO4350B PCB’s are available at Bicheng company. Double sided RO4350B PCB with thickness 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm) and 60mil (1.524mm) are the bestsellers. We provide prototype runs, small batches and volume production services.

Advantages
1) Excellent high frequency performance due to low dielectric tolerance and loss;
2) Excellent dimensional stability.
3) Low thermal coefficient of dielectric constant;
4) Low Z-Axis expansion;
5) Low in-plane expansion coefficient;
6) Stable electrical properties verus frequency;

Applications
1) Attenuator, Automatic gate induction;
2) LNB's for direct broadcast satellites;
3) Microstrip antenna, spread spectrum;
4) Microstrip and cellular base station antennas and power amplifiers;
5) RF identifications tags
6) Spread spectrum communications systems
7) Trunk amplifier, splitter module etc.

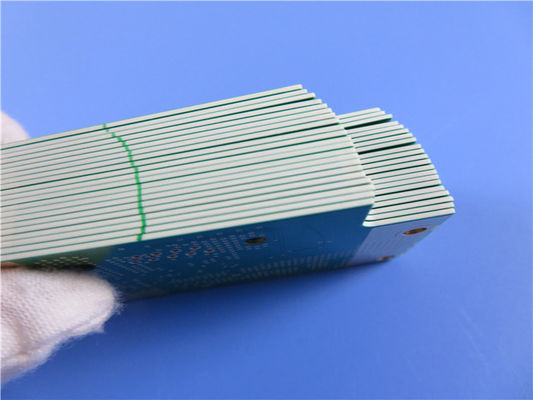

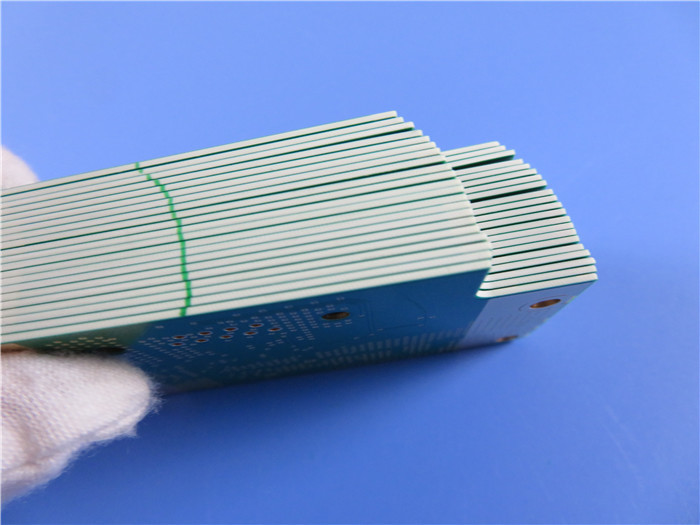

PCB Case: Immersion Gold PCB On 30 mil RO4350B With Double Layers
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)

General description
This is a type of double sided PCB built on high frequency substrate with Tg 288°C for the application of 4G WiFi Module. It's 0.8 mm thick, white silkscreen over green solder mask. All via's are open to air. Pads are plated by immersion gold. The base material is used from Rogers RO4350B, entire board supplying 1 PCB up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

Features and benefits
The dielectric constant (DK) is low and stable, so the signal transmission is good without delay;
Delamination of copper foil will not be caused by the change of cold and heat due to the consistency with the thermal expansion coefficient of copper foil;
Excellent dimensional stability;
Good high temperature and low temperature resistance(-192℃-260℃);
UL recognized and RoHS Directive-compliant;
Electrical test and high voltage test;
Impedance control test and solder-ability test;
Micro-section and thermal stress test;
Reliability test, insulation resistance test and ionic contamination test;
Meeting your PCB needs from prototype to mass production;



Application
Low noise amplifier, acoustic detection sensors, Optoelectronic Transmitters, 4G antenna


Parameter and data sheet
PCB SIZE 67 x 33mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
RO4350B 0.762mm
copper ------- 35um(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 5 mil / 4.5 mil
Minimum / Maximum Holes: 0.3 mm / 4.6 mm
Number of Different Holes: 7
Number of Drill Holes: 105
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 0.8 mm ±10%
PLATING AND COATING
Surface Finish Immersion Gold
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.3mm. Solder mask uncovered
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Why choose us?
1) Focus on your core competencies: We’ve deeply known it is full of fierce competition for our customers in the market. You can focus on such important competencies as research and development, sales and marketing based on our professional performance and skilled services that exceeding your expectation.

2) Cutting-edge technology: it is rational for a small and medium-sized customer to hanker after the latest equipment and manufacturing expertise for its PCBs. By the partnerships
with Bicheng PCB, you gain access to reach your expectation with our 3 factory bases with over 26,000 square meters.

4) Save the cost of production: Production cost is one of the key points of our customers’ product competitiveness. Bicheng PCB have been striving to reduce its manufacturing cost from equipment introduce, worker training and technology improvement to increase their profitability. Customers are satisfied with our cost savings but without quality loss.

5) Avoid hassle: It’s an upset matter when quality problem hassling you. Bicheng engineering design prevents problem from occurring in pre-production. You will not get headache with Bicheng prototypes, small orders and volume production. Our rate of customer complaint is less than 1% and will be solved satisfactory.

6) Save time: Market requires the products updating quickly. Bicheng PCB always works fast and flexible to save the time of production from prototype to standard production,
quick turn-around or scheduled deliveries.

7) An excellent team: Bicheng is trustworthy partner with passion, discipline, responsibility and honesty. We have a team of experienced sales persons and skilled customer services. Do not change your supplier. If change is must, Bicheng is the right one for you.
