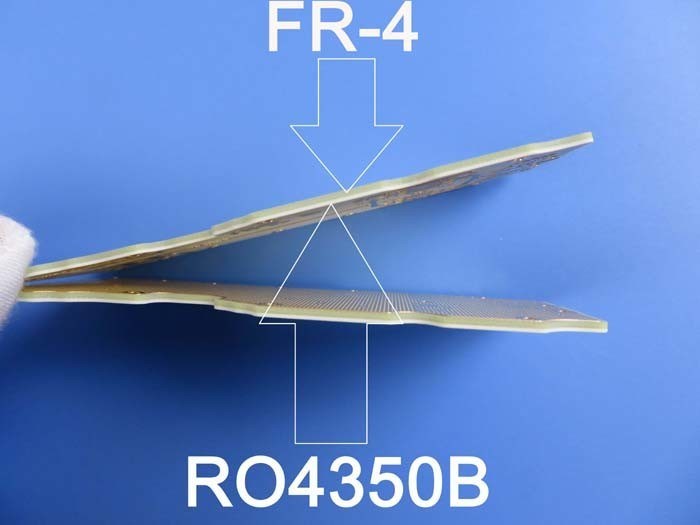

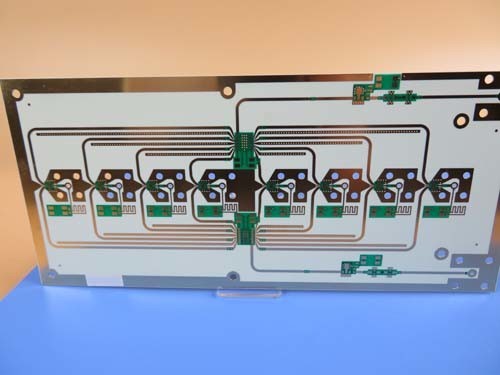

|Glass Epoxy:||RO4350B Tg280℃, Er<3.48, Rogers Corp.||Final Height Of PCB:||0.3 Mm ±0.1mm|
|Final Foil External:||1.5oz||Surface Finish:||Immersion Gold|
|Solder Mask Color:||Green||Colour Of Component Legend:||White|
|Number Of Layers:||2||Test:||100% Electrical Test Prior Shipment|
How to Distinguish the Step (Stack-up) of HDI PCB?
Tag#Stacked via Staggered via HDI | PCB 1+N+1 HDI PCB | 2+N+2 HDI PCB
HDI stands for high density interconnection. It contains non-mechanical drilling, the ring of microvias and blind via below 6 mil, internal and external layers of track width, track gap below 4 mil, pad diameter is not more than 0.35 mm. We call this kind of multi-layer PCB production method as HDI circuit boards. HDI PCB has a higher wiring density per unit area than conventional PCB. They have finer tracks and spaces, smaller vias and capture pads and higher connection pad density etc.
I. Holes and vias

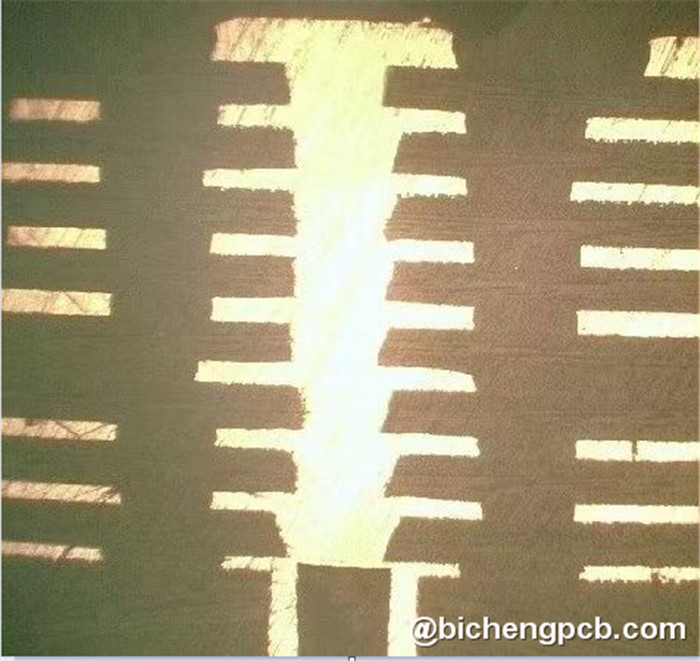

Plated through hole: There is only one kind of hole, from the first layer to the last layer. Whether external or internal lines, holes are pierced. It's called a through-hole board.
The through-hole board has nothing to do with the number of layers. Usually, the two layers used by everyone are through-hole boards, while many switches and military circuit boards up 20 layers, they're still through holes. The circuit board is drilled through with a drill bit, and then copper in the hole to form a path. Note here that the through hole diameter is usually 0.2 mm,0.25mm and 0.3 mm, but generally 0.2 mm is much more expensive than 0.3mm. Because the bit is too thin and easy to break, the drill works slower. The cost of time and bit is reflected in the rising price of the circuit board.
Blind via : the abbreviation of blind via hole, realize the connection between inner layer and outer layer.
Buried via: the abbreviation of buried via hole, realize the connection between inner layer and inner layer.
Most of the blind vias / buried vias are small holes with a diameter of 0.05 mm~0.15 mm. The blind vias and buried vias are made by laser drill, plasma etching and photoinduced drill. Usually laser drill is the most commonly used. Laser formation is usually divided into CO2 and YAG ultraviolet laser machine (UV).
Expansion: CO2 laser is generally 10.6 µm light wave infrared light, using CO2 gas medium to produce laser, so called gas laser. In the scope of use, it's generally used in non-metallic marking, welding and cutting, the high power can also be used in metal cutting. Early CO2 lasers had higher power, so gas lasers are popularly used in processing.
YAG solid-state laser generally refers to 1064 nm infrared wavelength laser, using solid-state excitation medium, commonly known as solid-state laser, solid-state laser wavelength is shorter, processing efficiency is higher, with the development of technology, the power is also getting higher and higher. CO2 lasers have been replaced in many applications.
II. Types of Steps (Stack-ups)
In China, we usually use "Steps" to tell the different difficulties of HDI PCBs, One-Step (1+N+1), Two-Step (2+N+2), Three-Step (3+N+3) etc. The way to distinguish the one, two, three steps is to look at the number of using laser times. That how many times of PCB core pressed uses how many times of laser drilled, this is the "Steps". This is the only difference.
1, Press once and drilling ==> out-layer press copper foil ==> and laser drilling, this is one step (1+N+1), as shown below
2. Press once and drilling ==> outlayer press copper foil ==> laser drilling ==> outer layer press copper foil ==> laser drilling again. Here is the two steps (i+N+i, i≧2). It mainly is to see how many times of laser drilling, it is the number of steps.
The Two-Step is divided into two types: stacked holes and staggered holes.

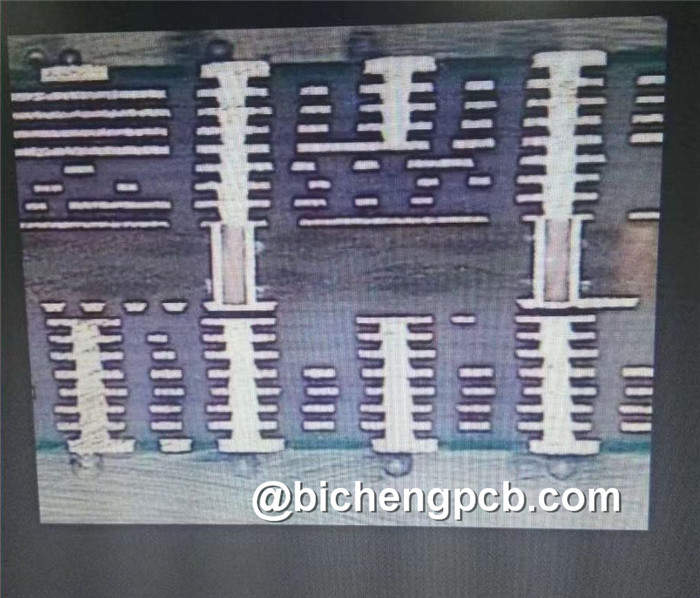

The following picture is an eight-layer stacked holes of Two-Step HDI ,3-6 layers are first pressed, then the outside 2nd layer and 7th layer are pressed up, processing laser drill first time. after then, press 1st and 8th layers up and laser drill again. It's two times of laser drill. Since these vias are superimposed (stacked), the process will be a little more difficult and the cost is a little higher.
The following picture is an eight-layer staggered holes of Two-Step HDI. . This processing method, like the upper eight-layer Two-Step stacked hole, also requires two times of laser drill. But laser drill are not stacked together, processing is much less difficult.
The Three-Step, Four-Step are by analogy.
In August of 2020, Bicheng announced that Eight-Step HDI PCB trial-production was successfully launched in our factory for the market.
