4 Layer High Frequency PCB Built On 2 Cores of 20mil RO4350B with Back Drill for GPS Tracker
  • name
  • name
  • name

4 Layer High Frequency PCB Built On 2 Cores of 20mil RO4350B with Back Drill for GPS Tracker

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-0068-V1.13
Number Of Layers:
4
Glass Epoxy:
RO4350B 20mil
Final Foil:
1.0
Final Height Of PCB:
1.4 Mm ±10%
Surface Finish:
Immersion Gold
Solder Mask Color:
No
Colour Of Component Legend:
NO
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description

4 Layer High Frequency PCB Built On 2 Cores of 20mil RO4350B with Back Drill for GPS Tracker

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)



Hello Everyone,

Warm greetings!

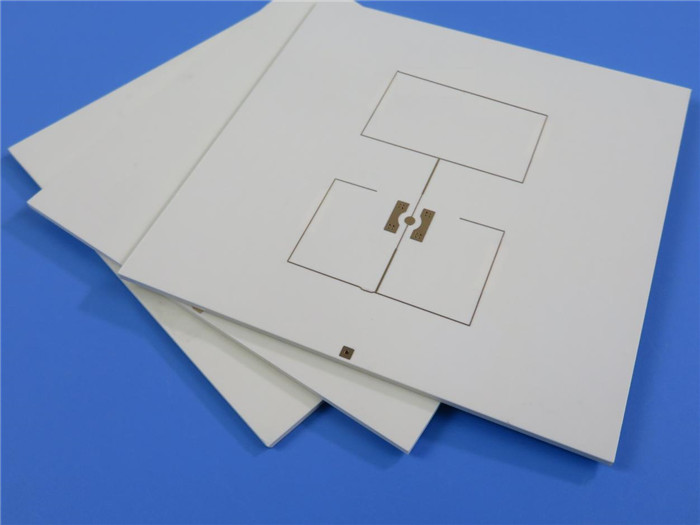

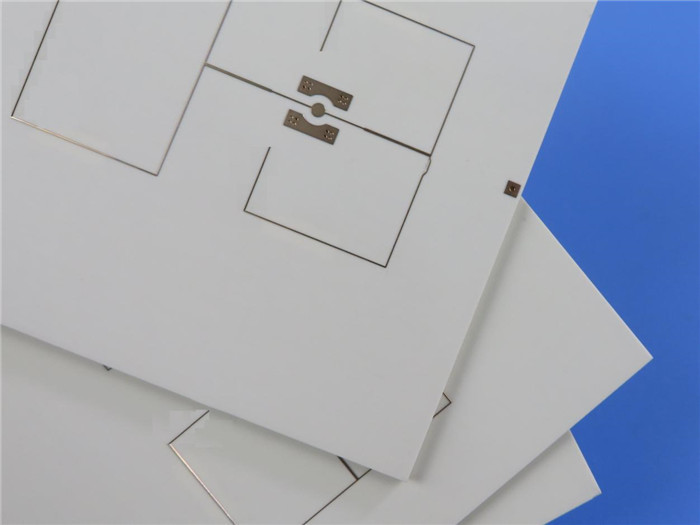

This type of 4 Layer Rogers PCB is built on 2 core of 0.508mm (20mil) RO4350B for the application of GPS tracker. This board, we used back drilling technology to achieve the “blind via”. See the stack-up.



4 Layer High Frequency PCB Built On 2 Cores of 20mil RO4350B with Back Drill for GPS Tracker 0



Back drilling can reduce noise interference and improve signal integrity. Using back drilling successfully reduced the difficulty of PCB fabrication and avoided the use of buried /blind via process.



The specifications of the PCB are as follows:

Base material: RO4350B 20 mil + RO4450B 4 mil

Layer count: 4 layers

Type: Mixed multiplier milled separately

Format: 70mm x 125mm = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 35 um/ Inner layer 18 um

Solder mask / Legend: Green / white

Final PCB height: 1.42 mm

Standard: IPC 6012 Class 2

Packing: Each 25 panels are packed for shipment.

Lead time: 12 working days

Shelf life: 6 months



Features and benefits

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Low thermal coefficient of dielectric constant;

3) Back drilling reducing noise interference;

4) ISO9001, ISO14001, UL certified manufacturing factory;

5) 30000 square meter month capability;



Applications

Multiplexer, Video transmission gear, Low noise block, Power divider



Parameter and data sheet



PCB SIZE 70mm x 125mm = 1 piece
BOARD TYPE Multlayer PCB
Number of Layers 4 Layers
Surface Mount Components YES
Through Hole Components YES

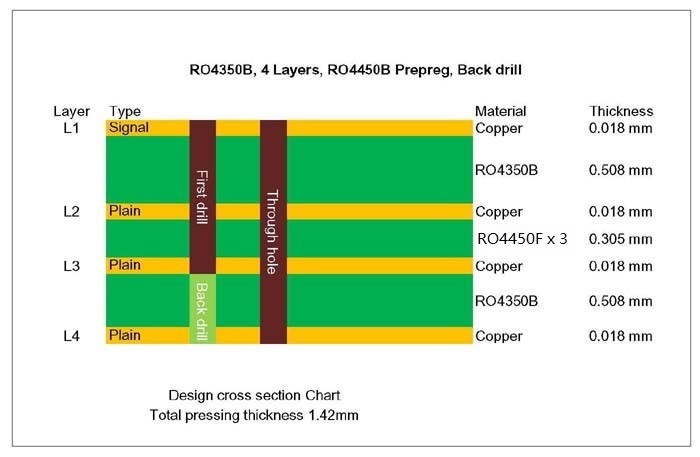

LAYER STACKUP Copper -----Signal 18um(0.5 oz)+plate TOP layer
RO4350B 0.508 mm
Copper -----Plain 0.018 mm
Prepreg RO4450F X 3, 0.305mm
Copper ----- Plain 0.018 mm
RO4350B 0.508 mm
Copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 5 mil
Minimum / Maximum Holes: 0.4 mm / 5.6 mm
Number of Different Holes: 12
Number of Drill Holes: 121
Number of Milled Slots: 0
Number of Internal Cutouts: NA
Impedance Control: N/A
Number of Gold finger: N/A
BOARD MATERIAL
Base Material: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1 oz
Final foil internal: 0.5 oz
Final height of PCB: 1.42 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
