TLY-5 High Frequency PCB
  • name
  • name
  • name

TLY-5 High Frequency PCB

MOQ: 1
Price: USD 2.88-6.99 per piece
Standard Packaging: Vacuum
Delivery Period: 4-5 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-xxxx-V1.32
Number Of Layers:
1 Layer, 2 Layer, 4 Layer.
Glass Epoxy:
TLF-35
Final Height Of PCB:
0.2mm, 0.3mm, 0.6mm, 0.8mm, 1.6mm
Final Foil External:
0.5oz, 1oz, 2oz
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Tin Etc.
Solder Mask Color:
Green, White, Black Etc.
Colour Of Component Legend:
Green, White, Black Etc.
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.88-6.99 per piece
Packaging Details:
Vacuum
Delivery Time:
4-5 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Hello Everyone,

Today, we're talking about high frequency PCB built on TLY material.



TLY laminates are manufactured with very lightweight woven fiberglass, which are from Taconic Company. They are more dimensionally stable than chopped fiber reinforced PTFE composites. Since they are more mechanically stable, it is suitable for high volume manufacturing.



The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies.

TLY-5 High Frequency PCB 0

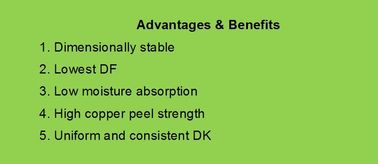

We benefit from its following advantages:

1. Dimensionally stable:

High volume fabrication becomes possible.

2. Lowest DF

In the low dielectric constant range, the dissipation factor is approximately 0.0009 at 10 GHz.

3. Low moisture absorption

It can work in severe environment.

4. High copper peel strength

It’s high up to 2.32, dimensionally stable.

5. Uniform and consistent DK

For most thicknesses, the dielectric constant can be specified anywhere within this range with a tolerance of +/-0.02

TLY-5 High Frequency PCB 1



Typical applications include:

Automotive radar

Cellular communications

Satellite communications

Power amplifiers, Filters, couplers

LNBs, LNAs, LNCs

Aerospace, avionics

Phased array antennas



There’re 6 members in TLY family. We have stock for TLY-5. Others are purchased according to clients’ requirement.



PCB Capability
PCB Material: Lightweight Woven Fiberglass
TLY Family (Dielectric constant ±0.02) TLY-5A (DK=2.17)
TLY-5A-L (DK=2.17)
TLY-5 (DK=2.20)
TLY-5-L (DK=2.20)
TLY-3 (DK=2.33)
TLY-3FF (DK=2.33)
Layer count: 1 Layer, 2 Layer, 4 Layer.
Copper weight: 0.5oz, 1oz, 2oz
PCB thickness: 0.2mm, 0.3mm, 0.6mm,
0.8mm, 1.6mm
PCB Size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin etc.
　 　



Bicheng specializes in providing you with prototype, small batches and mass production service.

If you have any questions, please feel free to contact us.

Thank you for your reading.



TLY-5 High Frequency PCB 2
