Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-300-V3.00
Number Of Layers:
2
Board Material:
Polyimide (PI)
Surface Cu Thickness:
1.0
Board Thickness:
0.2 Mm +/-10%
Surface Finish:
Immersion Gold
Solder Mask Color::
Yellow
Colour Of Component Legend:
N/A
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description
Structure of FPC
According to the number of layers of conductive copper foil, FPC can be divided into single layer circuit, double layer circuit, multi-layer circuit, double sided and so on.

Single-layer structure: the flexible circuit of this structure is the simplest structure of the flexible PCB. Usually the base material (dielectric substrates) + transparent rubber(adhesive) + copper foil is a set of purchased raw materials(semi-manufactures), the protective film and transparent glue are another kind of bought raw material. First, copper foil must be etched to obtain the required circuit, and the protective film should be drilled to reveal the corresponding pad. After cleaning, the two are combined by rolling. Then the exposed part of the pad electroplated gold or tin to protect. In this way, the big panel board will be ready. Generally also it’s stamped into the corresponding shape of the small circuit board. There is also no protective film directly on the copper foil, but printed resistance soldering coating, so that the cost will be lower, but the mechanical strength of the circuit board will become worse. Unless the strength requirement is not high and the price needs to be as low as possible, it is best to apply the protective film method.

Double layer structure: when the circuit is too complex to be wired, or copper foil is needed to shield the ground, it is necessary to choose a double layer or even a multilayer. The most typical difference between a multilayer and a single plate is the addition of a perforated structure to connect the layers of copper foil. The first process of transparent rubber + base material + copper foil is to make holes. Drill holes in the base material and copper foil first, clean and then plated with a certain thickness of copper. The subsequent fabrication process is almost the same as the single-layer circuit.

Double sided structure: both sides of the double sided FPC have pads, mainly used to connect other circuit boards. Although it and monolayer structure is similar, but the manufacturing process is very different. Its raw material is copper foil, protective film and transparent glue. The protective film should be drilled according to the position of the pad first, then the copper foil should be affixed, the pad and track lines should be etched and then the protective film of another drilled hole should be affixed.

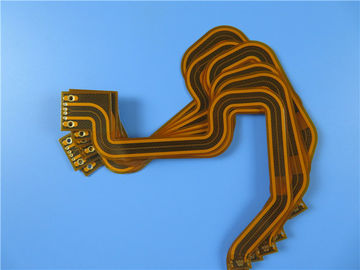

FPC Case: Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB
(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)

General description
This is a type of flexible PCB built on polyimide 76 micron substrate with 90 ohm impedance controlled on 0.15mm/0.3mm track and gap for the application of Wireless Broadband. It's standard 0.20 mm thick with yellow solder mask (coverlay) on both sides and immersion gold are on pads. FR-4 as stiffener is on the head and tail. The base material is used from Shengyi, entire board supplying 1 up flex per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 pieces are packed for shipment.

Parameter and data sheet
PCB Size: 116 X 108mm = 1 PCS
Number of Layers 2 layers
Board Type Flexbile PCB
Board Thickness 0.2mm +/-10%
Stackup TOP FR-4 Steffener 0.8mm
PI coverlay 0.025mm
Copper top 0.035mm finish
Polyimide substrate 0.076mm
Copper top 0.035mm finish
PI coverlay 0.025mm
Board Material Supplier Shengyi
Tg Value of Board Material 60℃

PTH Cu thickness 20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 um
Stiffener FR-4 0.8mm

Type of Silkscreen Ink N/A
Supplier of Silkscreen N/A
Color of Silkscreen N/A
Number of Silkscreen N/A

Minimum via (mm) 0.3
Minimum Trace (mil) 5.90
Minimum Gap(mil) 11.8

Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2
Type of artwork to be supplied email file, Gerber RS-274-X, PCBDOC etc
Service area Worldwide, Globally.


Features and benefits
Excellent flexibility;
Reducing the volume;
Weight reduction;
Consistency of assembly;
Increased reliability;
Powerful PCB capabilities support your research and development, sales and marketing;
Delivery on time with higher than 98% on-time-delivery rate;
Team with passion, discipline, responsibility and honesty;
No minimum order quantity. 1 piece is available;

Application
Flexible flat cable, Industrial control temperature controller soft board, medical equipment controller, automobile GPS navigation flex board, tablet keypad flex board, display backlight


Why choose us?
1) Focus on your core competencies: We’ve deeply known it is full of fierce competition for our customers in the market. You can focus on such important competencies as research and development, sales and marketing based on our professional performance and skilled services that exceeding your expectation.

2) Cutting-edge technology: it is rational for a small and medium-sized customer to hanker after the latest equipment and manufacturing expertise for its PCBs. By the partnerships
with Bicheng PCB, you gain access to reach your expectation with our 3 factory bases with over 26,000 square meters.

4) Save the cost of production: Production cost is one of the key points of our customers’ product competitiveness. Bicheng PCB have been striving to reduce its manufacturing cost from equipment introduce, worker training and technology improvement to increase their profitability. Customers are satisfied with our cost savings but without quality loss.

5) Avoid hassle: It’s an upset matter when quality problem hassling you. Bicheng engineering design prevents problem from occurring in pre-production. You will not get headache with Bicheng prototypes, small orders and volume production. Our rate of customer complaint is less than 1% and will be solved satisfactory.

6) Save time: Market requires the products updating quickly. Bicheng PCB always works fast and flexible to save the time of production from prototype to standard production,
quick turn-around or scheduled deliveries.

7) An excellent team: Bicheng is trustworthy partner with passion, discipline, responsibility and honesty. We have a team of experienced sales persons and skilled customer services. Do not change your supplier. If change is must, Bicheng is the right one for you.



Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB 0
Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB 1
