Detailed Product Description
Number Of Layers: 1 Board Material: Polyimide 25µm
Surface Cu Thickness: 1.0 Board Thickness: 0.15 Mm +/-10%
Surface Finish: Immersion Gold Solder Mask Color:: Yellow
Colour Of Component Legend: White Test: 100% Electrical Test Prior Shipment

Brief Introduction of FPC
Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.

FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.

Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.

The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.

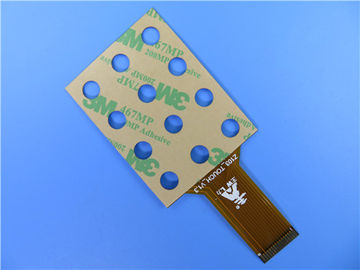

FPC Case: Flexible PCB Circuit Board With 3M Tape for Keypad
(FPC’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of flexible printed circuit for the application of counter keypad. It’s a single layer FPC at 0.15mm thick. The base laminate is from Shengyi, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting head.

Parameter and data sheet
Size of Flexible PCB 64.23 X 35.74mm
Number of Layers 1
Board Type Flexible PCB
Board Thickness 0.15mm
Board Material Polyimide 25µm
Board Material Supplier Shengyi
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide Stiffner, 3M Tape
Stiffener Thickness 0.2mm

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2

Features and benefits
Excellent flexibility
Reducing the volume
Weight reduction
Consistency of assembly
Increased reliability
Controllability of electrical parameter design
The end can be whole soldered
Material optionality
Low cost
Continuity of processing
Great customer service
Delivery on time: >98%



Application
Contact belt of inkjet printer, Industrial control temperature controller soft board, tablet keypad flex board
