Single Layer Flexible Circuit Board with Polyimide Stiffener
  • name
  • name
  • name
  • name

Single Layer Flexible Circuit Board with Polyimide Stiffener

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-255-V2.55
Number Of Layers:
1
Board Material:
Polyimide (PI) 25 Um
Surface Cu Thickness:
1.0
Board Thickness:
0.1mm +/-10%
Surface Finish:
Immersion Gold
Solder Mask Color::
Yellow
Colour Of Component Legend:
White
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description
Clarifications of FPC
According to the combination of base material and copper foil, flexible circuit board can be divided into two types: flexible board with adhesive and flexible board without adhesive. The price of non-adhesive flexible PCB is much higher than that of adhesive flexible PCB, but its flexibility, bonding force between copper foil and substrate and flatness of solder are also better than that of adhesive flexible PCB. So it is only used in the high demand situations, such as the: COF (CHIP ON FLEX, flexible board with bare chip, the high flatness of the pad) and so on. Because its price is high, most of the flexible PCBs used in the market are still adhesive flexible circuit board. Because the flexible circuit board is mainly used in the situation where bending is required, if the design or process is not reasonable, it is easy to produce micro-cracks, welding and other defects.

Economy of using FPC
If the circuit design is relatively simple, the total volume is small, and the space is suitable, the traditional internal connection is much cheaper. Flexible circuits are a good design option if the circuit is complex, processes many signals or has special electrical or mechanical requirements. When the size and performance of applications exceed the capacity of rigid circuits, flexible assembly is the most economical. A 12mil pad with a 5mil through hole and a flexible circuit with 3mil lines and spacing can be fabricated on a thin film. Therefore, it is more reliable to mount the chip directly on the film. There is no flame retardant that could be an ion source. These films may be protective and solidified at higher temperatures to obtain higher glass transition temperatures. Flexible materials are less costly than rigid materials because they are free of connectors.

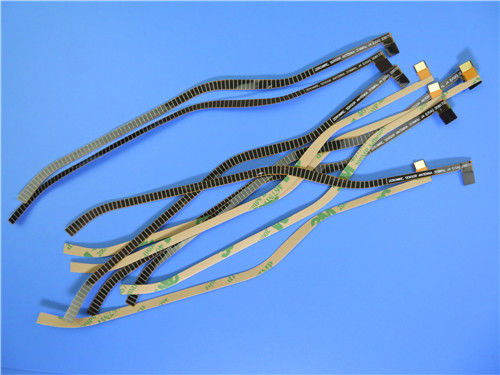

FPC Case: Single Layer Flexible Circuit Board with Polyimide Stiffener
(FPC’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of flexible printed circuit for the application of antenna. It’s a single layer board at 0.15mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. 3M tape is applied on the back side.

Parameter and data sheet
Number of Layers 1
Board Type Flexbile cirucit
Board Thickness 0.1mm +/-10%
Board Material Polyimide (PI) 25um
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness N/A
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Coverlay Colour Yellow
Number of Coverlay 1
Thickness of Coverlay 25 um
Stiffener 200 um
3M Tape Yes

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 2

Mininum Trace (mil) N/A
Minimum Gap(mil) N/A

Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2


Features and benefits
Excellent flexibility
Reducing the volume
Weight reduction
Consistency of assembly
Increased reliability
Controllability of electrical parameter design
The end can be whole soldered
Material optionality
Low cost
Continuity of processing
Small quantity order is accepted
Meeting your printed circuit board needs from PCB prototyping to mass volume production.


Application
Capacitive touch screen / panel, Industrial control temperature controller soft board, consumer card reader soft board
