Dual Layer Flexible PCB Built on Polyimide With PI Stiffener
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Dual Layer Flexible PCB Built on Polyimide With PI Stiffener

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-252-V2.52
Number Of Layers:
2
Glass Epoxy::
Polyimide (PI) 50 Um
Final Foil:
1.0
Final Height Of PCB::
0.15mm +/-10%
Surface Finish:
Immersion Gold
Solder Mask Color::
Yellow
Colour Of Component Legend:
White
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description
Clarifications of FPC
According to the combination of base material and copper foil, flexible circuit board can be divided into two types: flexible board with adhesive and flexible board without adhesive. The price of non-adhesive flexible PCB is much higher than that of adhesive flexible PCB, but its flexibility, bonding force between copper foil and substrate and flatness of solder are also better than that of adhesive flexible PCB. So it is only used in the high demand situations, such as the: COF (CHIP ON FLEX, flexible board with bare chip, the high flatness of the pad) and so on. Because its price is high, most of the flexible PCBs used in the market are still adhesive flexible circuit board. Because the flexible circuit board is mainly used in the situation where bending is required, if the design or process is not reasonable, it is easy to produce micro-cracks, welding and other defects.

Economy of Using FPC
If the circuit design is relatively simple, the total volume is small, and the space is suitable, the traditional internal connection is much cheaper. Flexible circuits are a good design option if the circuit is complex, processes many signals or has special electrical or mechanical requirements. When the size and performance of applications exceed the capacity of rigid circuits, flexible assembly is the most economical. A 12mil pad with a 5mil through hole and a flexible circuit with 3mil lines and spacing can be fabricated on a thin film. Therefore, it is more reliable to mount the chip directly on the film. There is no flame retardant that could be an ion source. These films may be protective and solidified at higher temperatures to obtain higher glass transition temperatures. Flexible materials are less costly than rigid materials because they are free of connectors.

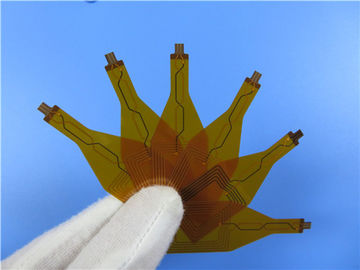

FPC Case: Dual Layer Flexible PCB Built on Polyimide With PI Stiffener
(FPC’s are custom-made products, the picture and parameters shown are just for reference)

General description
This is a type of flexible printed circuit (FPC) for the application of Wi Fi Antenna. It’s a 2 layer flex board at 0.15mm thick. It contains yellow coverlay (solder mask) and without silkscreen on entire board, and immersion gold is applied on pads. Polyimide as stiffener is applied on the connector part. The base laminate is from Shengyi and they're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 200 pieces are packed for shipment.

Parameter and data sheet
Number of Layers 2
Outline Dimension 21.15 x 58.93mm = 1PCS
Board Type Flexible Circuit
Board Thickness 0.15mm +/-10%
Board Material Polyimide (PI) 50 um
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 um
Stiffener 200 um

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Mininum Trace (mil) 4 mil
Minimum Gap(mil) 4 mil

Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2


Features and benefits
Excellent flexibility;
Reducing the volume;
Weight reduction;
8000 types of PCB per month;
Quick CADCAM checking and free PCB quotation;
No minimum order quantity. 1 piece is available;
Volume Production capability;
On-time service;
More than 16 years of experience;

Application
Keypad FPC; Toy lamp strip; Display backlight; Flex keyboard for mobile phone keys; POS antenna soft board; LCD TV soft board; Digital camera soft board.



About Us
Bicheng PCB, a unique printed circuit board supplier based in Shenzhen China serves worldwide customers since it’s born in 2003. At Bicheng, every batch of PCB goes through electrical test, AOI inspection, high voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc. Finally it is like a beautiful gift to be delivered to your hands.

Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified

Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board

Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
