Rogers Double Sided High Frequency PCB Built On 32mil RO4003C
  • name
  • name
  • name

Rogers Double Sided High Frequency PCB Built On 32mil RO4003C

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-115-V1.15
Number Of Layers:
2
Glass Epoxy::
RO4003C 32mil (0.813mm)
Final Foil:
1.0
Final Height Of PCB::
0.82 Mm ±10%
Surface Finish:
Immersion Gold
Solder Mask Color::
Green
Colour Of Component Legend:
White
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description

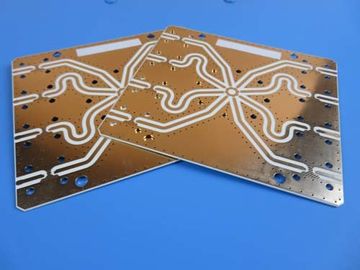

Double Sided High Frequency PCB Built On 32mil RO4003C

General description
This is a type of double sided RF PCB built on 0.813mm (32mil) RO4003C for the application of RF amplifiers.

Basic specifications
Base material: RO4003C 32mil (0.813mm)
Dielectric constant: 3.38+/-0.05
Layer count: 2 layers
Type: Through holes
Format: 110mm x 110mm = 1 type = 1 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm
Solder mask | Legend: Green | White
Final PCB height: 0.82 mm
Standard: IPC 6012 Class 2
Packing: 20 pieces are packed for shipment.
Lead time: 7 working days
Shelf life: 6 months

Features and benefits
RO4003C exhibits a stable dielectric constant over a broad frequency range. This makes it an ideal substrate for broadband applications;
The characteristic of low dielectric loss makes the signal loss at a lower level, which makes the signal transmission of the whole equipment excellent;
Tg > 280 ℃;
Engineering design prevents problems from occurring in pre-production;
ISO9001, ISO14001, UL certified manufacturing factory;
AOI inspection;
More than 16 years of PCB experience;


Applications
UHF radio, VHF radio, Indoor wall hanging antenna, Combiner





PCB Capability 2021

Parameter Value
　Layer Counts　 1-32
　Substrate Material FR-4(including High Tg 170, High CTI>600V); Aluminum based; Copper based; Rogers RO4350B, RO4003C, RO3003, RO3006, RO3010, RO3210 etc.; Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010 etc..; Taconic TLX-8, TLY-5, RF-35TC, TLF-35 etc..; Arlon AD450, AD600 etc; PTFE F4B DK2.2, DK2.65 etc..; Polyimide and PET.
　Maximum Size 　Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
　Board Outline Tolerance 　±0.0059" (0.15mm)
　PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm) 　±8%
Thickness Tolerance(t＜0.8mm) 　±10%
　Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
　Minimum Track 0.003" (0.075mm)
　Minimum Space 　0.003" (0.075mm)
　Outer Copper Thickness 　35µm--420µm (1oz-12oz)
　Inner Copper Thickness 　17µm--350µm (0.5oz - 10oz)
　Drill Hole(Mechanical) 0.0059" - 0.25" (0.15mm--6.35mm)
　Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
　Registration (Mechanical) 0.00197" (0.05mm)
　Aspect Ratio 　12:1
　Solder Mask Type 　LPI
　Min Soldermask Bridge 0.00315" (0.08mm)
　Min Soldermask Clearance 0.00197" (0.05mm)
　Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance 　±10%
　Surface Finish HASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger





Rogers Double Sided High Frequency PCB Built On 32mil RO4003C 0
