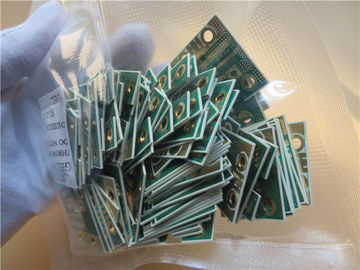

Rogers High Frequency PCB Built on 30mil RO4350B With Immersion Gold
  • name
  • name
  • name
  • name

Rogers High Frequency PCB Built on 30mil RO4350B With Immersion Gold

MOQ: 1
Price: USD 2.99-9.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-098-V0.98
Number Of Layers:
2
Glass Epoxy::
RO4350B Tg288℃, Er<3.66, RogersCorp
Final Foil:
1.0
Final Height Of PCB::
0.8 Mm ±10%
Surface Finish:
Immersion Gold (37.1% ) 0.05µm Over 3µm Nickel
Solder Mask Color::
Green
Colour Of Component Legend:
White
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-9.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description
High Frequency PCB Built on 30mil RO4350B With Immersion Gold
(PCB’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of 2-layer PCB built on 30mil RO4350B substrate with Tg 280°C for the application of Splitter HDMI. It's 0.8 mm thick with white silkscreen (Taiyo) on green solder mask (Taiyo) and immersion gold on pads. The base material is from Rogers supplying single up PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 boards are packed for shipment.

Features and benefits
Excellent high frequency performance due to low dielectric tolerance and loss.
Delamination of copper foil will not be caused by the change of cold and heat due to the consistency with the thermal expansion coefficient of copper foil.
The characteristic of low dielectric loss makes the signal loss at a lower level, which makes the signal transmission of the whole equipment excellent.
ENIG has good oxidation resistance and good heat dissipation.
DDU Door to door shipment with competitive shipping cost,
Whole fabrication processes are totally controlled.
Fast and flexible to save the time of production from prototype to standard production
Small quantity order is accepted
UL recognized and RoHS Directive-compliant


Application
Mixer, Radar sensors, RF Switches, Automatic gate induction, Antenna combiner, Transmitter combiner


Parameter and data sheet
PCB SIZE 35 x 29 mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
RO4350B 0.762mm
copper ------- 35um(1 oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 6 mil / 7 mil
Minimum / Maximum Holes: 0.3 mm / 5.6 mm
Number of Different Holes: 3
Number of Drill Holes: 325
Number of Milled Slots: 0
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg288℃, er<3.66, RogersCorp
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 0.8 mm ±0.08
PLATING AND COATING
Surface Finish Immersion gold (37.1% ) 0.05µm over 3µm nickel
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Rogers High Frequency PCB Built on 30mil RO4350B With Immersion Gold 0
