TLX-8 High Frequency PCB

Products

TLX-8 High Frequency PCB

MOQ:	1
Price:	USD 2.99-9.99 PER PIECE
Standard Packaging:	Vacuum
Delivery Period:	10 working days
Payment Method:	T/T, Western Union
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Technologies Limited

Certification

Model Number

BIC-XXXX-V1.29

Number Of Layers:

1 Layer, 2 Layer, Multilayer, Hybrid Type (Mixed)

Glass Epoxy::

TLX-0, TLX-9, TLX-8, TLX-7 And TLX-6

Final Foil:

0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

Final Heig1.0-5.0mmht Of PCB::

10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)

Surface Finish:

Bare Copper, HASL, ENIG, Silver, OSP,etc.

Solder Mask Color::

Green, Black, Blue, Yellow, Red Etc.

Colour Of Component Legend:

Green, Black, Blue, Yellow, Red Etc.

Test:

100% Electrical Test Prior Shipment

Minimum Order Quantity:

Price:

USD 2.99-9.99 PER PIECE

Packaging Details:

Vacuum

Delivery Time:

10 working days

Payment Terms:

T/T, Western Union

Supply Ability:

45000 pieces per month

Product Description

Hello Everyone,

Today, we're going to talk about TLX high frequency PCB.

TLX is a series of PTFE fiberglass laminates launched by Taconic Company. It offers reliability in a wide range of RF applications. This material is versatile due to its 2.45 - 2.65 DK range. It is suitable for low layer count microwave PCBs.

Let's firstly see the advantages that we benefit from.

1. Dimensionally stable:

It can experience high level of vibration, such as space launch.

2. Excellent thermal properties:

It can experience high temperature exposure, such as working in engine modules.

3. Low and stable dielectric constant and tightly controlled DK.

Ranging 2.45 to 2.65 at tolerance +/-0.04

4. Low moisture absorption

Undergoing extreme severe environments, such as working at sea

5. Flame retardant grade, UL 94 VO

6. Low DF

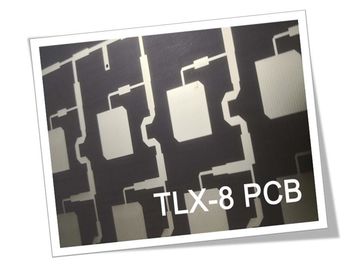

TLX-8 High Frequency PCB 0

TLX is ideal material for use in the application of following list due to its wide DK range and available thickness and copper cladding.

1. Radar systems,

2. Mobile communications,

3. Microwave test equipment,

4. Microwave transmission devices,

5. Antennas,

6. Mixers, splitters, filters and combiners

TLX-8 High Frequency PCB 1

There’re TLX-0, TLX-9, TLX-8, TLX-7 and TLX-6 in TLX family. Often it’s used in single layer board, double layer board etc. Surface finish is mainly with bare copper, hot air level and immersion gold.

PCB Capability
PCB Material:	PTFE Fiberglass
TLX Family (Dielectric constant ±0.04)	TLX-0 (DK=2.45)
	TLX-9 (DK=2.50)
	TLX-8 (DK=2.55)
	TLX-7 (DK=2.60)
	TLX-6 (DK=2.65)
Layer count:	1 Layer, 2 Layer, 4 Layer.
Copper weight:	0.5oz, 1oz, 2oz
PCB thickness:	0.5mm, 0.8mm, 1.0mm,
	1.5mm, 3.2mm
PCB Size:	≤400mm X 500mm
Surface finish:	Bare copper, HASL, ENIG, Immersion tin etc.

TLX-8 High Frequency PCB 2

The basic colour of TLX high frequency PCB is brown and black.

We specialize in providing you with prototype, small batches and mass production service.

If you have any requirements on this kind of PCB, please feel free to contact us.

Thank you for your reading.
