RF-35TC High Frequency PCB Board

Hello Everyone,

Today, we introduce high frequency PCB built on RF-35TC.

RF-35TC is a PTFE based, ceramic filled fiberglass high frequency material from Taconic company.

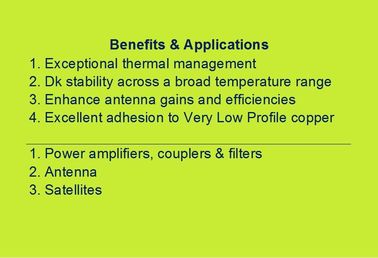

First, take a look at some of its advantages:

Exceptional thermal management

This material offers superior heat dissipation performance, so it's a type of thermally conductive low loss laminate. It's best suited for high power applications. Heat dissipates away from both transmission line on PCB and surface mount components such as capacitor etc.

Similarly, Dk stability is across a broad temperature range; antenna gains and efficiencies are enhanced, RF-35TC bonds very well to Low Profile copper, reducing insertion loss.

Going back to the table, let’s take a look at its main applications:

1. Power amplifiers: The extremely low Df of 0.0011 and high thermal conductivity are particular suited for power amplifier applications.

2. Couplers: The Low Z axis CTE and temperature stable Dk are critical for both narrow and broad band overlay couplers.

3. Filters: The low X and Y CTE values are crucial for maintaining critical distances between trace elements in a printed filter

In addition, It’s also widely used in antennas, satellite equipment and so on. Next, let’s take a look at our PCB capabilities.

At present, our company can provide single sided PCB, double sided PCB, multi-layer PCB and hybrid PCB.

The copper thickness is mainly 1oz and 2oz.

According to different uses, there are many kinds of thickness to choose from, such as 0.3mm, 0.6mm, 0.8mm and 1.6mm.

The color of solder mask is available in green, red, black, white and blue etc.

Our maximum PCB size is within 400X 500mm.

A variety of surface finishes are available, such as bare copper, Hot air level, immersion gold and immersion tin .

The basic colour of RF-35TC PCB is brown and grey.

Our company focuses on prototypes, small batch and mass production. Should you have any questions, please feel free to contact us.

Thank you for reading.
