RO4350B, 4003C; Rogers 5880, 5870, 6002, 6010, 6006, 6035; RO3003, RO3035, RO3006, RO3010, RO3210,RO3203
TLX-8, TLX-6, TLX-9, TLX-0, TLX-7, TLY-3, TLY-5, RF-35TC, RF-60TC, RF-35A2, RF-60A, AD450, AD600, TMM4, TC350
 |
| Place of Origin: | China |
| Brand Name: | Bicheng Enterprise |
| Certification: | UL |
| Model Number: | BIC-002-V0.2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 2.99-6.99 PER PIECE |
| Packaging Details: | Vacuum |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 45000 pieces per month |
| Number Of Layers: | 2 | Glass Epoxy:: | RO4350B 20mil (0.508mm), Tg 288℃ |
|---|---|---|---|
| Final Foil: | 1.5 Oz | Final Height Of PCB:: | 0.6 Mm ±10% |
| Surface Finish: | Immersion Gold (81.1%) 2µ" Over 100µ" Nickel | Solder Mask Color:: | Green |
| Colour Of Component Legend: | White | Test: | 100% Electrical Test Prior Shipment |

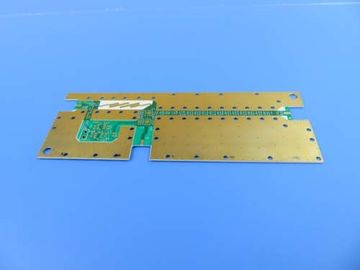

High Frequency PCB RO4350B 20 mil 2 Layer With Immersion Gold
(PCB's are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of high frequency PCB built on RO4350B for the application of RF module. It's a 2 layer RF PCB board at 0.6 mm thick. It's immersion gold finish with solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards are packed for shipment.
Features and benefits
Low water absorbability influences dielectric constant and dielectric loss less at damp.
Heat resistance, chemical resistance, impact strength and peeling strength are good.
The temperature coefficient of dielectric constant is among the lowest of any circuit board material, making it ideal for temperature sensitive applications.
ENIG has good oxidation resistance and good heat dissipation.
DDU Door to door shipment with competitive shipping cost,
Engineering design prevents problems from occurring in pre-production.
On-time service
More than 15 years' experience
High technology
Application
Antenna, Multicoupler combiner, Indoor wall hanging antenna, Duplexer
Parameter and data sheet
| PCB SIZE | 16 x 83mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4350B 20mil (0.508mm) | |
| copper ------- 35um(1oz)+plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.98mil/6.18mil |
| Minimum / Maximum Holes: | 0.3/3.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 431 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | no |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 20mil (0.508mm), Tg 288℃ |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (81.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
About Us
Bicheng PCB, a unique printed circuit board supplier based in Shenzhen China serves worldwide customers since it’s born in 2003. At Bicheng, every batch of PCB goes through electrical test, AOI inspection, high voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc. Finally it is like a beautiful gift to be delivered to your hands.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board
Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
