High Frequency PCB RO4350B 30 mil 2 Layer with Immersion Gold
  • name
  • name
  • name

High Frequency PCB RO4350B 30 mil 2 Layer with Immersion Gold

MOQ: 1
Price: USD 2.99-6.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-001-V0.1
Number Of Layers:
2
Glass Epoxy::
RO4350B 30mil (0.762mm), Tg 288℃
Final Foil:
1 Oz
Final Height Of PCB::
0.8 Mm ±10%
Surface Finish:
Immersion Gold (16.2%) 2 Micoinch Over 100 Microinch Nickel
Solder Mask Color::
Green
Colour Of Component Legend:
White
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-6.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description

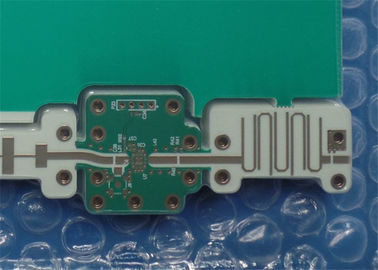

High Frequency PCB RO4350B 30 mil 2 Layer with Immersion Gold
(PCB's are custom-made products, the picture and parameters shown are just for reference)

General description
This is a type of high frequency PCB built on RO4350B for the application of balanced amplifier. It's a 2 layer RF PCB board at 0.8 mm thick. It's immersion gold finish with solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards are packed for shipment.

Features and benefits
The dielectric constant (DK) is low and stable, so the signal transmission is good without delay.
The characteristic of low dielectric loss makes the signal loss at a lower level, which makes the signal transmission of the whole equipment excellent.
Delamination of copper foil will not be caused by the change of cold and heat due to the consistency with the thermal expansion coefficient of copper foil.
Immersion gold has excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP mounted components to reduce failure rate during assembly and soldering.
UL, ISO certified PCB manufacturing factory.
Make delivery on time keeping 98% on-time-delivery rate.
Eligible products rate of first production: >95%
Experienced sales persons provide skilled customer services.
Fast and flexible to save the time of production from prototype to standard production

Application
Amplifier, Multicoupler, antenna, Sound control switch induction, Combiner

Parameter and data sheet
PCB SIZE 193 x 192mm=1PCS
BOARD TYPE
Number of Layers Double sided PCB, 2 Layer PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 17.8um(0.5oz)+plate TOP layer
RO4350B 30mil (0.762mm)
copper ------- 17.8um(1oz)+plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 11.97mil
Minimum / Maximum Holes: 0.3/2.8mm
Number of Different Holes: 2
Number of Drill Holes: 195
Number of Milled Slots: 5
Number of Internal Cutouts: 0
Impedance Control No
BOARD MATERIAL
Glass Epoxy: RO4350B 30mil (0.762mm), Tg 288℃
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 0.8mm ±0.1
PLATING AND COATING
Surface Finish Immersion Gold (16.2%) 2 micoinch over 100 microinch nickel
Solder Mask Apply To: Top and Bottom, 12micron Minimum
Solder Mask Color: Green, NAN YA, LP-4G/G-05
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing, Fiducial Marks
MARKING
Side of Component Legend TOP
Colour of Component Legend White, S-380W, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH), via tented
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
