2 Layer RF PCB Built On 10mil (0.254mm) RO4350B Substrate With ENIG
  • name
  • name

2 Layer RF PCB Built On 10mil (0.254mm) RO4350B Substrate With ENIG

MOQ: 1
Price: USD 2.99-6.99 PER PIECE
Standard Packaging: Vacuum
Delivery Period: 5-6 working days
Payment Method: T/T, Western Union
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise
Certification
UL
Model Number
BIC-0109-V1.09
Number Of Layers:
2
Glass Epoxy::
RO4350B Tg280℃, Er<3.48, Rogers Corp
Final Foil:
1 Oz
Final Height Of PCB::
0.3 Mm ±10%
Surface Finish:
Immersion Gold
Solder Mask Color::
N/A
Colour Of Component Legend:
Black
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-6.99 PER PIECE
Packaging Details:
Vacuum
Delivery Time:
5-6 working days
Payment Terms:
T/T, Western Union
Supply Ability:
45000 pieces per month
Product Description
2 Layer RF PCB Built On 10mil (0.254mm) RO4350B Substrate With ENIG

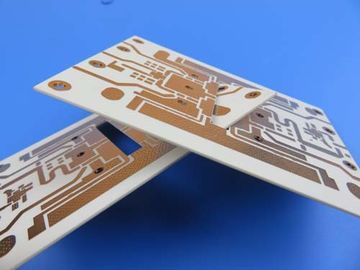

(PCB’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of 2 layer high frequency PCB built on 10mil (0.254mm) RO4350B substrate for the application of RA power detector.

Basic specifications
Base material: RO4350B 0.01" (0.254mm)
Layer count: 2 layers
Type: Individual PCB
Format: 102mm x 102mm = 1 type = 1 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 0 μm
Solder mask / Legend: No / black
Final PCB height: 0.3 mm
Standard: IPC 6012 Class 2
Packing: 25 pieces are packed for shipment.
Lead time: 10 working days
Shelf life: 6 months

Features and benefits
Excellent high frequency performance due to low dielectric tolerance and loss;
Stable electrical coefficient of dielectric constant;
Excellent dimensional stability;
SMT process is resistant to reflow soldering, resistant to rework;
ISO9001, ISO14001, UL certified manufacturing factory;
PCB manufacturing is strictly as per required specifications;
Prototype PCB capability;
Volume Production capability;

Application
LNA, multicoupler combiner, Low Noise Block, I/O Amplifier

Parameter and data sheet
PCB SIZE 102 x 102mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18µm(0.5 oz)+plate TOP layer
RO4350B 0.254mm
copper ------- 18µm(0.5 oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 6.9 mil / 4.3 mil
Minimum / Maximum Holes: 0.4 mm / 2.3 mm
Number of Different Holes: 8
Number of Drill Holes: 32
Number of Milled Slots: 0
Number of Internal Cutouts: NO
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 0.3 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Both top and bottom sides
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
