Hybrid Printed Circuit Board Mixed Material PCB On 10mil RO4350B + FR4

Products

Hybrid Printed Circuit Board Mixed Material PCB On 10mil RO4350B + FR4

MOQ:	1
Price:	USD2.99-9.99 Per Piece
Standard Packaging:	Vacuum
Delivery Period:	5-6 working days
Payment Method:	T/T, Paypal
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Enterprise Limited

Certification

Model Number

BIC-0102-V1.02

Glass Epoxy:

RO4350B Tg280℃, Er<3.48, Rogers Corp; FR-4 IT158

Final Height Of PCB:

1.6 Mm ± 10%

Final Foil External::

1.5 Oz

Surface Finish:

Immersion Gold

Solder Mask Color::

Green

Colour Of Component Legend:

White

Number Of Layers:

Test:

100% Electrical Test Prior Shipment

Minimum Order Quantity:

Price:

USD2.99-9.99 Per Piece

Packaging Details:

Vacuum

Delivery Time:

5-6 working days

Payment Terms:

T/T, Paypal

Supply Ability:

45000 pieces per month

Product Description

Hybrid Printed Circuit Board Mixed Material PCB On 10mil RO4350B + FR4

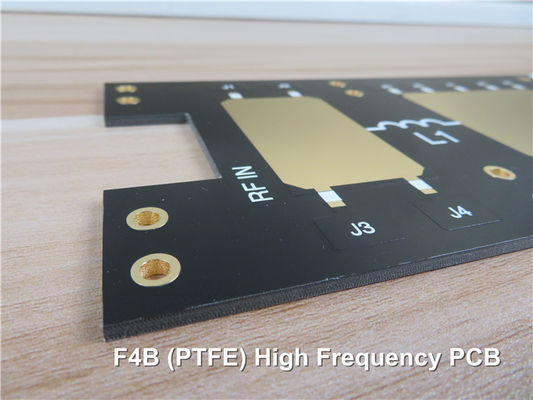

(PCB’s are custom-made products, the picture and parameters shown are just for reference)

General description

This is a type of hybrid multilayer PCB (mixed material PCB) built on 10 mil RO4350B and FR-4 substrates for the application of Fleet GPS Tracking. It's standard 1.60 mm thick with 1oz copper each layer, white silkscreen over green solder mask covering both sides. Immersion gold is plated on pads and vias are tented. The base material is used from Rogers Corp. and ITEQ, entire board supplying 1 up PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

Features and benefits

The dielectric constant (DK) is low and stable, so the signal transmission is good without delay;

The temperature coefficient of dielectric constant is among the lowest of any circuit board material, making it ideal for temperature sensitive applications;

SI performance improvement over the stack-ups with all FR4 board;

Cost reduction over stack-ups with all low loss material;

Long storage time, it can be stored for more than 1 year in vacuum bag;

High solderability, no stressing of circuit boards and less contamination of PCB surface;

RoHS materials;

Eligible products rate of first production: >95%

ISO9001, ISO14001, TS16949, UL Certified;

Application

Satellite antenna, transmitter combiner, Sound control switch induction, combiner

Parameter and data sheet

PCB SIZE	195 x 82mm=1PCS
BOARD TYPE	Multilayer PCB
Number of Layers	4 layers
Surface Mount Components	YES
Through Hole Components	YES
LAYER STACKUP	copper ------- 35um(1 oz)+plate TOP layer
	RO4350B 0.254mm
	copper ------- 35um
	FR-4 1.0mm
	copper ------- 35um
	FR-4 0.254mm
	copper ------- 35um(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	10 mil / 4.9 mil
Minimum / Maximum Holes:	0.4 mm / 2.2 mm
Number of Different Holes:	2
Number of Drill Holes:	79
Number of Milled Slots:	0
Number of Internal Cutouts:	NO
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO4350B Tg280℃, er<3.48, Rogers Corp; FR-4 IT158
Final foil external:	1.5 oz
Final foil internal:	1 oz
Final height of PCB:	1.6 mm ±10%
PLATING AND COATING
Surface Finish	Immersion gold
Solder Mask Apply To:	TOP, 12micron Minimum
Solder Mask Color:	Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	Both top and bottom sides
Colour of Component Legend	White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

About Us

Bicheng PCB, a unique printed circuit board supplier based in Shenzhen China serves worldwide customers since it’s born in 2003. At Bicheng, every batch of PCB goes through electrical test, AOI inspection, high voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc. Finally it is like a beautiful gift to be delivered to your hands.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

Variety of PCB technology to meet the market demands

HDI board

Heavy copper board

Hybrid material board

Blind via board

High frequency board

Metal core board

Immersion gold board

Multilayer board

Backplane board

Gold finger board

Comprehensive sales service presale, in sale and after sale.

Quick CADCAM checking and free PCB quotation

Free-of-charge PCB panelization

Prototype PCB capability

Volume Production capability

Quick turn-around samples

Free-of-charge PCB test

Solid carton packing
