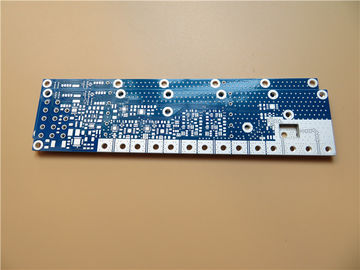

4 Layer Hybrid PCB With RO4003C + FR4 Combined High Frequency PCB
  • name
  • name
  • name
  • name
  • name
  • name

4 Layer Hybrid PCB With RO4003C + FR4 Combined High Frequency PCB

MOQ: 1
Price: USD2.99-9.99 Per Piece
Standard Packaging: Vacuum
Delivery Period: 5-6 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0101-V1.01
Glass Epoxy:
RO4003C 0.203 Mm (8 Mil) And FR-4 0.20 Mm Combined
Final Height Of PCB:
1.1 Mm ± 10%
Final Foil External::
1 Oz
Surface Finish:
Immersion Silver
Solder Mask Color::
Blue
Colour Of Component Legend:
White
Number Of Layers:
4
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD2.99-9.99 Per Piece
Packaging Details:
Vacuum
Delivery Time:
5-6 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description
4 Layer Hybrid PCB With RO4003C + FR4 Combined
(PCB’s are custom-made products, the picture and parameters shown are just for reference)



General description
This is a type of high frequency PCB built on RO4003C and FR4 combined for the application of analogue transmitter. It's a 4 layer RF PCB board at 1.1 mm thick. It's immersion silver finish with blue solder mask and white silkscreen. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards are packed for shipment.


Features and benefits
The characteristic of low dielectric loss makes the signal loss at a lower level, which makes the signal transmission of the whole equipment excellent.
Stable electrical coefficient of dielectric constant.
Delamination of copper foil will not be caused by the change of cold and heat due to the consistency with the thermal expansion coefficient of copper foil.
Immersion gold has excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP mounted components to reduce failure rate during assembly and soldering.
PCB manufacturing is strictly as per required specifications.
Meeting your printed circuit board needs from PCB prototyping to mass volume production.
Reduce manufacturing cost from advanced equipment import, worker training and technology improvement and management.
International approvals
RoHS materials

Application
Uhf radio, Directional coupler, Analogue transmitter, Base station antenna


Parameter and data sheet
PCB SIZE 70 x 12mm=1PCS
BOARD TYPE Hybrid PCB
Number of Layers Multilayer PCB, 4 layer PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)+plate TOP layer
RO4003C 0.203mm (8 mil)
copper ------- 35um(1oz) MidLayer 1
FR-4 0.50 mm
copper ------- 35um(1oz) MidLayer 2
FR-4 0.20 mm
copper ------- 17um(0.5oz)+plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 5 mil / 6 mil
Minimum / Maximum Holes: 0.3/5.5 mm
Number of Different Holes: 8
Number of Drill Holes: 97
Number of Milled Slots: 0
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4003C 0.203 mm (8 mil) and FR-4 0.20 mm combined
Final foil external: 1oz
Final foil internal: 1oz
Final height of PCB: 1.1mm ±0.11
PLATING AND COATING
Surface Finish Immersion Silver
Solder Mask Apply To: Top and Bottom side
Solder Mask Color: Blue, KSM-6189BL04/KSM-19H01
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), via open
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Our Driving Circuit Boards Capabilities 2021
Blind vias, Buried vias
Flex PCB
Heavy Copper Boards 10oz
High Tg, High CTI Material
Hybrid FR-4 and High Frequency Material
Impedance Controlled PCB
IPC Class 2, IPC Class 3
Lead Free PCB (RoHS Compliant)
Multilayer PCBs to 32+ copper layers boards
Metal Core PCB (MCPCB)
PCB Materials – FR-4, Polyimide, Rogers & More
RoHS Compliant PCB Manufacturer
Rigid Flex PCB
RF PCB / High Frequency PCB
Through-hole, BGA, Gold Finger, Edge dome
Via-in-pad, Filled vias
IATF16949, ISO14001 (2004), ISO9001 (2008), UL certified

Our Services
Focus on Prototypes, Small Batches, Volume Production
Quick turn-around, double sided PCB 24 hours available.
Door to door shipment service
