High Frequency PCB | 10 mil RO4350B Circuit Board | Immersion Gold RF PCB

High Frequency PCB | 10 mil RO4350B Circuit Board | Immersion Gold RF PCB

MOQ: 1
Price: USD 2.99-6.99 per piece
Standard Packaging: Vacuum
Delivery Period: 6-7 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0049-V4.9
Number Of Layers:
2
Glass Epoxy:
RO4350B Tg280℃, Er<3.48, Rogers Corp.
Final Foil External::
1.0 Oz
Final Height Of PCB::
0.3 Mm ±10%
Surface Finish:
Immersion Gold
Solder Mask Color::
Green
Colour Of Component Legend:
White
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-6.99 per piece
Packaging Details:
Vacuum
Delivery Time:
6-7 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description
Brief Introduction
Just as its name implies, high frequency is that the frequency is relatively high, generally refers to the frequency of >=300 MHz (i.e. wave length <=1m), that is, the usual radio frequency band. The electromagnetic wave of frequency >=1GHz is called microwave.
Typical frequencies for wireless applications:
* Current mobile: 0.9GHz - 2GHz
* 3G systems: 2.5GHz
* Bluetooth: 2.5GHz
* GPS: 12.6GHz
* LMDS: 24GHz and 40GHz
* Automotive: 77GHz
Market: RFID, Wireless communications, base station and antenna, amplifier, military products, consumer electronics.
High frequency printed circuit board or microwave PCB refers to the printed circuit board made on the high frequency (microwave) substrate copper clad plate. The common types are: Double-sided board, multilayer board and mixed structure.
Mixed structure includes high performance special substrate, PP sheet + ordinary performance board and PP sheet mixed pressing board; high frequency substrate + ordinary FR4 substrate; high frequency substrate + metal base etc.

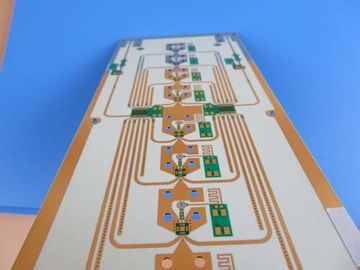

PCB Case: High Frequency PCB | 10 mil RO4350B Circuit Board | Immersion Gold RF PCB
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of double sided PCB built on 10mil RO4350B substrate with Tg 280°C for the application of Mobile Signal Booster. It's 0.3mm thick finished with white silkscreen over green solder mask and immersion gold are plated on pads. The base material is used from Rogers Corp., entire board supplying 1 up per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 100 panels are packed for shipment.

Features and benefits
The dielectric constant (DK) is low and stable, so the signal transmission is good without delay;
The characteristic of low dielectric loss makes the signal loss at a lower level, which makes the signal transmission of the whole equipment excellent;
Low thermal coefficient of dielectric constant;
Low Z-Axis expansion;
SMT process is resistant to reflow soldering, resistant to rework;
Good oxidation resistance and good heat dissipation;
Meeting your PCB needs from prototype to mass production;
16000 square meter workshop;
Delivery on time: >98%
Customer complaint rate: <1%

Application
RF transmitter, multi-coupler antenna, RF Identification, trunk amplifier

Parameter and data sheet
PCB SIZE 120 x 75mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RO4350B 0.254mm
copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 9 mil / 4 mil
Minimum / Maximum Holes: 0.25 mm / 1.0mm
Number of Different Holes: 3
Number of Drill Holes: 92
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 0.3 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: TOP and BOT 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP and BOT.
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.25mm. Via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
