High Speed PCB Boards Built On RO4350B 10 mil With Immersion Gold
  • name
  • name
  • name

High Speed PCB Boards Built On RO4350B 10 mil With Immersion Gold

MOQ: 1
Price: USD 2.99-8.99 per piece
Standard Packaging: Vacuum
Delivery Period: 6-7 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0042-V4.2
Number Of Layers:
2
Glass Epoxy:
RO4350B Tg280℃, Er<3.48, Rogers Corp.
Final Foil External::
1.5 Oz
Final Height Of PCB::
0.3 Mm ±0.1
Surface Finish:
Immersion Gold, 87%
Solder Mask Color::
N/A
Colour Of Component Legend:
N/A
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.99-8.99 per piece
Packaging Details:
Vacuum
Delivery Time:
6-7 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description
Brief Introduction
Just as its name implies, high frequency is that the frequency is relatively high, generally refers to the frequency of >=300 MHz (i.e. wave length <=1m), that is, the usual radio frequency band. The electromagnetic wave of frequency >=1GHz is called microwave.
Typical frequencies for wireless applications:
* Current mobile: 0.9GHz - 2GHz
* 3G systems: 2.5GHz
* Bluetooth: 2.5GHz
* GPS: 12.6GHz
* LMDS: 24GHz and 40GHz
* Automotive: 77GHz
Market: RFID, Wireless communications, base station and antenna, amplifier, military products, consumer electronics.
High frequency printed circuit board or microwave PCB refers to the printed circuit board made on the high frequency (microwave) substrate copper clad plate. The common types are: Double-sided board, multilayer board and mixed structure.
Mixed structure includes high performance special substrate, PP sheet + ordinary performance board and PP sheet mixed pressing board; high frequency substrate + ordinary FR4 substrate; high frequency substrate + metal base etc.

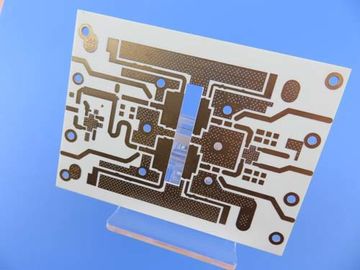

PCB Case: High Speed PCB Boards Built On RO4350B 10 mil With Immersion Gold
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of double sided high frequency PCB built on RO4350B 10 mil substrate for the application of antenna. It's a 2 layer RF PCB board at 0.3 mm thick. It's immersion gold finish without solder mask. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 boards are packed for shipment.


Features and benefits
Low water absorbability influences dielectric constant and dielectric loss less at damp.
Tg > 280 ℃
Good high temperature and low temperature resistance.(-192℃-260℃)
Gold has high solderability, no stressing of circuit boards and less contamination of PCB surface.
High voltage test, Impedance control test, micro-section, solder-ability test,
PCB manufacturing is strictly as per required specifications.
Eligible products rate of first production: >95%
No MOQ, low cost for prototypes and samples.
International approvals

Application
Low noise amplifier, Optical coupler, RF Switches, Automatic gate induction

Parameter and data sheet
PCB SIZE10 x 10mm=1up
BOARD TYPEDouble sided PCB
Number of Layers2 layers
Surface Mount ComponentsYES
Through Hole ComponentsNO
LAYER STACKUPcopper ------- 35um(1 oz)+plate TOP layer
RO4350B 0.254mm
copper ------- 35um(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:N/A
Minimum / Maximum Holes:N/A
Number of Different Holes:N/A
Number of Drill Holes:0
Number of Milled Slots:0
Number of Internal Cutouts:0
Impedance Control:no
Number of Gold finger:0
BOARD MATERIAL
Glass Epoxy:RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external:1.5 oz
Final foil internal:N/A
Final height of PCB:0.3 mm ±0.1
PLATING AND COATING
Surface FinishImmersion gold, 87%
Solder Mask Apply To:N/A
Solder Mask Color:N/A
Solder Mask Type:N/A
CONTOUR/CUTTINGRouting
MARKING
Side of Component LegendN/A
Colour of Component LegendN/A
Manufacturer Name or Logo:N/A
VIANO
FLAMIBILITY RATINGUL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:0.0059"
Board plating:0.0029"
Drill tolerance:0.002"
TEST100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIEDemail file, Gerber RS-274-X, PCBDOC etc
SERVICE AREAWorldwide, Globally.


About Us
Bicheng PCB, a unique printed circuit board supplier based in Shenzhen China serves worldwide customers since it’s born in 2003. At Bicheng, every batch of PCB goes through electrical test, AOI inspection, high voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc. Finally it is like a beautiful gift to be delivered to your hands.

Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified

Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board

Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
