Multilayer flexible 94V0 Rigid-flex PCBs immersion gold 1.0mm thick Polyimide PCBs
  • name
  • name
  • name
  • name
  • name
  • name

Multilayer flexible 94V0 Rigid-flex PCBs immersion gold 1.0mm thick Polyimide PCBs

MOQ: 1
Price: USD40~50 Per Piece
Standard Packaging: VACUUM
Delivery Period: 8-9 WORKING DAY
Payment Method: T/T, Paypal
Supply Capacity: 50000 PIECE PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0416-V4.16
Number Of Layers:
4
Board Material:
1.0mm FR-4 / Polyimide 25µm
Board Thickness:
1.0mm
Surface/Inner Layer Cu Thickness:
35 µm/35 µm
Surface Finish:
Immersion Gold
Coverlay Colour:
Yellow Coverlay / Green Solder Mask
Color Of Silkscreen:
White
Function:
100% Pass Electrical Test
Minimum Order Quantity:
1
Price:
USD40~50 Per Piece
Packaging Details:
VACUUM
Delivery Time:
8-9 WORKING DAY
Payment Terms:
T/T, Paypal
Supply Ability:
50000 PIECE PER MONTH
Product Description

Product profile





1.1 General description


This is a type of Rigid flex PCB for the application of Micro USB. It’s a 4 layer

rigid-flex board at 1.0mm thick. The base laminate is from ITEQ, It’s fabricated

per IPC 6012 Class 2 using supplied Gerber data.




1.2 Features and benifits



A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I. Low cost
J. Continuity of processing
K. No minimum order quantity and low cost sample.
L. Delivery on time. We keep higher than 98% on-time-delivery rate.





1.3 Application



Contact belt of inkjet printer, Industrial surveying and mapping instrument,

Tablet PC camera soft board,





1.4 Parameter and data sheet

Size of Flexible PCB 20.61 X 50.17mm
Number of Layers 4
Board Type Rigid flex PCB
Board Thickness 1.0mm
Board Material 1.0mm FR-4 / Polyimide 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes 35 µm
Surface Cu thickness 35 µm

Coverlay Colour Yellow coverlay / Green solder mask
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material no
Stiffener Thickness N/A

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2

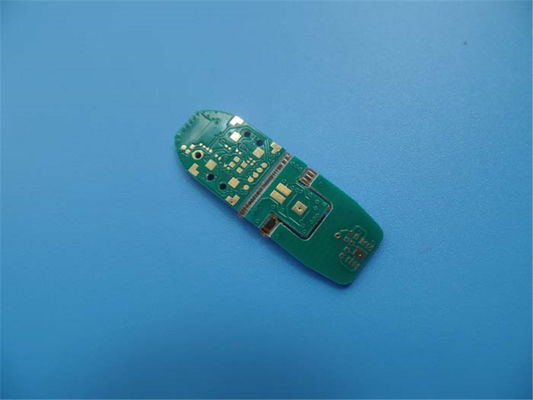

Multilayer flexible 94V0 Rigid-flex PCBs immersion gold 1.0mm thick Polyimide PCBs 0

Multilayer flexible 94V0 Rigid-flex PCBs immersion gold 1.0mm thick Polyimide PCBs 1
