Aluminum PCB Single Sided RoHS
  • name
  • name
  • name
  • name
  • name
  • name

Aluminum PCB Single Sided RoHS

MOQ: 1
Price: USD40~50
Standard Packaging: Vacuum
Delivery Period: 4-5 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0118-V1.18
Aluminum Core:
1W / MK Dielectric Material 75um
Final Height Of PCB:
1.6mm ±0.16
Final Foil External:
1oz
Surface Finish:
Hot Air Soldering Leveling(HASL),lead Free
Solder Mask Color:
White
Colour Of Component Legend:
Black
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD40~50
Packaging Details:
Vacuum
Delivery Time:
4-5 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Product profile



1.1 General description



This is a type of aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 20 panels are packed for shipment.



1.2 Features and benifits



A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Right manufacturing instruction (MI),
H. Whole fabrication process are totally controlled.
I. DDU Door to door shipment with competitive shipping cost,
J. Diversified shipping method
K. Competitive price
L. Professional and experienced engineers

1.3 Application



Module aluminum PCB, Power module, Office automation equipment,Outdoor lighting


1.4 Parameter and data sheet

PCB SIZE 160 x 83 mm=8 PCS( single board diameter 38 mm)
BOARD TYPE Aluminum PCB, IMS PCB, MCPCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material 75um
Aluminum 6061 1.6mm
TECHNOLOGY
Minimum Trace and Space: 39.37mil/38mil
Minimum / Maximum Holes: 2
Number of Different Holes: 1
Number of Drill Holes: 4
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 1W / MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: White, Taiyo PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

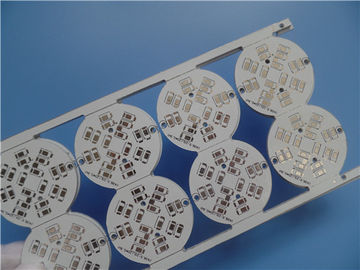

Aluminum PCB Single Sided RoHS 0

Film Exposure machine

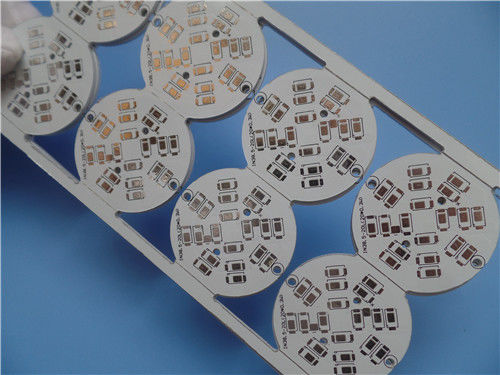

Aluminum PCB Single Sided RoHS 1



Tags:

pcb led board,

aluminum pcb,

aluminium pcb
