Multi-layer Thin PCB 0.5mm 4-Layer Thin PCB Board With Immersion Gold
  • name
  • name
  • name
  • name
  • name
  • name

Multi-layer Thin PCB 0.5mm 4-Layer Thin PCB Board With Immersion Gold

MOQ: 1
Price: USD 9.99-99.99
Standard Packaging: Vacuum
Delivery Period: 10 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-466-V6.5
Base Material:
FR-4
Final Height Of PCB:
0.5mm ±0.1
Final Foil External:
1 Oz
Surface Finish:
Immersion Gold
Solder Mask Color:
Yellow
Colour Of Component Legend:
White
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 9.99-99.99
Packaging Details:
Vacuum
Delivery Time:
10 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

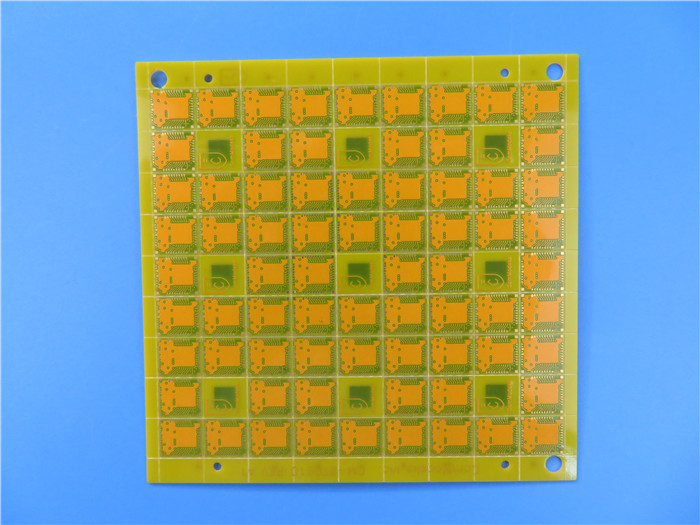

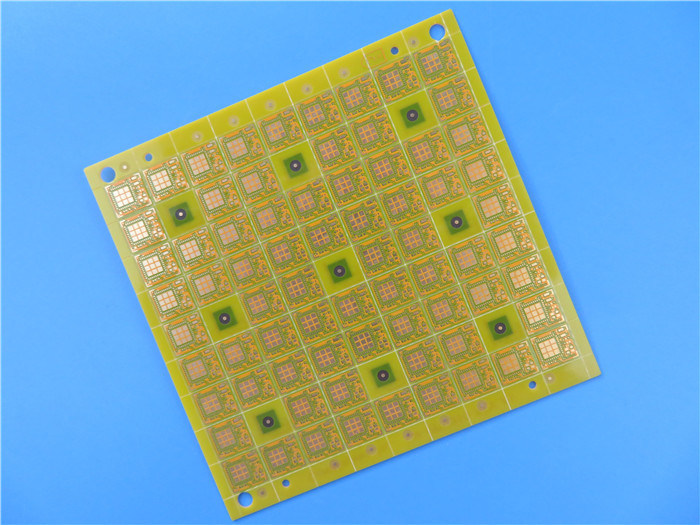

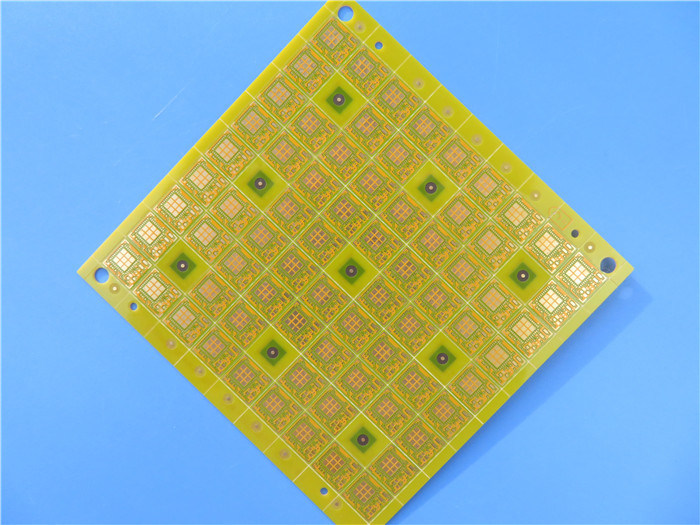

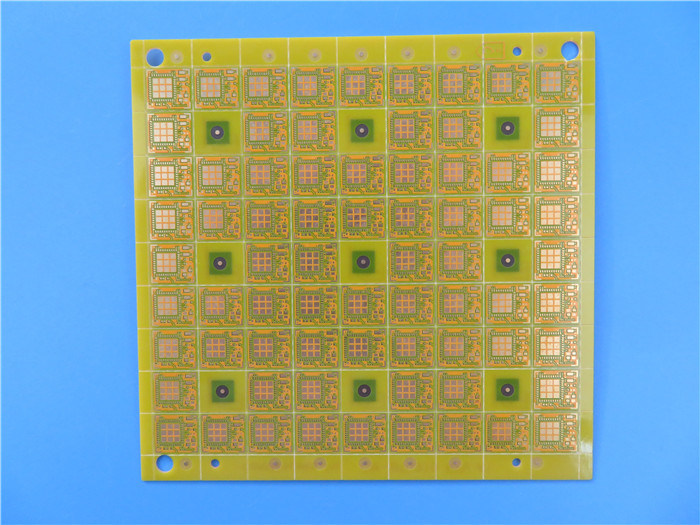

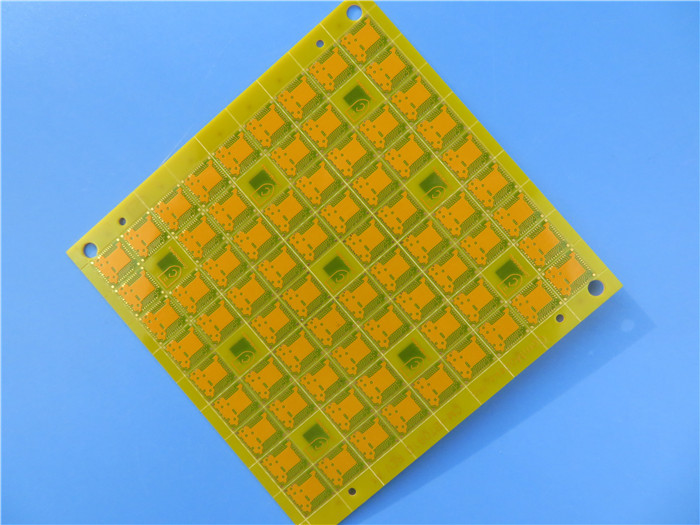

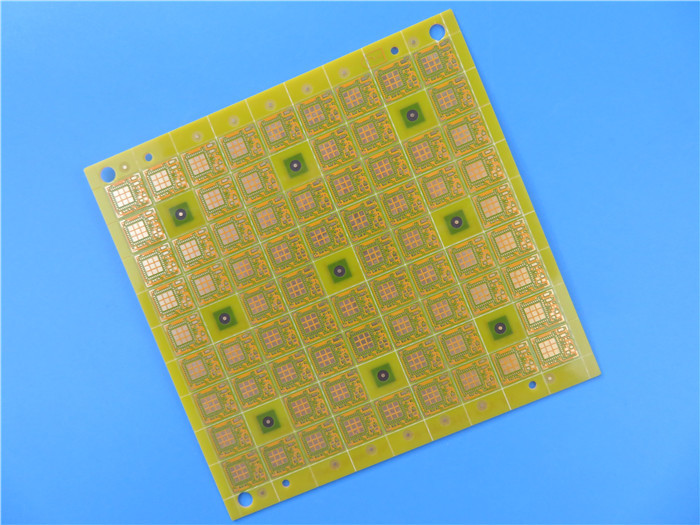

Multi-layer Thin PCB 0.5mm 4-Layer Thin PCB Board With Immersion Gold

(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)



1.1 General description

This is a type of 4-layer thin PCB board built on FR-4 substrate with Tg 135°C for the application of GPS Tracker. It's only 0.5 mm thick without silkscreen on yellow solder mask (Taiyo) and immersion gold on pads. The base material is from ITEQ supplying 72 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment.



1.2 Features and benefits

1. FR-4 material is RoHS compliant and suitable for thermal reliability needs;

2. Immersion gold has long storage time ( It can be stored for more than 1 year in vacuum bag);

3. We have Powerful PCB capabilities support your research and development, sales and marketing;

4. 16000㎡ workshop and 8000 types of PCB's per month;

5. Hassle-free, one-to-one after-sales service;

6. ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;

7. More than 18+ years of PCB experience;

8. IPC Class 2 / IPC Class 3.



Multi-layer Thin PCB 0.5mm 4-Layer Thin PCB Board With Immersion Gold 0



1.3 Applications

Surveillance Systems

Grid Tie Inverter

Modem USB

Mifi Router

Vehicle GPS Tracker

User Access Control

Circuit Board Parts

Embedded Systems Applications

Converter DC To DC

Printers



1.4 PCB Parameter

PCB SIZE 100 x 105mm=72PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 18um(0.5oz)+plate TOP CS
4mil prepreg
copper ------- 18um(0.5oz) GND Plane
5mil FR-4
copper ------- 18um(0.5oz) PWR Plane
4mil prepreg
copper ------- 18um(0.5oz) PWR Plane
TECHNOLOGY
Minimum Trace and Space: 4mil/4mil
Minimum / Maximum Holes: 0.3/2.50mm
Number of Different Holes: 31
Number of Drill Holes: 2315
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT140 TG>135, er<5.4
Final foil external: 1oz
Final foil internal: 0.5oz
Final height of PCB: 0.52-0.56mm
PLATING AND COATING
Surface Finish Immersion gold 0.025µm over 3µm Nickel (14.9% area)
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Yellow, Taiyo PSR-2000GT600D
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend No silkscreen requried.
Colour of Component Legend No silkscreen requried.
Manufacturer Name or Logo: No silkscreen requried.
VIA Plated through hole(PTH), Via in Pad and via capping on CS and PS, vias should not be visible.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Multi-layer Thin PCB 0.5mm 4-Layer Thin PCB Board With Immersion Gold 1
