Mirror COB Aluminum PCB For LED Lighting

Mirror COB Aluminum PCB For LED Lighting

MOQ: 1
Price: USD40~50
Standard Packaging: Vacuum
Delivery Period: 5-6 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0078-V7.8
Thermal Conductivity:
1W/MK Dielectric Material, MCPCB
Final Height Of PCB:
1.2mm ±0.12
Final Foil External:
1oz
Surface Finish:
Immersion Gold, Mirror Reflection
Solder Mask Color:
White,PSR400 WT02
Colour Of Component Legend:
No Silkscreen
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD40~50
Packaging Details:
Vacuum
Delivery Time:
5-6 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Product profile



1.1 General description

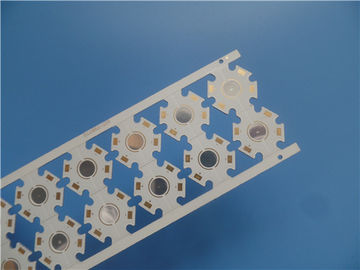

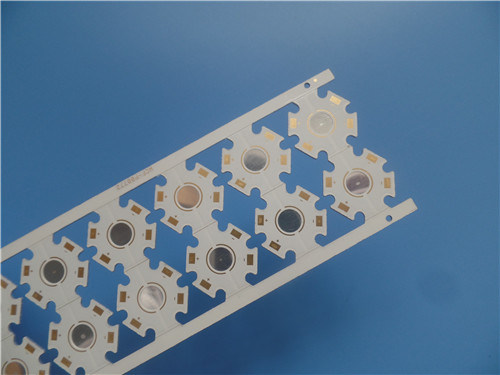

This is a type of mirror aluminum PCB for the application of Led Lighting. It's a single

layer MCPCB board at 1.2 mm thick with 1 W/MK thermal conductivity. The aluminum

plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012

Class 2 using supplied Gerber data. 25 panels are packed for shipment.



1.2 Features and benifits



A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Right manufacturing instruction (MI),
H. Products and Manufacturing are certified by authorized organizations.
I. 100% tests inclusive of electrical test and AOI inspection.
J. Customer complaint rate: <1%
K. No MOQ, low cost for prototypes and samples.
L. 1-10 pieces are offered for sale.



1.3 Application



Automotive lighting, Constant voltage control, Light conversion system, Shopping mall

lighting



1.4 Parameter and data sheet

PCB SIZE 130 x 48mm=12PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB, Metal core PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material, 75um
Aluminum 5052, 1.2mm
TECHNOLOGY
Minimum Trace and Space: 12mil/12mil
Minimum / Maximum Holes: 1.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.2mm ±0.12
PLATING AND COATING
Surface Finish Immersion gold, Mirror reflection
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White,PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend no silkscreen
Colour of Component Legend no silkscreen
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
