Multilayer flexible PCBs Polyimide PCBs at 0.25mm Thick FPC Immersion Gold PCB

Multilayer flexible PCBs Polyimide PCBs at 0.25mm Thick FPC Immersion Gold PCB

MOQ: 1
Price: USD50~60
Standard Packaging: Vacuum
Delivery Period: 6-7 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0389-V3.89
Board Material:
Polyimide (PI) 25µm ITEQ
Board Thickness:
0.25mm
Surface Cu Thickness:
35µm (1 Oz)
Inner Iayer Cu Thicknes:
35µm (1 Oz)
Surface Finish:
Immersion Gold
Coverlay Colour:
Yellow
Color Of Silkscreen:
White
Function:
100% Pass Electrical Test
Minimum Order Quantity:
1
Price:
USD50~60
Packaging Details:
Vacuum
Delivery Time:
6-7 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Product profile



1.1 General description



This is a type of a 4 layer flexible circuit for the application of Security Alarm

at 0.25mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012

Class 2 using supplied Gerber data. Polyimide as stiffener is applied on the

inserting head.



1.2 Features and benifits



A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I.   Low cost
J. Continuity of processing
K. Small quantity, prototypes and production.
L. Meeting your printed circuit board needs from PCB prototyping to mass volume

    production.



1.3 Application



Touch screen, Industrial control touch remote control soft board, POS antenna soft

board


1.4 Parameter and data sheet

Size of Flexible PCB 70.5 X 30.38mm
Number of Layers 4
Board Type Flexible PCB
Board Thickness 0.25mm
Board Material Polyimide (PI) 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes 35µm (1oz)
Surface Cu thickness 35µm (1oz)

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress

Pass, 300±5℃,10 seconds, 3 cycles.

No delamination, no blistering.

Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2

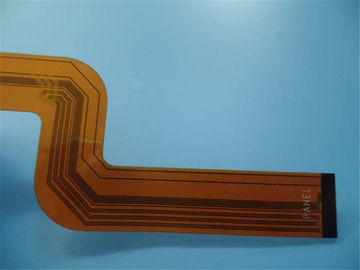

Multilayer flexible PCBs Polyimide PCBs at 0.25mm Thick FPC Immersion Gold PCB 0

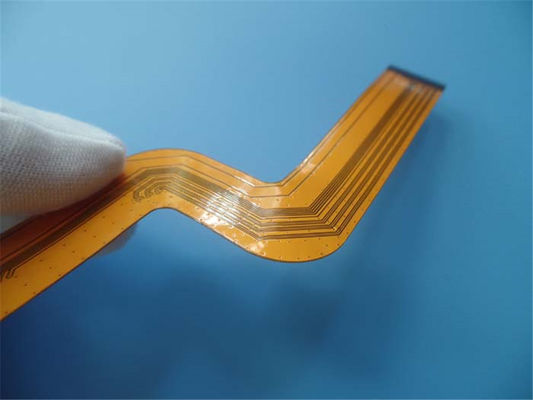

Multilayer flexible PCBs Polyimide PCBs at 0.25mm Thick FPC Immersion Gold PCB 1
