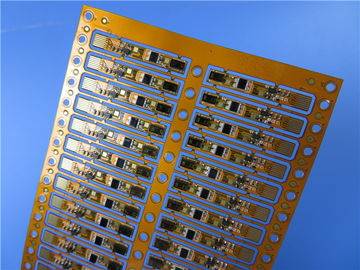

Assembled Flexible PCB Built On 0.15mm Polyimide (PI) With Immersion Gold
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Assembled Flexible PCB Built On 0.15mm Polyimide (PI) With Immersion Gold

MOQ: 1
Price: USD20~30
Standard Packaging: Vacuum
Delivery Period: 7-8 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0826-V8.26
Board Material:
Polyimide (PI) 25um,Shengyi,60℃
Board Thickness:
0.15mm +/-10%
Surface Cu Thickness:
35 Um (1 Oz)
Surface Finish:
Immersion Gold
Coverlay Colour:
Yellow
Color Of Silkscreen:
White
Function:
100% Pass Electrical Test
Minimum Order Quantity:
1
Price:
USD20~30
Packaging Details:
Vacuum
Delivery Time:
7-8 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Product profile







1.1 General description




This is a type of assembled flexible PCB built on polyimide substrate with Tg 60°C

for the application of Portable Sound System. It's 2 layer FPC at 0.15 mm thick, white

silkscreen on yellow coverlay(solder mask) covering both sides and immersion gold

on pads. Polyimide as stiffener is on the back of one end. The base material is from

Shengyi, entire board supplying 34 PCBs per panel. They're fabricated per IPC 6012

Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.







1.2 Features and benifits


A. Excellent flexibility;
B. Reducing the volume;
C. Weight reduction;
D. Consistency of assembly;
E. SMT process is resistant to reflow soldering, resistant to rework;
F. Comprehensive equipment management and maintenance and process control;
G. Strict WIP inspection and monitoring as well as working instruction;
H. Small quantity order is accepted;
I.  12 hours quotation;
J.  Prototype PCB capability;
K. Volume Production capability;






1.3 Application




Thin-film switch,
capacitive touch screen / panel,
mobile phone antenna flex board,
mobile phone module flex board
FFC for industrial control equipment,
industrial control touch remote control soft board,
Tablet PC camera soft board,
Tablet computer battery soft board,






1.4 Parameter and data sheet

PCB Size: 29 x 4.0mm, 121 x 75.5mm=34 pcs
Number of Layers 2 layers
Board Type Flexbile cirucit
Board Thickness 0.15mm +/-10%
Board Material Polyimide (PI) 25um
Board Material Supplier Shengyi
Tg Value of Board Material 60℃

PTH Cu thickness 20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 um
Stiffener Polyimide 0.3mm

Type of Silkscreen Ink Taiyo
Supplier of Silkscreen Taiyo
Color of Silkscreen White
Number of Silkscreen 1

Minimum via (mm) 0.3
Minimum Trace (mil) 8.0
Minimum Gap(mil) 7.3

Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress

Pass, 300±5℃,10 seconds, 3 cycles.

No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2
Type of artwork to be supplied email file, Gerber RS-274-X, PCBDOC etc
Service area Worldwide, Globally.
