Unveiling the Future: RO4350B and RO4450F PCB Materials in Advanced Electronics

Discovering the Excellence of RO4350B and RO4450F PCB Materials: Unraveling the Secrets of Next-Generation Circuit Boards

In the intricate realm of printed circuit boards (PCBs), the selection of materials is a critical factor that shapes the performance, reliability, and functionality of electronic devices. In this comprehensive exploration, we dive deep into the nuances of RO4350B and RO4450F PCB materials, shedding light on their distinctive attributes, applications, and advantages in the domain of cutting-edge circuit board design.

1. Unveiling RO4350B: The Perfect Fusion of Performance and Processability

RO4350B by Rogers emerges as a unique blend of woven glass reinforced hydrocarbon/ceramics, offering a harmonious blend of exceptional electrical performance akin to PTFE/woven glass and the manufacturability of epoxy/glass composites. These laminates are crafted with precision to deliver precise control over dielectric constant (Dk) and low loss characteristics, making them a preferred choice for high-frequency applications. Noteworthy is their cost-effectiveness compared to traditional microwave laminates, along with the absence of stringent handling requirements associated with PTFE-based materials. RO4350B laminates, rated UL 94 V-0 for active devices and high-power RF applications, exhibit a thermal coefficient of expansion (CTE) that aligns with copper, ensuring dimensional stability crucial for complex multi-layer board constructions.

2. Introducing RO4450F Bondply: Enhancing Multi-Layer Constructions with Versatility

Derived from the esteemed RO4000 series core materials, RO4450F bondply stands out as a versatile companion for multi-layer constructions requiring sequential laminations. With a high post-cure glass transition temperature (Tg), RO4450F bondply excels in handling multiple lamination cycles, making it an ideal choice for intricate layering requirements. Its compatibility with FR-4 bond demands opens avenues for creating non-homogeneous multi-layer structures with ease, showcasing enhanced lateral flow capability for increased design flexibility.

3. Delving into the Features and Specifications: A Closer Look at Performance Metrics

RO4350B and RO4450F materials boast a host of features essential for high-performance PCB applications:

RO4350B:

• Dielectric Constant (DK) of 3.48 +/- 0.05 at 10GHz/23°C
• Dissipation Factor of 0.0037 at 10GHz/23°C
• Thermal Conductivity of 0.69 W/m/°K
• Low water absorption of 0.06%
• High Tg value of >280°C

RO4450F:

• DK of 3.52 +/- 0.05 at 10GHz/23°C
• Dissipation Factor of 0.004 at 10GHz/23°C
• Thermal Conductivity of 0.65 W/m/°K
• Low water absorption of 0.09%
• High Tg value of >280°C

4. Unraveling the Precision in PCB Stackup and Construction Details

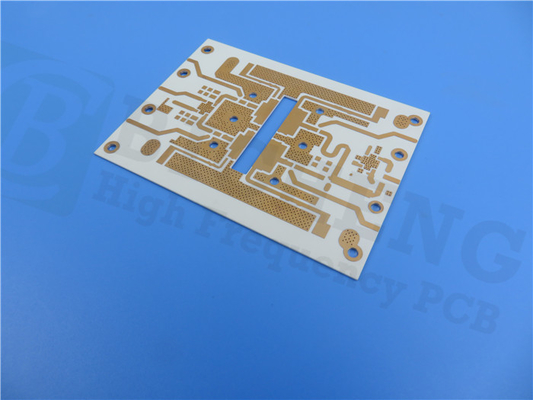

For a 2-layer rigid PCB utilizing RO4350B and RO4450F, the meticulous stackup involves alternating layers of Rogers RO4350B core and RO4450F bondply, ensuring optimal signal integrity and thermal management. The construction details encompass specific board dimensions, trace/spaces, hole sizes, copper weights, via plating thickness, surface finishes, and adherence to IPC-Class-2 quality standards, guaranteeing resilience and reliability in electronic assemblies.

5. Applications and Global Reach: Enabling Innovation Across Industries

The versatile nature of RO4350B and RO4450F PCB materials finds application in diverse sectors, including cellular base stations, automotive radar systems, RF identification tags, and more. With global availability and a steadfast commitment to quality and performance, these advanced PCB materials serve as a catalyst for innovation and technological advancement in the dynamic landscape of electronic engineering.

In conclusion, the in-depth exploration of RO4350B and RO4450F PCB materials highlights their pivotal role in shaping the future of high-performance circuit board design. By harnessing the distinctive properties and advantages of these materials, designers and engineers can unlock a realm of possibilities in creating state-of-the-art electronic solutions that drive innovation and excellence to new heights.
