Pushing the Boundaries of High-Speed Electronics with Panasonic's Megtron6 (M6) PCBs

(All PCBs are custom-manufactured. Reference images and parameters may vary based on your design requirements.)

In today's fast-paced world of technological innovation, the demand for high-speed, high-frequency electronics has never been greater. From lightning-fast 5G communication networks to cutting-edge automotive radar systems, the race is on to develop the next generation of cutting-edge devices. And at the heart of these groundbreaking innovations are the unsung heroes – the printed circuit boards that power them.

Enter Panasonic's Megtron6 (M6) – a game-changing lineup of 6-layer PCBs engineered to excel in the most demanding high-speed, high-frequency applications. Designed for fields such as 5G, millimeter-wave radar, high-speed computing, and aerospace, these boards are the secret weapon that electronics innovators have been searching for.

The key to the M6's outstanding performance lies in its exceptional material properties. With a dielectric constant (Dk) of 3.4 at 1 GHz and a remarkably low dissipation factor of just 0.002 at the same frequency, these laminates ensure your high-speed signals maintain their integrity, even under the most extreme conditions. And thanks to the material's stable Dk and low thermal coefficient of expansion (CTE), you can say goodbye to the performance-sapping effects of temperature variations.

But the true superpower of the Megtron6 PCBs lies in their thermal reliability. Boasting a glass transition temperature (Tg) of over 185°C and a thermal decomposition temperature (Td) of 410°C, these boards can withstand the most punishing heat. This exceptional thermal stability allows Panasonic to pack up to 30 layers into their M6 designs, unlocking unprecedented levels of complexity and functionality for your next-gen electronics.

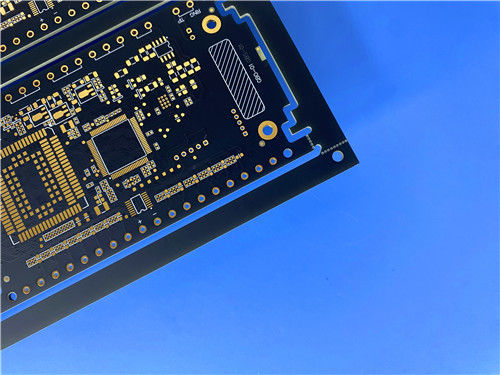

Designed with the user in mind, these 6-layer PCBs feature a 1.4mm thickness, 1oz copper weight on the outer layers, and a minimum trace/space of 4/5 mils. The sleek matt black solder mask and white silkscreen on both sides lend these boards a sophisticated, high-tech aesthetic that's sure to impress your clients.

Whether you're working on 5G base stations, automotive radar systems, high-speed servers, or any other cutting-edge application, Panasonic's Megtron6 (M6) PCBs are the solution you need to take your designs to new heights. Unlock the full potential of your next-gen electronics and leave the competition in the dust. For any technical support, don't hesitate to reach out to the experts at Panasonic. The future of high-speed electronics is here, and it's powered by M6.
