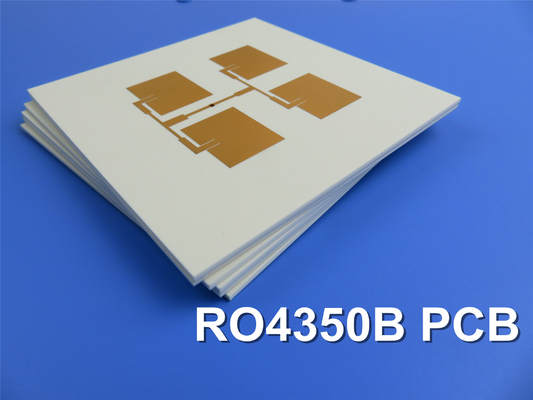

Rogers RO4350B high frequency PCB 2-layer 4mil with ENEPIG

Harnessing the Power of Rogers RO4350B High-Frequency PCBs

Delve into the world of cutting-edge technology with Rogers RO4350B high-frequency PCBs, a game-changer in the realm of advanced electronic design. These state-of-the-art laminates offer unparalleled electrical performance akin to PTFE/woven glass, coupled with the ease of manufacturability of epoxy/glass. RO4350B materials stand out for their precise control over dielectric constant (Dk), low loss, and cost-efficiency compared to conventional microwave laminates, making them a preferred choice for high-power RF designs and active devices.

Unlocking the Potential of RO4350B:
RO4350B boasts impressive technical specifications, including a Dielectric Constant of DK 3.48 +/-0.05 at 10GHz/23°C, a minuscule Dissipation Factor of 0.0037 at the same frequency and temperature, and a Thermal Conductivity of 0.69 W/m/°K. Its thermal coefficient of expansion (CTE) mirrors that of copper, ensuring exceptional dimensional stability and reliable plated-through-hole quality. With a robust Tg value exceeding 280°C and minimal water absorption of 0.06%, RO4350B materials offer unparalleled performance and longevity.

Crafting PCBs with Precision:
In the realm of PCB construction, a 2-layer rigid PCB utilizing RO4350B features copper layers of 35 μm each, encapsulating a 0.102 mm (4mil) RO4350B core. The board dimensions span 43.98mm x 33.22 mm, with meticulous attention to detail in a minimum Trace/Space of 4/5 mils and a minimum Hole Size of 0.3mm. The finished board thickness of 0.2mm, coupled with a 1oz (1.4 mils) Cu weight on the outer layers and a 20 μm via plating thickness, ensures robust performance and durability. The PCB is adorned with an ENEPIG surface finish, foregoing top and bottom silkscreens or solder masks, and undergoes a rigorous 100% electrical test before shipment, guaranteeing uncompromised quality.

Applications and Global Reach:
RO4350B PCBs find their niche in a myriad of industries, from cellular base station antennas and power amplifiers to automotive radar systems and LNB's for Direct Broadcast Satellites. With a global presence and adherence to IPC-Class-2 quality standards, RO4350B PCBs are the epitome of excellence in electronic design, catering to the diverse needs of modern electronic applications.

In a nutshell, Rogers RO4350B high-frequency PCBs epitomize innovation, reliability, and performance in the dynamic landscape of electronic design. With their exceptional features, benefits, and global accessibility, RO4350B laminates empower designers to redefine the boundaries of high-frequency electronic design and propel technological advancements across industries. Embrace the transformative potential of RO4350B for cutting-edge electronic solutions that surpass the stringent demands of contemporary applications.
