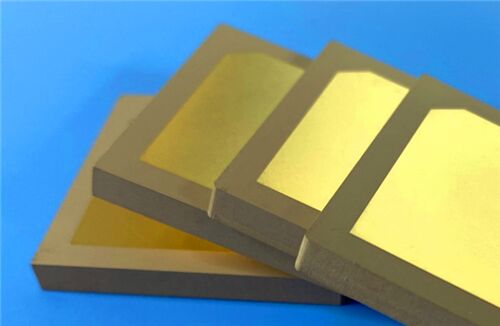

Rogers 0.5mm TMM10 double sided copper PCB using in RF Designs

Elevate Your High-Frequency Designs with Rogers' Exceptional TMM10 2-Layer PCB

Attention, fellow RF enthusiasts! Are you tired of compromising on performance and reliability in your high-frequency projects? Well, prepare to have your mind blown, because I'm about to introduce you to a game-changing solution that will redefine the boundaries of what's possible – the exceptional TMM10 2-layer PCB from the engineering gurus at Rogers Corporation.

Unparalleled Electrical Prowess

At the heart of this marvel lies the legendary TMM10 laminate, a thermoset microwave material that offers the best of both PTFE and ceramic-based substrates. With a dielectric constant (Dk) of 9.20 ± 0.23 and an impressively low dissipation factor of just 0.0022 at 10GHz, this substrate is engineered to deliver uncompromising performance in a wide range of high-frequency applications.

Built for Reliability

Measuring a compact 85mm x 120mm with a tight tolerance of ±0.15mm, this 2-layer TMM10 PCB features a robust 0.5mm finished thickness and beefy 1oz (1.4 mils) copper layers. Boasting a CTE closely matched to copper, this solution is engineered to resist creep and cold flow, ensuring dimensional stability even in the most demanding environments. And with an EPIG (Electroless Palladium Immersion Gold) surface finish, you can rest assured that your critical components will enjoy reliable and long-lasting solderability.

Versatility Meets Performance

Whether your focus is on chip testers, dielectric polarizers, satellite communication systems, GPS antennas, or any other mission-critical high-frequency design, the TMM10 2-layer PCB is your ticket to the big leagues. Its exceptional electrical performance, combined with its robust construction and environmental friendliness, make it the ideal choice for pushing the boundaries of what's possible in the world of high-frequency electronics.

So, what are you waiting for? Unlock the future of high-frequency design with Rogers' exceptional TMM10 2-layer PCB solution, available worldwide. Experience the unparalleled power and reliability that only a true industry leader can deliver. The high-frequency dominance you've been craving is just a heartbeat away – let's make it happen!
