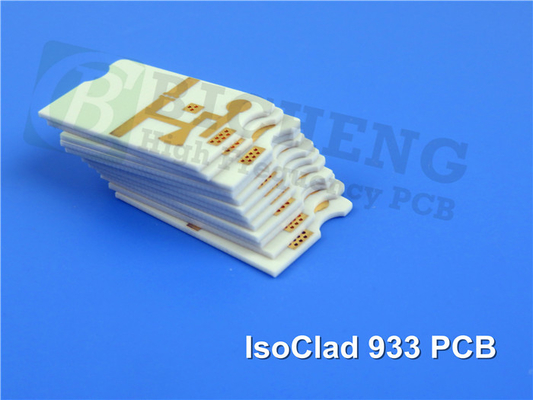

IsoClad 933 PCB 2-layer 15mil thick with Immersion Gold pure Gold

Unleashing the Potential of IsoClad 933 High-Frequency PCBs

IsoClad 933 laminates by Rogers are a groundbreaking addition to the realm of PCB substrates, offering a non-woven fiberglass/PTFE composite that delivers unparalleled performance and flexibility. These laminates are engineered for applications requiring conformability, thanks to their non-woven reinforcement that sets them apart from traditional materials. IsoClad 933 leverages longer random fibers and a proprietary manufacturing process to ensure exceptional dimensional stability and increased mechanical strength, making it a top choice for demanding electronic designs.

Featuring a Dielectric Constant (DK) of 2.33 at 10GHz/23°C and a low Dissipation Factor of 0.0016 at the same frequency and temperature, IsoClad 933 boasts impressive performance metrics. Additionally, the laminate offers a strong Peel Strength of 10 lbs. per inch, low water absorption of 0.05%, and minimal outgassing levels (0.03% TML, 0 CVCM, 0.02% WVR), highlighting its reliability and quality. With excellent DK uniformity and stability across frequencies, IsoClad 933 ensures consistent and high-performance circuitry.

In a 2-layer rigid PCB stackup, IsoClad 933 serves as the core material sandwiched between copper layers, with precise construction details including minimum trace/space requirements, hole sizes, and finished board specifications. The PCB undergoes rigorous testing, including a 100% Electrical Test prior to shipment, ensuring superior quality and performance standards. With a robust design featuring 41 components, 135 total pads, and 76 vias, IsoClad 933 PCBs excel in various applications such as conformal antennas, stripline and microstrip circuits, guidance systems, and radar/electronic warfare systems.

In conclusion, IsoClad 933 high-frequency PCBs offer a gateway to unparalleled performance, reliability, and versatility in electronic design. With exceptional features, benefits, and applications, IsoClad 933 stands as a cornerstone for next-generation circuits, empowering innovations in high-frequency electronics. Elevate your designs with IsoClad 933 and unlock a world of possibilities in electronic engineering.
