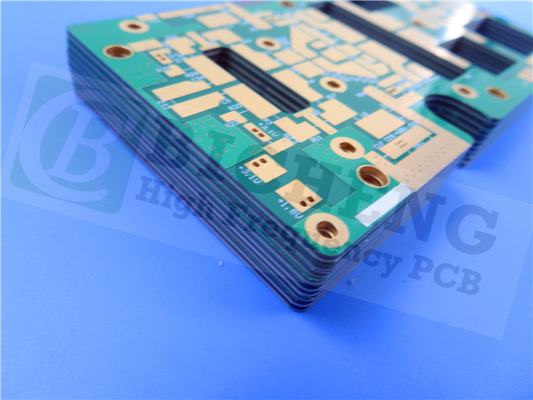

IsoClad 917 High Frequency PCBs 2-layer 62mil Accepted standard: IPC-Class-3

IsoClad 917: Unleashing the Potential of Revolutionary PCB Substrates

Enter the realm of PCB technology's groundbreaking advancement with Rogers IsoClad 917 PCBs. These non-woven fiberglass/PTFE composites have redefined the limits, boasting an unmatched low dielectric constant (Dk) and dissipation factor. With exceptional performance and versatility, IsoClad 917 laminates have become the go-to choice for a wide range of applications, including flexible PCB designs like conformal and wrap-around antennas. Let's delve into the remarkable features, benefits, and specifications of this extraordinary material.

Unparalleled Features:
IsoClad 917 laminates boast a myriad of remarkable features that set them apart from the competition. Here are the key highlights:

1. Impressive Electrical Performance:
IsoClad 917 laminates exhibit outstanding electrical performance, showcasing a Dk of 2.17 or 2.20 at 10 GHz/23°C. This ensures reliable signal transmission with minimal losses. The dissipation factor of 0.0013 at the same frequency and temperature further enhances signal integrity, making them the optimal choice for high-frequency applications.

2. Temperature Stability:
These laminates excel in maintaining peak performance across an extensive temperature range. IsoClad 917 laminates demonstrate excellent stability, regardless of environmental conditions, with a temperature coefficient of Dk (TcDK) of -157 ppm/°C within the range of -10°C to 140°C.

3. Superior Mechanical Strength:
IsoClad 917 laminates exhibit robust peel strength, enabling them to withstand up to 10 lbs. per inch. This ensures the integrity of PCB assemblies even under demanding conditions. The inclusion of non-woven fiberglass reinforcement provides enhanced mechanical strength, elevating performance levels.

Benefits of IsoClad 917:
The remarkable benefits of IsoClad 917 laminates make them an indispensable choice for PCB designs. Here are the key advantages:

1. Non-Woven Fiberglass Reinforcement:
IsoClad 917 laminates incorporate non-woven fiberglass reinforcement, offering improved dimensional stability and uniform dielectric constant. They surpass competitors in similar classes, delivering premium performance and reliability.

2. Low Dielectric Constant and Loss:
IsoClad 917 laminates provide an exceptional low dielectric constant and dissipation factor, ensuring optimal signal integrity and minimal signal loss. They are the ideal choice for high-frequency applications where precision and efficiency are paramount.

3. Moisture Resistance:
IsoClad 917 laminates exhibit low moisture absorption of 0.04%, safeguarding against electrical degradation and ensuring consistent performance even in humid environments. Reliability is guaranteed, regardless of challenging conditions.

4. Flexibility and Isotropy:
These laminates offer unparalleled flexibility, surpassing woven fiberglass alternatives. Their non-rigid nature makes them perfect for flexible PCB designs. Additionally, they provide highly isotropic properties in the X, Y, and Z directions, ensuring consistent performance throughout the PCB.

PCB Construction and Specifications:
IsoClad 917 laminates can be seamlessly integrated into various PCB stackups and configurations. Here are the specifications for a typical 2-layer rigid PCB construction:

Applications and Availability:
IsoClad 917 laminates have found diverse applications across industries. Some typical applications include:

-Conformal Antennas
-Stripline and Microstrip Circuits
-Guidance Systems
-Radar and Electronic Systems

IsoClad 917 laminates are readily available worldwide, offering a reliable and versatile solution for various PCB design requirements.

Rogers IsoClad 917 laminates have propelled PCB substrates into a new era, delivering unparalleled performance and versatility. With their exceptional electrical properties, mechanical strength, and moisture resistance, they have become the go-to choice for high-frequency and flexible PCB designs. Embracing IsoClad 917 opens up a realm of possibilities for innovation across diverse industries, ensuring reliable and efficient electronic systems for the future.
