Rogers RO4533 PCB: Redefining Mobile Infrastructure Antenna Technology

Rogers RO4533 PCB: Redefining Mobile Infrastructure Antenna Technology

Introduction:
In the dynamic world of mobile infrastructure, Rogers RO4533 PCBs have emerged as a potential solution for microstrip antenna applications. This article provides an objective overview of the features, benefits, construction details, statistics, and typical applications of RO4533 PCBs, including both the positive aspects and potential drawbacks. By examining these aspects, readers can make an informed evaluation of this product's suitability for their specific needs.

The Advantages of RO4533:
RO4533 PCBs offer several notable advantages for microstrip antenna applications. Their ceramic-filled, glass-reinforced hydrocarbon materials provide controlled dielectric constant, low loss performance, and excellent passive intermodulation response. These PCBs are fully compatible with conventional FR-4 and high-temperature lead-free solder processing, simplifying the manufacturing process. They also serve as a cost-effective alternative to traditional PTFE-based antennas, allowing designers to optimize performance while considering budget constraints. The low moisture absorption and high thermal conductivity of RO4533 PCBs enhance their durability and power handling capabilities. Additionally, their uniform mechanical properties ensure reliable mechanical form during handling.

Promising Features for Quality Performance:
RO4533 PCBs exhibit key features that contribute to their potential performance. With a dielectric constant (DK) of 3.3 at 10GHz and a dissipation factor of 0.0025 at the same frequency, these laminates offer good signal integrity and minimal loss. The coefficients of thermal expansion (CTEs) closely match those of copper, resulting in reduced stresses in the printed circuit board antenna. The high glass transition temperature (Tg) of over 280°C (536°F) ensures a low z-axis CTE and reliable performance in plated through-holes. These features contribute to the overall quality and reliability of RO4533 laminates.

Considerations to Keep in Mind:
While RO4533 PCBs offer advantages, it's important to consider potential drawbacks. One limitation is their compatibility with standard PCB fabrication processes, which may require adjustments to existing workflows. Designers should also be aware that the laminates' performance may vary depending on specific application requirements. Additionally, the availability and accessibility of RO4533 PCBs in certain regions might be limited, potentially posing challenges for users seeking widespread availability.

Precise Construction and Detailed Statistics:

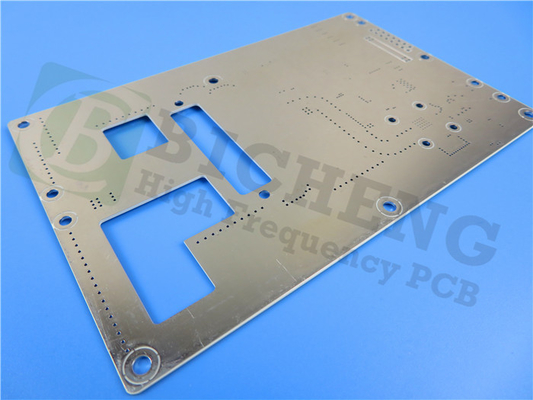

RO4533 PCBs adhere to precise construction standards for reliable performance. The typical 2-layer rigid PCB stackup involves copper layers of 35 μm on both sides, with the Rogers 4533 Core measuring 0.762 mm (30mil) in thickness. The finished board, with a thickness of 0.8mm, undergoes meticulous manufacturing processes, including 20 μm via plating and immersion silver surface finish. This attention to detail ensures high-quality and dependable performance. The provided Gerber RS-274-X artwork adheres to accuracy standards, and the PCBs meet the IPC-Class-2 quality standard.

Applications That Show Promise:
RO4533 PCBs have the potential to be applied in various microstrip antenna applications within the mobile infrastructure sector. They can be utilized in cellular infrastructure base station antennas and WiMAX antenna networks, providing opportunities for high-performance, cost-effective, and environmentally friendly solutions.

Conclusion:
Rogers RO4533 PCBs offer the potential to enhance mobile infrastructure antenna technology. With controlled dielectric properties, compatibility with standard PCB fabrication, and impressive thermal stability, these laminates provide designers with the tools to optimize antenna designs for performance and cost-efficiency. However, it's important to consider factors such as compatibility with existing processes and regional availability. By thoroughly assessing the pros and cons, users can determine whether RO4533 PCBs are the right fit for their specific mobile infrastructure antenna applications.
