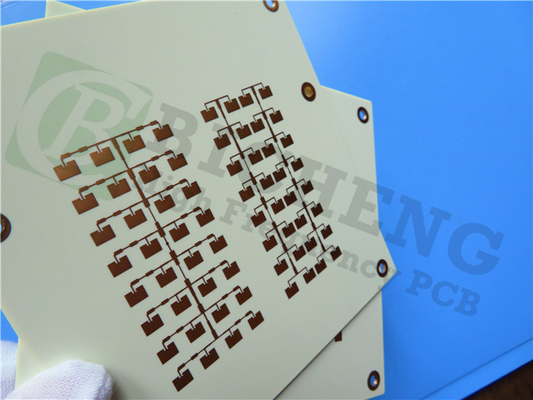

Rogers 4730 PCB - High-Performance Laminate for High-Frequency Applications

Rogers Corporation is a well-known name in the electronics industry for providing high-performance circuit materials. Among the many products Rogers offers, the Rogers 4730 PCB laminate stands out for its excellent high-frequency performance.

At Bicheng PCB, we have the capability to produce high-quality Rogers 4730 PCBs using our advanced CADCAM technology. Here's what you need to know about the properties of Rogers 4730 PCB and how we can help you achieve the best results with this material.

Rogers 4730 PCB Properties

The Rogers 4730 PCB laminate is a ceramic-filled PTFE composite that provides excellent electrical performance for high-frequency applications. It has a dielectric constant of 3.0 at 10 GHz and a low dissipation factor of 0.0027 at 10 GHz. The thermal coefficient of dielectric constant (TCDk) is -165 ppm/℃, which ensures that the performance of the PCB remains stable across a wide temperature range.

The Rogers 4730 PCB also has excellent thermal conductivity, with a value of 0.5 W/mK, and low moisture absorption of 0.05%. Its low loss tangent and high thermal conductivity make it an ideal choice for high-frequency applications operating at X-band or below.

Additionally, the Rogers 4730 PCB laminate offers tight thickness tolerance, ensuring that your circuits perform consistently. The laminate has a thermal decomposition temperature of 500℃, making it suitable for high-temperature applications.

Bicheng PCB's CADCAM Capability for Rogers 4730 PCB

At Bicheng PCB, we have a team of experienced engineers and advanced equipment to ensure the highest quality of Rogers 4730 PCBs. We use advanced CADCAM software to manufacture PCBs with tight tolerances, accurate dimensions, and reliable performance.

Our manufacturing process for Rogers 4730 PCBs includes:

Design and CAM: Our engineers use advanced software to create your PCB.

Material selection: We use only high-quality materials from trusted suppliers to ensure the performance and reliability of your PCB.

Lamination: We use advanced equipment to laminate the layers of your PCB with precision and accuracy.

Drilling and routing: Our advanced drilling and routing equipment ensures accurate hole placement and precise routing of your PCB.

Plating: We use advanced plating techniques to ensure uniform plating and reliable connectivity.

Testing: We conduct a series of tests to ensure the reliability and performance of your PCB.

Conclusion

The Rogers 4730 PCB laminate is an excellent choice for high-frequency applications that require stable electrical performance across a wide temperature range. At Bicheng PCB, we have the CADCAM capability to produce high-quality Rogers 4730 PCBs that meet your exact specifications. Contact us today to learn more about how we can help you achieve the best results with Rogers 4730.
