Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask

  • Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask
  • Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask
  • Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask
  • Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask
Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask
Product Details:
Place of Origin: China
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-453-V8.79
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 9.99-99.99
Packaging Details: Vaccum
Delivery Time: 10 working days
Payment Terms: T/T / Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Base Material: FR-4 Board Thick: 1.6mm ±0.16
Copper Thick: 1OZ Surface Finish: ENIG
Solder Mask Color: Blue Colour Of Component Legend: White
TEST: 100% Electrical Test Prior Shipment

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask
(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)

1.1 General description
This is a type of multi-layer PCB built on FR-4 substrate with Tg 135°C for the application of digital receivers. It's 1.6 mm thick with white silkscreen (Taiyo) on blue solder mask and immersion gold on pads. The base material is from Shengyi supplying 25 up PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benefits
Lead free assemblies with a maximum reflow temperature of 260℃.
Good oxidation resistance and good heat dissipation.
Good shielding effect
Electrical test and high voltage test
8000 types of PCB per month
No minimum order quantity. 1 piece is available.
Free-of-charge PCB prototype test

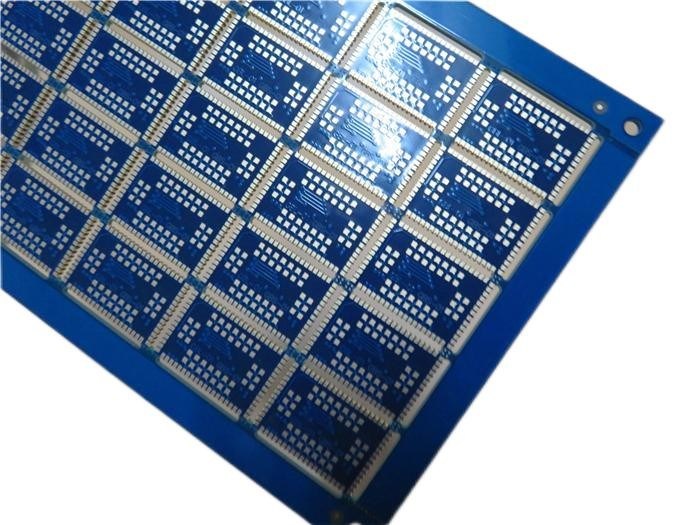

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask 0

1.4 PCB Specifications

PCB SIZE160.06 x 114.2mm=25PCS
BOARD TYPEMultilayer PCB
Number of Layers4 layer PCB
Surface Mount ComponentsYES
Through Hole ComponentsYES
LAYER STACKUPTop layer --- 0.018mm +plating
PP 2116 (54%) + 1080(64%)+2116(54%)
Innerlayer 1 --- 0.018mm
Core FR-4 --- 0.79mm
Innerlayer 2 --- 0.018mm
PP 2116 (54%) + 1080(64%)+2116(54%)
Bottom layer --- 0.018mm +plating
TECHNOLOGY
Minimum Trace and Space:7.8 mil / 7.1 mil
Minimum / Maximum Holes:0.4 mm /3.175 mm
Number of Different Holes:5
Number of Drill Holes:491
Number of Milled Slots:60
Number of Internal Cutouts:0
Impedance Control:0
Number of Gold finger:0
BOARD MATERIAL
Glass Epoxy:FR-4 Tg135℃, S1141, Shengyi
Final foil external:1 oz
Final foil internal:0.5 oz
Final height of PCB:1.6mm ±0.16
PLATING AND COATING
Surface FinishImmersion gold (22.5% ) 0.1µm over 3µm nickel
Solder Mask Apply To:TOP and Bottom, 12micron Minimum
Solder Mask Color:Blue, R-500 BL, Onstatic
Solder Mask Type:LPSM
CONTOUR/CUTTINGRouting
MARKING
Side of Component LegendTOP and Bottom.
Colour of Component LegendWhite, S-380W, Taiyo
Manufacturer Name or Logo:Marked on the board in a conductor and leged FREE AREA
VIAplated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATINGUL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:0.0059"
Board plating:0.0029"
Drill tolerance:0.002"
TEST100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIEDemail file, Gerber RS-274-X, PCBDOC etc
SERVICE AREAWorldwide, Globally.


1.4 Applications
GPS Tracking Device
Digital Receiver
Electrical Transformers
Switch Hub
USB Modems
Portable Sound Systems
Modem Router 4G
Cheap PLC
Game Player
Converters

1.5 Our Advantages
1. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;
2. PCB manufacturing is strictly as per required specifications;
3. Meeting your PCB needs from prototype to mass production;
4. Powerful PCB capabilities support your research and development, sales and marketing;
5. Delivery on time higher than 98% on-time-delivery rate;
6. 30000㎡ output capability per month;
7. Prototype PCB capability to Volume Production capability;
8. IPC Class 2 / IPC Class 3;

1.6 More Displays of Half Holes PCBs

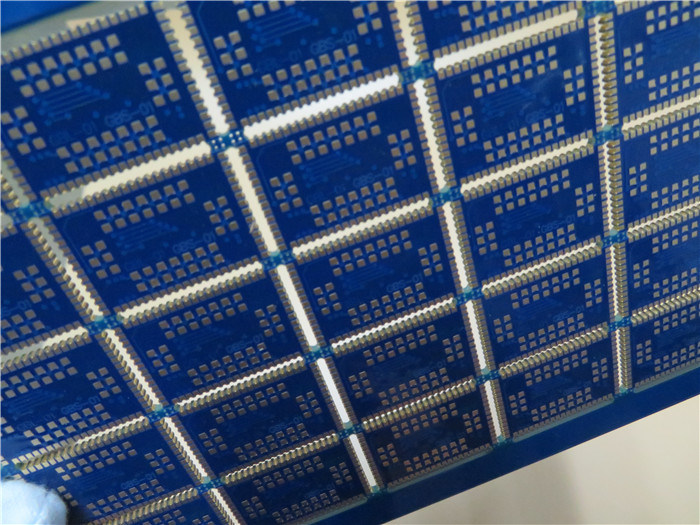

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask 1

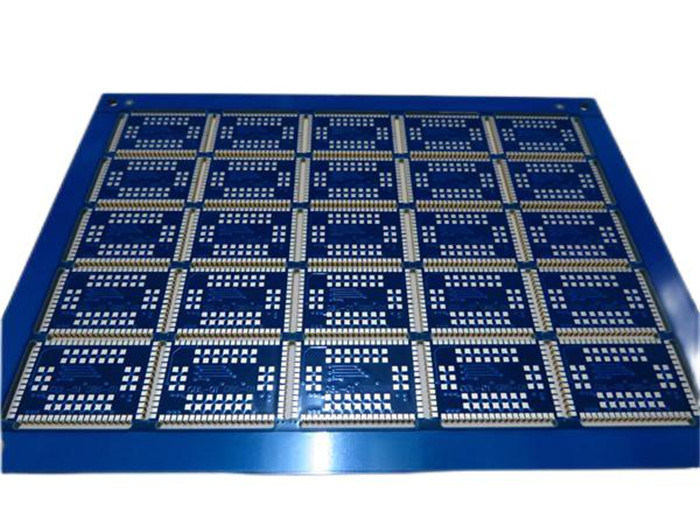

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask 2

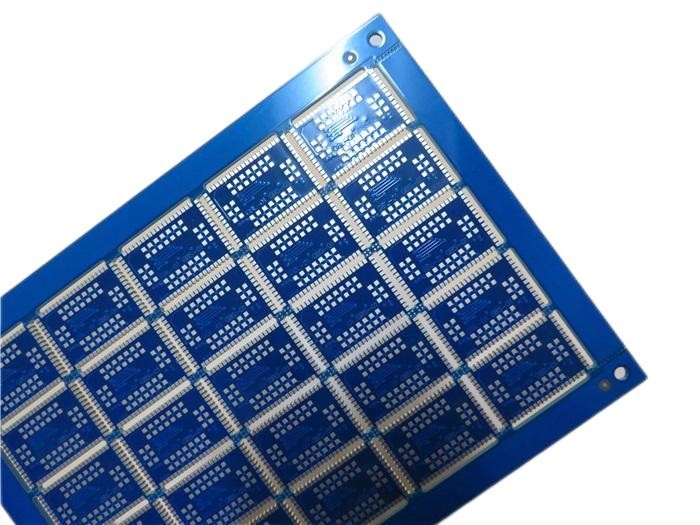

Edge Castellated PCB Half Holes Circuit Boards Built On 1.6mm FR-4 With Blue Solder Mask 3
