PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL

PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL

  • PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL
  • PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL
  • PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL
  • PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL
  • PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL
PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL
Product Details:
Place of Origin: China
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-453-V4.38
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 9.99-99.99
Packaging Details: Vacuum
Delivery Time: 10 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Board Material: FR-4 Board Thickness: 1.60 Mm +/-0.16
Surface Cu Thickness: 1OZ Surface Finish: HASL LF
Solder Mask Colour: Green Color Of Silkscreen: White
Function: 100% Pass Electrical Test

PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL.

(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)



1.1 General description

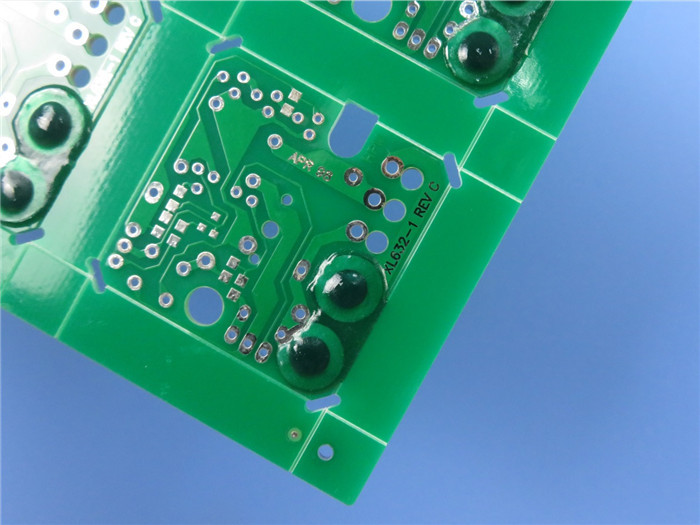

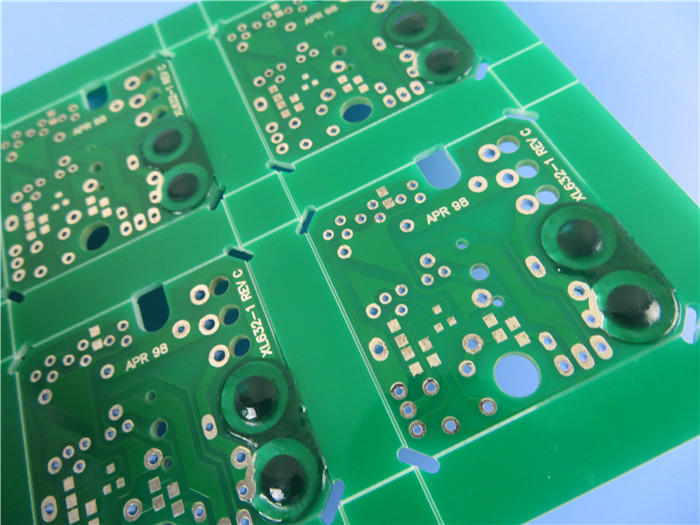

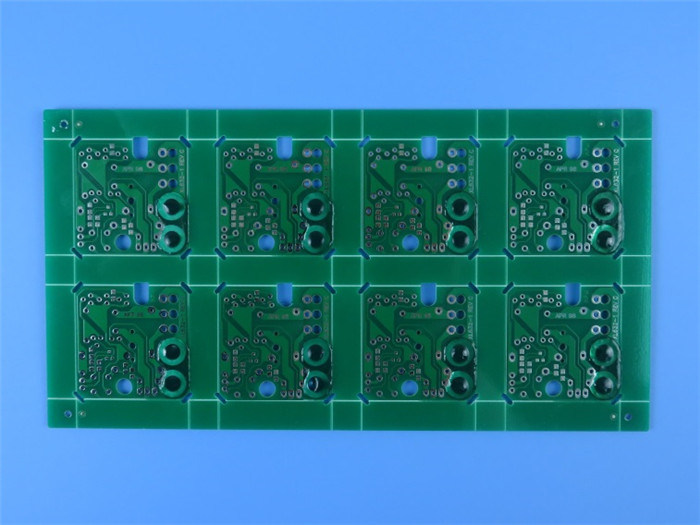

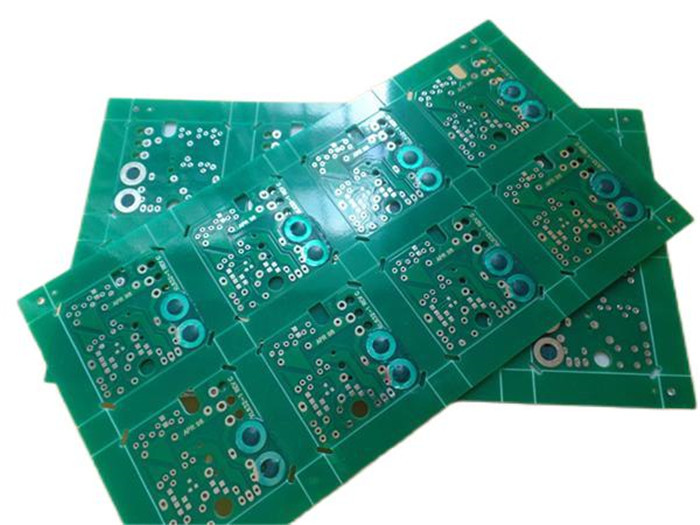

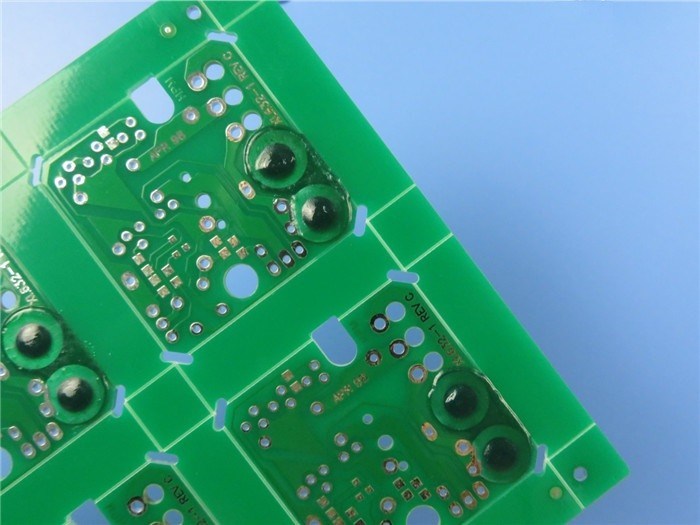

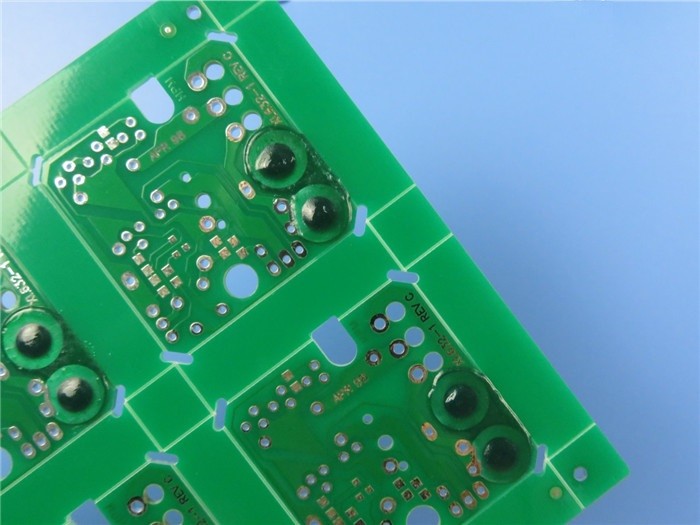

This is a type of 2 layers PCB board built on FR-4 Tg170 substrate for the application of 8 Port Switch. It's 1.6 mm thick with white silkscreen on green solder mask and HASL (pb free) on pads. The big pads on top layer are protected by Peelable masks. The base material is from ITEQ supplying 8 up boards per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.



1.2 Features and benefits

Industrial standard material with high Tg (175℃ by DSC) and excellent thermal reliability.

Excellent wetting during component soldering and it can avoid copper corrosion.

Electrical test and high voltage test

Powerful PCB capabilities support your reaearch and development, sales and marketing.

Quick Lead time: 3-5 days

Customer complaint rate: <1%



PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL 0



1.3 PCB Specifications

Number of Layers 2
Board Type Double Sided PCB
Board Size 146 x 96mm=8UP
Board Thickness 1.6 mm +/-0.16
Board Material FR-4
Board Material Supplier ITEQ
Tg Value of Board Material 170℃

PTH Cu thickness ≥20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Solder Mask Type and Model No. LPSM, PSR-2000GT600D, Peelable Mask
Solder Mask Supplier TAIYO
Solder Mask Colour Green
Number of Solder Masks 2
Thickness of Solder Mask 14 um

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Mininum Trace (mil) 11.5 mil
Minimum Gap(mil) 6 mil

Surface Finish Hot air soldering level (HASL)
RoHS Required Yes
Warpage 0.19%

Thermal Shock Test Pass, 288±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test Pass, 255±5℃,5 seconds Wetting Area Least 95%
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6012C Class 2
Drill table (mm) T1: 0.600
T2: 0.700
T3: 0.800
T4: 1.000
T5: 1.100
T6: 1.200
T7: 1.240
T8: 1.300
T9: 1.350
T10: 1.400



1.4 Applications

WiFi Router

Tracker GPS

Battery Led Lights

Electronics Components

Car Tracking

Scada Systems

GPS Transmitter

AC To DC Rectifier

AC To DC Converters

Test equipment



1.5 Manufacturing Process of Multi-layer PTH PCB (Peelable Mask)

(1). Material Shearing

(2). Inner Layer Dry Film

(3). Inner Layer Etching

(4). AOI 1

(5). Black Oxidation

(6). Milling Outline Frame

(7). Out Layer Drilling

(8). PTH

(9). Out Layer Dry Film

(10). Copper-tin Electro-Plating

(11). Peeling and Etching

(12). AOI 2

(13). Solder Mask

(14). Silkscreen Printing

(15). Surface Finishing

(16). Electrical Testing

(17). Profile Contouring

(18). Peelable Mask

(19). FQC

(20). Packaging

(21). Delivery



PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL 1

PCB with Peelable Mask Double Sided Circuit Board Built on Tg170 FR-4 Coating HASL 2
