TC600 Microwave PCB: Supercharging Thermal Management for High-Power RF Action


Hey there! Get ready to meet the TC600 laminate from Rogers, a PTFE-based composite that's all about turbocharging thermal management while giving those pesky dielectric and insertion losses the boot. In this blog post, we'll dive into the awesome properties of TC600 material, exploring its electrical, thermal, mechanical, and physical characteristics.


TC600 Typical Properties

Dielectric Constant: TC600 rocks a dielectric constant of 6.15 at 1.8 MHz (resonant cavity method) and 10 GHz (IPC TM-650 testing). That's some impressive electrical mojo!


Dissipation Factor: When it comes to loss, TC600 is a champ. With a dissipation factor of 0.0017 at 1.8 GHz and 0.002 at 10 GHz (IPC TM-650), it keeps those losses in check.


Temperature Coefficient of Dielectric Constant (TCDk): TC600's dielectric constant stays cool across a wide temperature range, thanks to its TCDk value of 75 ppm/ºC. No wild swings here!


Electrical Properties: TC600 is an electrifying performer! It has killer volume and surface resistivity, with an electrical strength of 850 Volts/mil or 34 Kv/mm. It laughs in the face of dielectric breakdown, handling a whopping 62 kilovolts. And when it comes to arc resistance, it's a marathon runner with over 240 seconds of endurance.


Thermal Properties: TC600 is a hotshot when it comes to thermal performance. It can take the heat with a decomposition temperature exceeding 512 °C. Plus, it's got serious staying power with time-to-delamination values (T260, T288, T300) all lasting over 60 minutes. Talk about reliability!

Mechanical Properties: TC600 is one tough cookie. It's got a peel strength of 10 lb/in, a Young's modulus of 280 kpsi, a flexural strength of 9.6 kpsi, and a tensile strength of 5.0 kpsi. It's built to withstand the toughest challenges.


Physical Properties: TC600 is cool, calm, and collected. It barely sips water with just 0.02% absorption. Its density is 2.9 g/cm³, and it's a thermal conductor with a Z-direction thermal conductivity of 1.1 W/mK. And hey, it's got a flammability rating of 94V0! Safety first.


PCB Capability (TC600)

We've got a whole lineup of TC600 PCB options that'll blow your mind. Whether you need a single-sided, double-sided, multilayer, or hybrid setup, we've got you covered. And we're not limited in thickness either. Choose from 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), or 60mil (1.524mm) to suit your fancy.


And hey, customization is the name of the game. We offer copper weights of 1oz (35µm) and 2oz (70µm) so you can dial in your design just right. Need some extra room? Our PCBs go up to ≤400mm X 500mm. There's plenty of space to play.


Want to add some personality? We've got solder mask colors to match your style—green, black, blue, yellow, red—you name it! And let's not forget the finish. Go for immersion gold, hot air soldering level (HASL), immersion silver, immersion tin, bare copper, OSP, pure gold plated, or whatever tickles your fancy.


A Piece of TC600 PCB

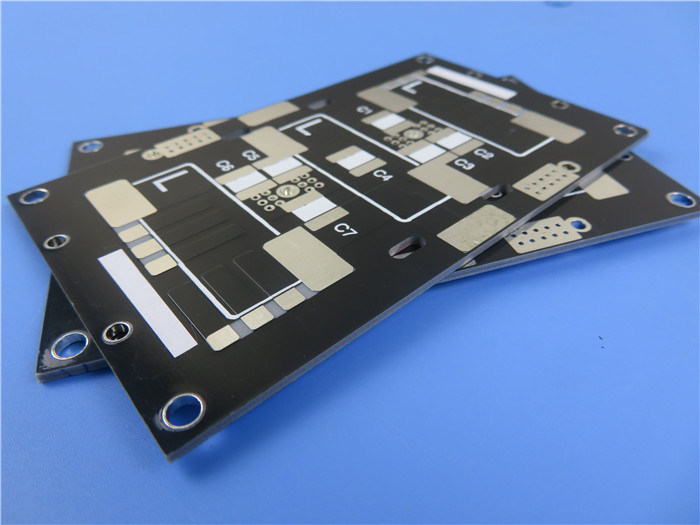

Check out this sweet 30mil TC600 microwave PCB. It's rockin' a bold blue solder mask and some slick immersion silver on the pads. It's as eye-catching as it is functional.



When it comes to high-power RF applications, TC600 PCBs are the stuff of legends. They're the secret sauce for optimizing thermal management and taking your performance to the next level.


With its killer combo of high thermal conductivity, low loss tangent, low coefficient of thermal expansion (CTE), and temperature phase stability, TC600 is a force to be reckoned with. It's the power boost your high-power applications have been waiting for.


So, whether you're rocking power amplifiers, filters, couplers, microwave combiners, power dividers, small footprint antennas, digital audio broadcasting (DAB) antennas, GPS systems, or handheld RFID reader antennas, TC600 PCBs have got your back.


Thanks for joining us on this wild ride. We hope you've enjoyed discovering the awesomeness of TC600, and we can't wait to share more mind-blowing insights with you in the future. Stay tuned!


PCB Capability (TC600)

Property Unit Value Test Method
1. Electrical Properties
Dielectric Constant (may vary by thickness)
@1.8 MHz - 6.15 Resonant Cavity
@10 GHz - 6.15 IPC TM-650
Dissipation Factor
@1.8 GHz - 0.0017 Resonant Cavity
@10 GHz - 0.002 IPC TM-650
Temperature Coefficient of Dielectric Constant: TCεr @ 10 GHz (-40-150°C) ppm/ºC -75 IPC TM-650
Volume Resistivity
C96/35/90 MΩ-cm 1.6x109 IPC TM-650
E24/125 MΩ-cm 2.4x108 IPC TM-650
Surface Resistivity
C96/35/90 3.1x109 IPC TM-650
E24/125 9.0x108 IPC TM-650
Electrical Strength Volts/mil (kV/mm) 850 (34) IPC TM-650
Dielectric Breakdown kV 62 IPC TM-650 2.5.6
Arc Resistance sec >240 IPC TM-650 2.5.1
2. Thermal Properties
Decomposition Temperature (Td)
Initial °C 512 IPC TM-650
5% °C 572 IPC TM-650
T260 min >60 IPC TM-650
T288 min >60 IPC TM-650
T300 min >60 IPC TM-650
Thermal Expansion, CTE (x,y) 50-150ºC ppm/ºC 9, 9 IPC TM-650 2.4.41
Thermal Expansion, CTE (z) 50-150ºC ppm/ºC 35 IPC TM-650 2.4.24
% z-axis Expansion (50-260ºC) % 1.5 IPC TM-650 2.4.24
3. Mechanical Properties
Peel Strength to Copper (1 oz/35 micron)
After Thermal Stress lb/in (N/mm) 10 (1.8) IPC TM-650 2.4.8
At Elevated Temperatures (150ºC) lb/in (N/mm) 10 (1.8) IPC TM-650
After Process Solutions lb/in (N/mm) 9 (1.6) IPC TM-650 2.4.8
Young’s Modulus kpsi (MPa) 280 (1930) IPC TM-650
Flexural Strength (Machine/Cross) kpsi (MPa) 9.60/9.30 (66/64) IPC TM-650 2.4.4
Tensile Strength (Machine/Cross) kpsi (MPa) 5.0/4.30 (34/30) IPC TM-650
Compressive Modulus kpsi (MPa)   ASTM D-3410
Poisson’s Ratio -   ASTM D-3039
4. Physical Properties
Water Absorption % 0.02 IPC TM-650
Density, ambient 23ºC g/cm3 2.9 ASTM D792 Method A
Thermal Conductivity (z-axis) W/mK 1.1 ASTM E1461
Thermal Conductivity (x, y) W/mK 1.4 ASTM E1461
Specific Heat J/gK 0.94 ASTM E1461
Flammability class V0 UL-94
NASA Outgassing, 125ºC, ≤10-6 torr
Total Mass Loss % 0.02 NASA SP-R-0022A
Collected Volatiles % 0 NASA SP-R-0022A
Water Vapor Recovered % 0 NASA SP-R-0022A
