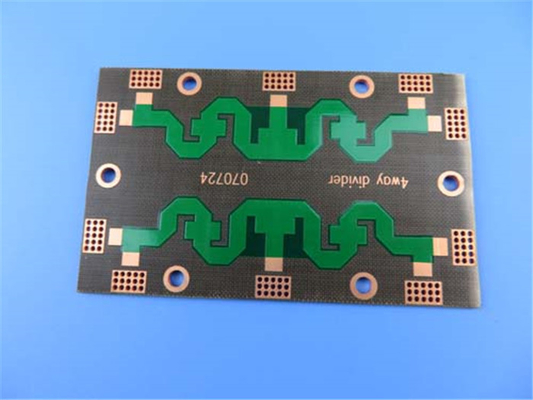

Wangling F4BM250 PCB Substrates 2-layer 30mil Positive ED copper foil

Wangling F4BM250 PCB Substrates 2-layer 30mil Positive ED copper foil

  • Wangling F4BM250 PCB Substrates 2-layer 30mil Positive ED copper foil
Wangling F4BM250 PCB Substrates 2-layer 30mil Positive ED copper foil
Product Details:
Place of Origin: CHINA
Brand Name: Bicheng Enterprise Limited
Certification: UL
Model Number: BIC-0290-V2.9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PIECE
Price: USD2 .99-7.99 per piece
Packaging Details: VACUUM
Delivery Time: 8-9 WORKING DAY
Payment Terms: T/T,Paypal
Supply Ability: 50000 PIECE PER MONTH
Contact Now
Detailed Product Description
Board Material: Polyimide 50 µm Board Thickness: 0.25 Mm
Surface/Inner Layer Cu Thickness: 35 µm Surface Finish: Immersion Gold
Coverlay Colour: Yellow Color Of Silkscreen: White
Function: 100% Pass Electrical Test Number Of Layers: 2

Introducing the Awesome Wangling F4BM250 PCB Substrates: Unleash the Beast of Performance and Cost Savings!



Hey there, tech enthusiasts! Get ready to have your minds blown by the incredible Wangling F4BM250 PTFE Fiberglass Positive ED copper foil PCB substrates. These bad boys are here to revolutionize the game with their mind-blowing features and endless possibilities.



Unstoppable Performance Features:

When it comes to performance, the Wangling F4BM250 PCB substrates are in a league of their own. Check out these mind-boggling features:



1. Insane Dielectric Properties:

These substrates rock a dielectric constant of 2.50 at 10 GHz/23°C and a ridiculously low loss tangent of 0.0012 at 10 GHz. Translation? Say goodbye to signal loss and hello to rock-solid signal integrity. Your high-frequency applications are about to reach new heights!



2. Tougher Than Hulk:
Wangling F4BM250 substrates are as strong as they come. With a peel strength that's off the charts at over 1.8 N/mm, these babies offer unmatched adhesion and durability. No matter what you throw at them, they'll stand tall and keep your electronic assemblies intact.



3. Moisture? No Sweat!
Moisture can be a buzzkill for electronics, but fear not! Wangling F4BM250 substrates laugh in the face of humidity with their moisture absorption rate of less than 0.08%. They'll maintain their electrical and mechanical properties even in the dampest conditions. Let the rain pour!



4. Thermal Resistance Like a Boss:
Hot temperatures got you sweating? Not a problem for the Wangling F4BM250 substrates. With their low coefficient of thermal expansion (CTE) of 20 ppm/°C in the X-axis, 25 ppm/°C in the Y-axis, and 187 ppm/°C in the Z-axis, they can handle the heat like a champ. No thermal stress-induced failures here!



Cost-Effective Awesomeness and Endless Possibilities:

Who says you can't have top-notch performance without breaking the bank? Wangling F4BM250 substrates give you the best of both worlds:



1. Thickness Options Galore:
Customization is key, my friends! These substrates offer a whole range of dielectric thicknesses. Choose the perfect thickness for your application, optimize material usage, and save those precious bucks. It's a win-win!



2. Sizes for Every Party:
Whether you're throwing a small-scale shindig or a massive production bash, the Wangling F4BM250 substrates have got your back. The 2-layer rigid PCB stackup, featuring copper layers of 35 μm and a thickness of 0.762 mm (30mil), is a cost-effective solution that fits all your project needs. Party on!



3. Easy-Peasy Availability:
No need to scour the ends of the earth for these substrates. Wangling F4BM250 is widely available worldwide. They've gone commercial, folks! So, manufacturers and designers from all corners of the globe can get their hands on these babies without any hassle. How convenient!



Endless Applications and Beyond:

The Wangling F4BM250 substrates are versatile little devils. They can work wonders in various industries. Here are just a few areas where they truly shine:



  • Microwave, RF, and Radar Systems: Get ready to rock the airwaves with unbeatable performance.
  • Phase Shifters and Passive Devices: Precision is the name of the game, and these substrates deliver.
  • Power Dividers, Couplers, and Combiners: Say hello to seamless integration and optimal power distribution.
  • Feed Networks and Phased Array Antennas: Boost your communication systems with top-notch connectivity.
  • Satellite Communication and Base Station Antennas: Establish a solid communication infrastructure that's out of this world.



Tech Support and Where to Party:

Got technical questions or need some support? Don't worry, we've got your back. Reach out to Sally Mao at sales@bichengpcb.com for all your Wangling F4BM250 PCB substrate needs. She'll hook you up with prompt and reliable assistance. Party on!



In a Nutshell:

Wangling F4BM250 PCB substrates are the ultimate combo of mind-blowing performance and cost savings. With their exceptional dielectric properties, Hulk-like strength, and resistance to the elements, they're about to take your high-frequency applications to a whole new level. Embrace the awesomeness of Wangling F4BM250 substrates and let your electronic designs shine like never before!
