Rogers TC600 PCB High Frequency Substrates, PTFE-based composite

Rogers TC600 PCB High Frequency Substrates, PTFE-based composite

  • Rogers TC600 PCB High Frequency Substrates, PTFE-based composite
Rogers TC600 PCB High Frequency Substrates, PTFE-based composite
Product Details:
Place of Origin: CHINA
Brand Name: Bicheng Enterprise Limited
Certification: UL
Model Number: BIC-0279-V2.79
Payment & Shipping Terms:
Minimum Order Quantity: 1 PIECE
Price: USD2 .99-6.99 per piece
Packaging Details: VACUUM
Delivery Time: 8-9 WORKING DAY
Payment Terms: T/T,Paypal
Supply Ability: 50000 PIECE PER MONTH
Contact Now
Detailed Product Description
Board Material: Polyimide 25µm Board Thickness: 0.15 Mm
Surface/Inner Layer Cu Thickness: 35 µm Surface Finish: Immersion Gold
Coverlay Colour: Yellow Color Of Silkscreen: White
Function: 100% Pass Electrical Test Number Of Layers: 1

Unleashing High Performance and Reliability: Rogers TC600 PCB Substrates


Welcome to the world of exceptional PCB substrates—Rogers TC600 woven fiberglass reinforced, ceramic filled, PTFE-based composites. These substrates are the epitome of excellence, offering a perfect balance of electrical performance, mechanical robustness, and affordability. Let's explore the outstanding features, construction details, typical applications, and contact information related to Rogers TC600 PCB substrates.


Experience Unmatched Electrical Performance:
Prepare to be captivated by the remarkable electrical characteristics of Rogers TC600 PCB substrates. With a DK of 6.15 at 1.8MHz and 10 GHz/23°C, these substrates ensure optimal signal integrity across a broad frequency range. The low dissipation factor of 0.0017 and 0.0020 at 1.8 and 10 GHz/23°C respectively guarantees minimal signal loss and maximized amplifier or antenna efficiency. Moreover, the TcDK of -75 ppm/°C ranging from -40 to 150°C ensures remarkable stability of the dielectric constant, even under extreme temperature conditions.


Unrivaled Mechanical Robustness and Reliability:
TC600 substrates boast extraordinary mechanical robustness, outperforming brittle laminates and standing strong against processing, impact, or high G forces. Say goodbye to fragility and welcome long-term performance and reliability. Additionally, the high peel strength of TC600 substrates ensures reliable narrow lines, elevating the overall quality of your PCB.


Affordability without Compromising Quality:
Rogers TC600 substrates offer an affordable solution for commercial applications while delivering uncompromising quality. You can now achieve high-quality PCBs without straining your budget. It's a win-win situation.


Precise Stackup Configuration for Optimal Performance:
For a 2-layer rigid PCB, the recommended stackup consists of a 1.524 mm (60mil) TC600 substrate sandwiched between two copper layers, each with a thickness of 35 μm. This precise stackup configuration guarantees optimal electrical performance and efficient signal transmission, leaving no room for compromise.


Unveiling Construction Details and PCB Statistics:

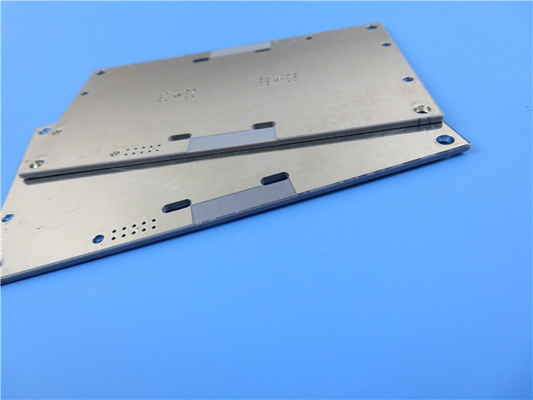

Immerse yourself in the world of precision and craftsmanship. The TC600 PCB substrate is meticulously integrated into a 141.5mm x 163mm board with a finished thickness of 1.6mm. The board features a minimum trace/space of 6/4 mils and a minimum hole size of 0.5mm. The surface finish dazzles with Immersion Gold, while the top solder mask proudly wears the color green. Each PCB undergoes a rigorous 100% electrical test before shipment, ensuring its quality and reliability.


Accessible Worldwide, Compliant with Industry Standards:
Rogers TC600 PCB substrates are within your reach, no matter where you are in the world. We prioritize accessibility, making it easier for you to harness their power. Rest assured, these substrates comply with IPC-Class-2 standards, guaranteeing consistent quality and adherence to industry benchmarks.


Unleashing Possibilities: Typical Applications:
Unleash the full potential of TC600 substrates across a wide range of applications. From power amplifiers, filters, and couplers to microwave combiner and power divider boards in avionics applications, small footprint antennas, and digital audio broadcasting (DAB) antennas, TC600 substrates are the perfect fit. They are also ideal for GPS and hand-held RFID reader antennas. Embrace the possibilities and let your designs soar to new heights.


Contact Information:
If you have any technical inquiries or questions, our dedicated expert Sally is here to assist you. Reach out to Sally at, and she will provide you with the information you need to unlock the true potential of Rogers TC600 PCB substrates.


Rogers TC600 PCB substrates redefine what it means to achieve high performance and reliability. With their exceptional electrical characteristics, mechanical robustness, and affordability, TC600 substrates are the ultimate choice for your PCB projects. Experience the difference and elevate your designs to new levels of excellence.
