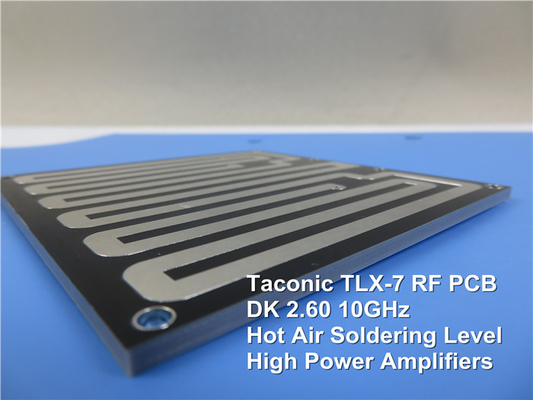

Taconic TLX-7 Laminates PCB 2-layer 20mil

TLX-7: Unleashing Reliability and Performance in RF Applications

Welcome to the world of TLX-7, the revolutionary high-volume antenna material that sets new standards for reliability and performance in RF applications. With its cutting-edge PTFE fiberglass laminates and copper cladding, TLX-7 offers unmatched versatility, empowering engineers to overcome challenges across a wide range of RF environments. In this comprehensive blog post, we will explore the exceptional features, diverse benefits, and real-world applications of TLX-7.

Unparalleled Benefits:

1. Superior PIM Values: TLX-7 achieves outstanding passive intermodulation (PIM) values, measuring below the remarkable threshold of -160 dBc*. This exceptional performance ensures minimal signal distortion and maximizes the efficiency of RF systems, guaranteeing seamless communication.
2. Robust Mechanical & Thermal Properties: TLX-7 boasts exceptional mechanical strength and thermal resilience, making it the ideal choice for demanding environments. It can withstand high levels of vibration during space launches and endure extreme temperatures in engine modules, ensuring reliable performance under harsh conditions.
3. Consistent Dielectric Constant (Dk): TLX-7 maintains a low and stable dielectric constant, with a Dk of 2.6 +/-0.04 at 10 GHz. This characteristic ensures precise impedance control, signal integrity, and reliable performance in microwave designs, enabling engineers to achieve optimal RF system performance.
4. Moisture Resistance: With a mere 0.02% moisture absorption, as certified by IPC-650 2.6.2.1, TLX-7 exhibits exceptional resistance to moisture-induced performance degradation. This property ensures consistent electrical properties and reliable RF performance, even in humid environments.
5. Wide Temperature Range Compatibility: TLX-7 is engineered to thrive across a wide temperature range, making it suitable for various applications. From altimeter substrates in flights to environments subjected to extreme temperature fluctuations, TLX-7 delivers exceptional performance and stability.
6. Stringent Safety Standards: TLX-7 proudly carries the UL 94 V0 rating, demonstrating its outstanding flame resistance. This certification ensures that TLX-7 meets rigorous safety standards, making it a reliable choice for applications where safety is critical.

Real-World Applications:

1. Radar Systems: TLX-7 excels in radar systems, providing exceptional RF performance and reliability in challenging environments.
2. Mobile Communications: TLX-7 enables seamless connectivity and reliable signal transmission and reception in mobile communication devices, ensuring uninterrupted communication in the fast-paced world of wireless communications.
3. Microwave Test Equipment: TLX-7's low loss characteristics and stable dielectric constant make it an excellent choice for high-frequency test equipment. It enables engineers to achieve precise and accurate measurements, ensuring the reliability and performance of the equipment.
4. Microwave Transmission Devices: TLX-7 is trusted in the design of couplers, splitters, combiners, amplifiers, and antennas. Its exceptional RF properties ensure reliable performance and signal integrity in various transmission devices.
5. Conclusion:
6. TLX-7 stands as a game-changing solution in the realm of RF applications, providing unparalleled reliability and performance. Its exceptional electrical, mechanical, and thermal properties make it the material of choice for engineers seeking optimal RF system performance. With TLX-7, you can overcome challenges, deliver exceptional results, and unlock new possibilities in the world of RF technology.
